NHP160V-FXXRB (2018)
Toyota Probox/Succeed
(1812- )1NZFXE

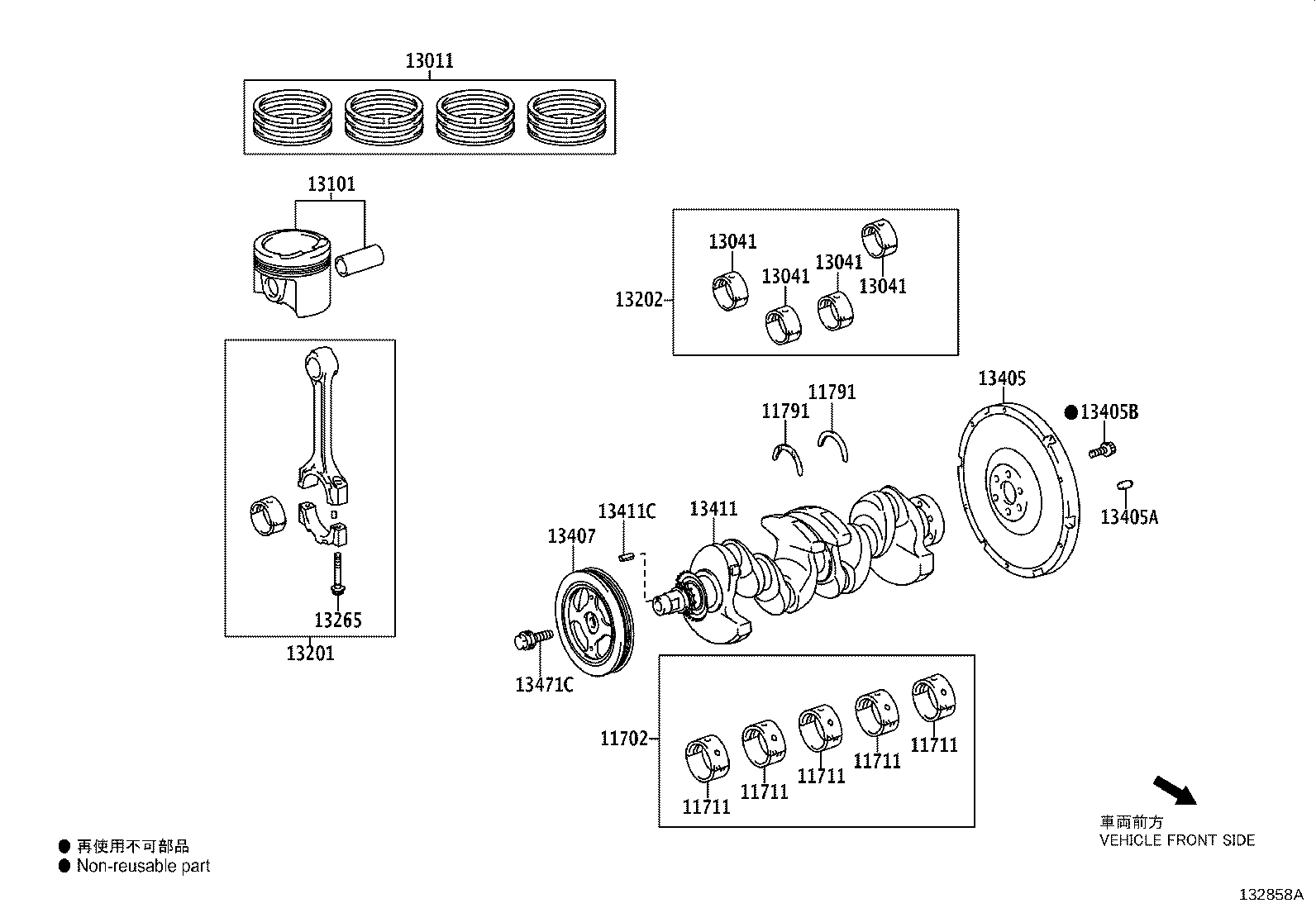

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-21050 |
1NZFXE..NHP160..SUCD U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2105003 |
1NZFXE..NHP160..SUCD MARK 3,修理書参照 |
5 | ||
| 11701-2105002 |
1NZFXE..NHP160..SUCD MARK 2,修理書参照 |
5 | ||
| 11701-2105001 |
1NZFXE..NHP160..SUCD MARK 1,修理書参照 |
5 | ||
| 11701-2105004 |
1NZFXE..NHP160..SUCD MARK 4,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2105003 |
1NZFXE..NHP160..SUCD MARK 3,修理書参照 |
5 | ||
| 11701-2105002 |
1NZFXE..NHP160..SUCD MARK 2,修理書参照 |
5 | ||
| 11701-2105001 |
1NZFXE..NHP160..SUCD MARK 1,修理書参照 |
5 | ||
| 11701-2105004 |
1NZFXE..NHP160..SUCD MARK 4,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2105003 |
1NZFXE..NHP160..SUCD MARK 3,修理書参照 |
5 | ||
| 11701-2105002 |
1NZFXE..NHP160..SUCD MARK 2,修理書参照 |
5 | ||
| 11701-2105001 |
1NZFXE..NHP160..SUCD MARK 1,修理書参照 |
5 | ||
| 11701-2105004 |
1NZFXE..NHP160..SUCD MARK 4,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2105003 |
1NZFXE..NHP160..SUCD MARK 3,修理書参照 |
5 | ||
| 11701-2105002 |
1NZFXE..NHP160..SUCD MARK 2,修理書参照 |
5 | ||
| 11701-2105001 |
1NZFXE..NHP160..SUCD MARK 1,修理書参照 |
5 | ||
| 11701-2105004 |
1NZFXE..NHP160..SUCD MARK 4,修理書参照 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2105003 |
1NZFXE..NHP160..SUCD MARK 3,修理書参照 |
5 | ||
| 11701-2105002 |
1NZFXE..NHP160..SUCD MARK 2,修理書参照 |
5 | ||
| 11701-2105001 |
1NZFXE..NHP160..SUCD MARK 1,修理書参照 |
5 | ||
| 11701-2105004 |
1NZFXE..NHP160..SUCD MARK 4,修理書参照 |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-37010 |
1NZ#..NCP16#,NHP160..SUCD STD |
2 | ||
| 11793-37010 |
1NZ#..NCP16#,NHP160..SUCD O/S 0.25 |
2 | ||
| 11792-37010 |
1NZ#..NCP16#,NHP160..SUCD O/S 0.125 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-37010 |
1NZ#..NCP16#,NHP160..SUCD STD |
2 | ||
| 11793-37010 |
1NZ#..NCP16#,NHP160..SUCD O/S 0.25 |
2 | ||
| 11792-37010 |
1NZ#..NCP16#,NHP160..SUCD O/S 0.125 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-21160 |
1NZFXE..NHP160..SUCD STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2103302 |
1NZ#..NCP16#,NHP160..SUCD MARK 2,修理書参照 |
4 | ||
| 13041-2103303 |
1NZ#..NCP16#,NHP160..SUCD MARK 3,修理書参照 |
4 | ||
| 13041-2103301 |
1NZ#..NCP16#,NHP160..SUCD MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2103302 |
1NZ#..NCP16#,NHP160..SUCD MARK 2,修理書参照 |
4 | ||
| 13041-2103303 |
1NZ#..NCP16#,NHP160..SUCD MARK 3,修理書参照 |
4 | ||
| 13041-2103301 |
1NZ#..NCP16#,NHP160..SUCD MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2103302 |
1NZ#..NCP16#,NHP160..SUCD MARK 2,修理書参照 |
4 | ||
| 13041-2103303 |
1NZ#..NCP16#,NHP160..SUCD MARK 3,修理書参照 |
4 | ||
| 13041-2103301 |
1NZ#..NCP16#,NHP160..SUCD MARK 1,修理書参照 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2103302 |
1NZ#..NCP16#,NHP160..SUCD MARK 2,修理書参照 |
4 | ||
| 13041-2103303 |
1NZ#..NCP16#,NHP160..SUCD MARK 3,修理書参照 |
4 | ||
| 13041-2103301 |
1NZ#..NCP16#,NHP160..SUCD MARK 1,修理書参照 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-21180 |
1NZFXE..NHP160..SUCD STD |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-21033 |
1NZ#..NCP16#,NHP160..SUCD U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1NZ#..NCP16#,NHP160..SUCD |
8 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-21070 |
1NZFXE..NHP160..SUCD |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-21020 |
1NZ#..NCP165,NHP160..SUCD |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12345 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
