NHP160V-FXXRB (2018)
Toyota Probox/Succeed
Production
Dec 2018
-
Jul 2020
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

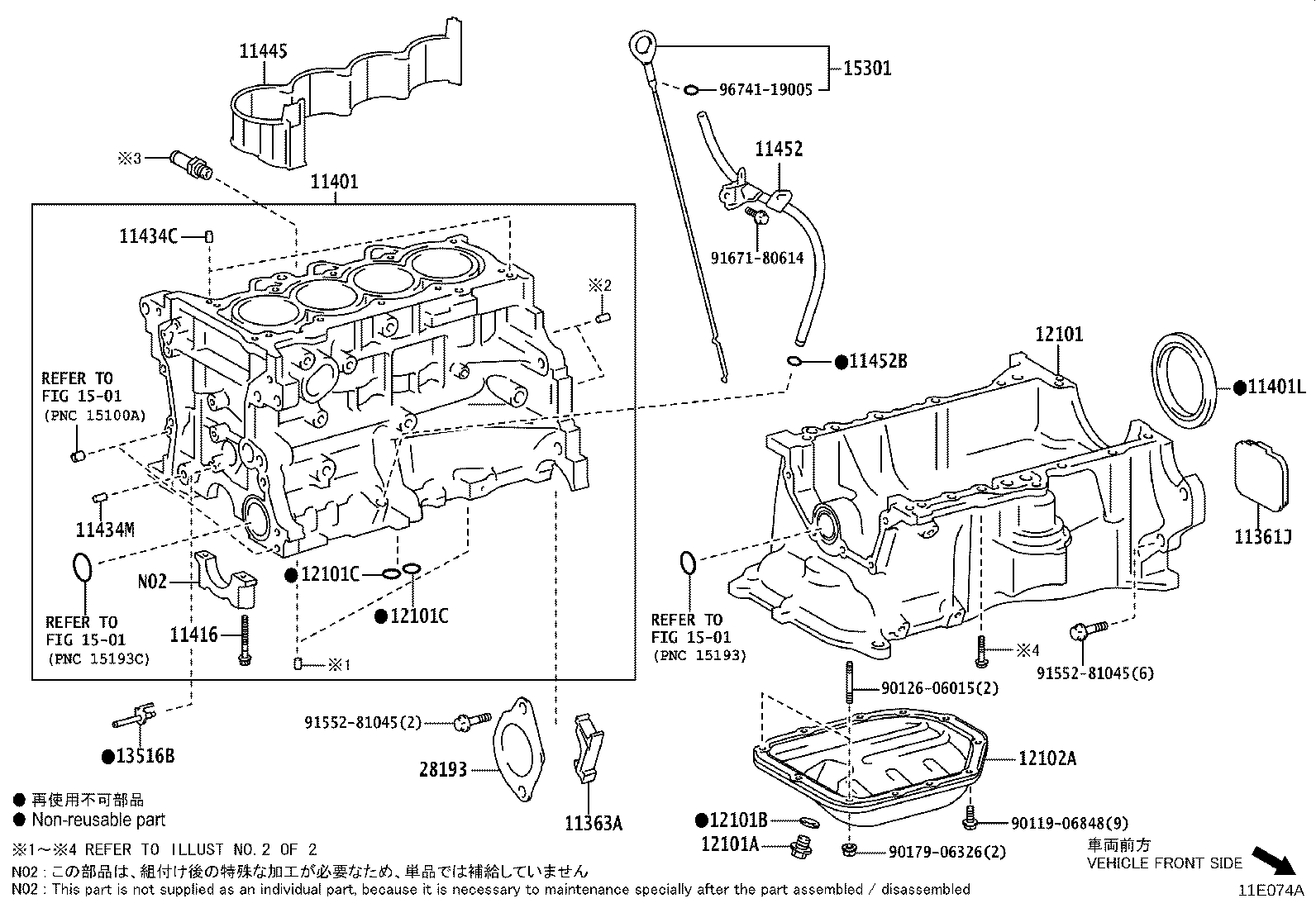

ILLUST NO. 1 OF 2(1812- )1NZFXE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-21011 |
1NZ#..NCP16#,NHP160 |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-21020 |
1NZFXE..NHP160 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-80883 |
1NZFXE..NHP160..SUCD |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02125 |
1NZ#..NCP16#,NHP160 |
10 | ||
| 90910-02207 |
1NZ#..NCP16#,NHP160..SUCD |
10 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1NZ#..NCP16#,NHP160..SUCD 長さ=18,外径=8 |
2 | ||
| 11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER) | ||||
| 90250-10030 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-21010 |
1NZFXE..NHP160..SUCD |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-21060 |
1NZFXE..NHP160..SUCD |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 96722-24020 |
1NZ#..NCP16#,NHP160..SUCD |
2 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 96722-24020 |
1NZ#..NCP16#,NHP160..SUCD |
2 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-21010 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 13516B - JET, OIL | ||||
| 13516-21011 |
1NZ#..NCP16#,NHP160..SUCD |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-21051 |
1NZFXE..NHP160..SUCD |
1 | ||
| 28193 - INSULATOR, STARTER HOLE | ||||
| 28193-21020 |
1NZFXE..NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90119-06848 | ||||
| 90126-06015 | ||||
| 90179-06326 | ||||
| 91552-81045 | ||||
| 91671-80614 | ||||
| 96741-19005 | ||||
| Linked diagrams | ||||
| 1501 | ||||

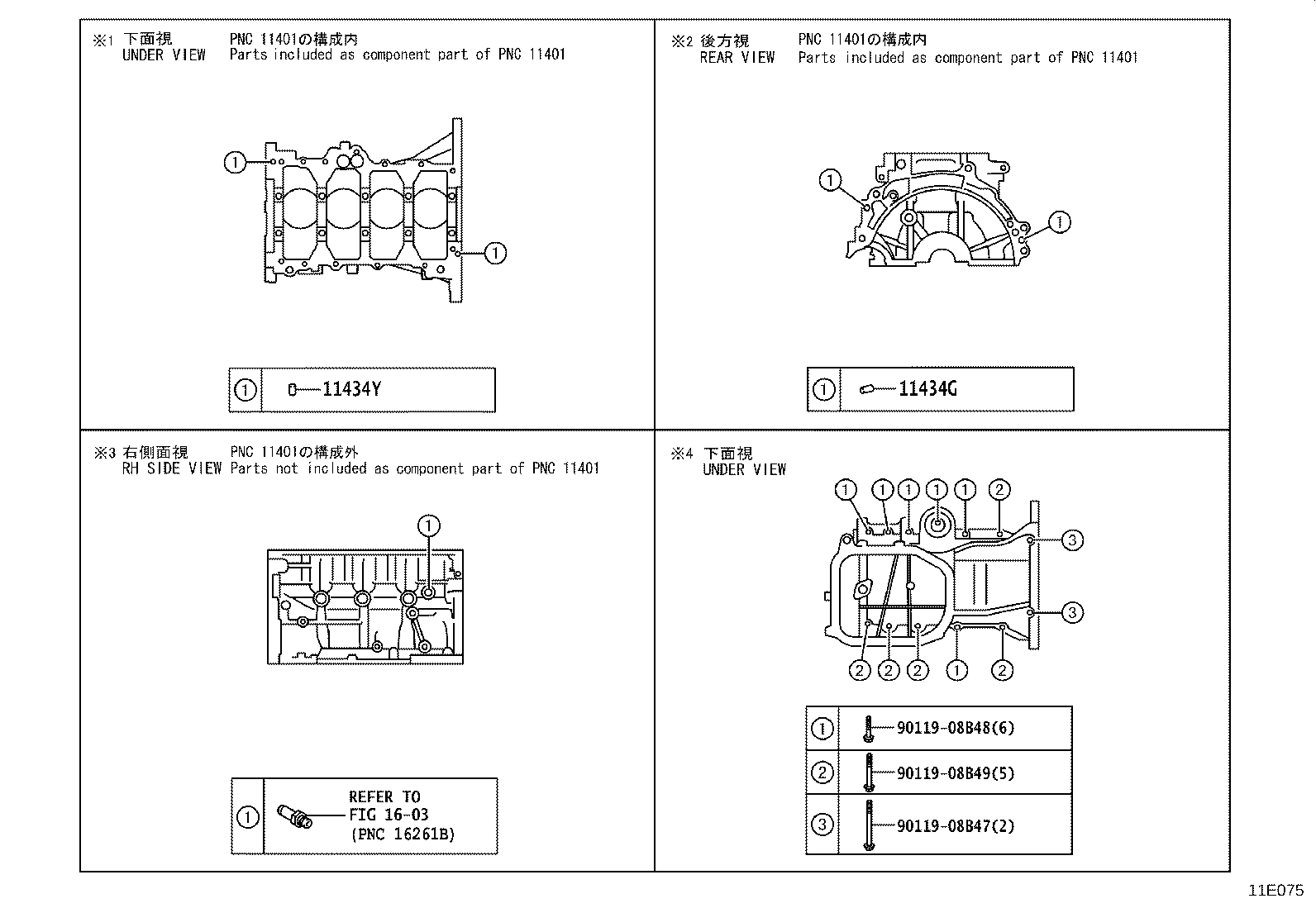

ILLUST NO. 2 OF 2(1812- )1NZFXE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
1NZ#..NCP16#,NHP160..SUCD |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
1NZ#..NCP16#,NHP160..SUCD |
2 | ||
| Common parts | ||||
| 90119-08B47 | ||||
| 90119-08B48 | ||||
| 90119-08B49 | ||||
| Linked diagrams | ||||
| 1603 | ||||
