NHP160V-EXXGB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Sep 9999
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

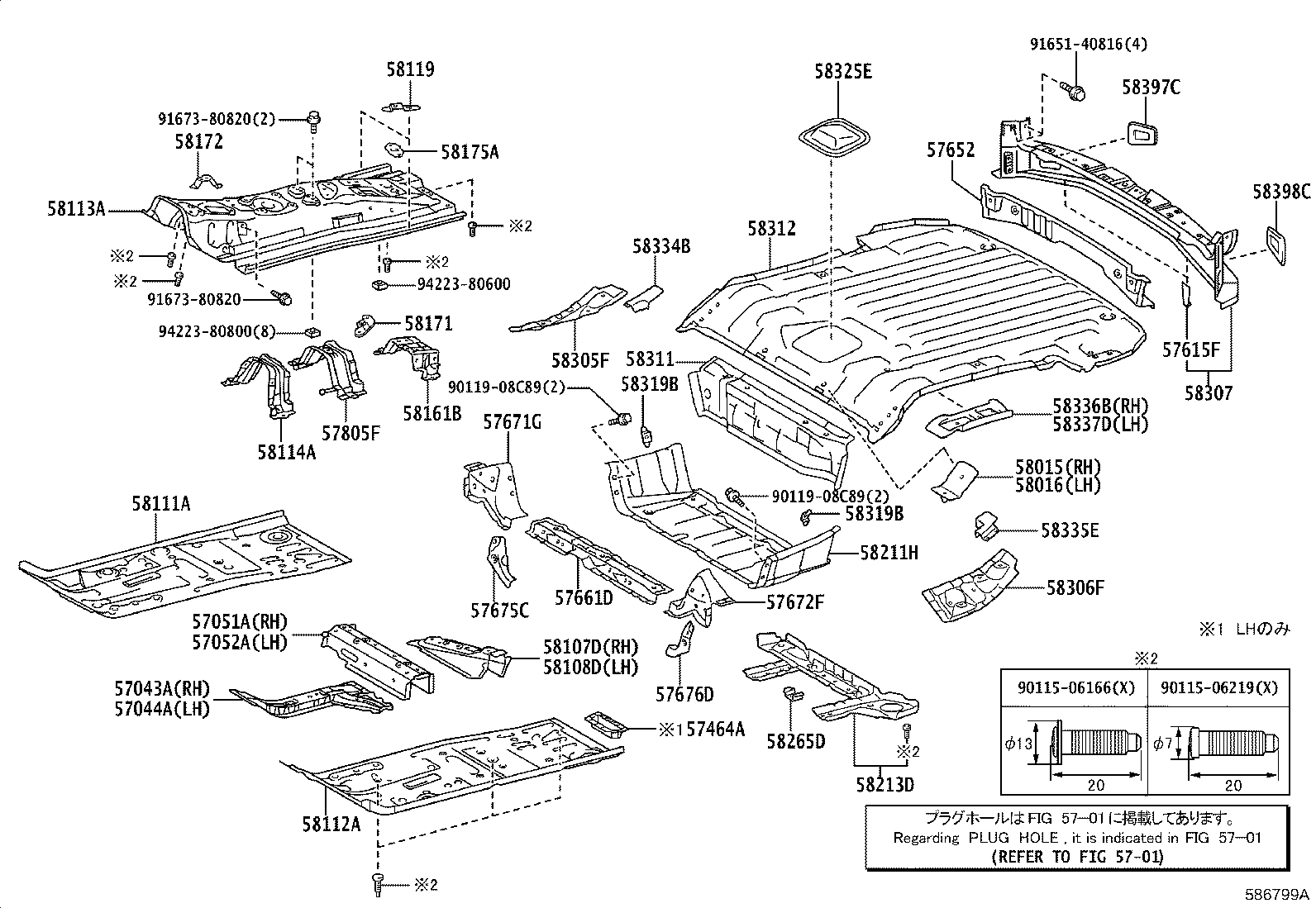

Click highlighted areas on diagram

diagram 5701 57043A 57044A 57051A 57052A 57464A 57615F 57652 57661D 57671G 57672F 57675C 57676D 57805F 58015 58016 58107D 58108D 58111A 58112A 58113A 58114A 58119 58161B 58171 58172 58175A 58211H 58213D 58265D 58305F 58306F 58307 58311 58312 58319B 58319B 58325E 58334B 58335E 58336B 58337D 58397C 58398C 9011506166 9011506219 9011908C89 9011908C89 9165140816 9167380820 9167380820 9422380600 9422380800
Part # Description Qty Price
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-52070

NHP160..PROB

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-52060

NHP160..PROB

 1
57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57464-52070

NHP160..PROB

 1
57615F - BRACKET, REAR BUMPER MOUNTING
52185-52050

NCP16#,NHP160,NSP160..PROB

 2
57652 - CROSSMEMBER, REAR FLOOR, NO.2
57659-52050

NCP16#,NHP160,NSP160..PROB

 1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57661-52170

NHP160..PROB

 1
57671G - MEMBER, REAR FLOOR CROSS, NO.1 RH
57671-52170

NHP160..PROB

 1
57672F - MEMBER, REAR FLOOR CROSS, NO.1 LH
57672-52180

NHP160..PROB

 1
57675C - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH
57675-52040

NHP160..PROB

 1
57676D - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH
57676-52040

NHP160..PROB

 1
57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57805-52131

NHP160..PROB

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-52060

NHP160..PROB

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58015-52060

NHP160..PROB

 1
58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58107-52020

NCP16#,NHP160,NSP160..PROB

 1
58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58108-52020

NCP16#,NHP160,NSP160..PROB

 1
58111A - PAN, FRONT FLOOR, RH
58111-52260

NCP16#,NHP160,NSP160..PROB

 1
58112A - PANEL, FRONT FLOOR, LH
58112-52927

NHP160..PROB

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-52927

NHP160..PROB

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-52071

NHP160..PROB

 1
58119 - PLATE, FRONT FLOOR SIDE, FRONT
58119-52040

NHP160..PROB

 2
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-52070

NHP160..PROB

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-52090

NHP160..PROB

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-52020

NHP160..PROB

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-52020

NCP16#,NHP160,NSP160..PROB

 1
58211H - PAN, CENTER FLOOR
58211-52913

NHP160..PROB

 1
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58203-52120

NHP160..PROB

 1
58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2
58265-52020

NHP160..PROB

 1
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-52070

NHP160..PROB

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-52120

NHP160..PROB

 1
58311 - PAN, REAR FLOOR
58311-52280

NHP160..PROB

 1
58312 - PANEL, REAR BODY FLOOR, NO.1
58312-52030

NHP160..PROB

 1
58319B - BRACKET, REAR FLOOR SIDE PANEL
58319-52030

NHP160..PROB

 2
58319B - BRACKET, REAR FLOOR SIDE PANEL
58319-52030

NHP160..PROB

 2
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-52110

NHP160..PROB

 1
58334B - PLATE, REAR FLOOR CROSSMEMBER, CENTER RH
58334-52040

NHP160..PROB

 1
58335E - PLATE, REAR FLOOR CROSSMEMBER, CENTER LH
58335-52030

NHP160..PROB

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-52010

NCP16#,NHP160,NSP160..PROB

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-52010

NCP16#,NHP160,NSP160..PROB

 1
58397C - COVER, BODY LOWER BACK, RH
58397-52030

NCP16#,NHP160,NSP160..PROB

 1
58398C - COVER, BODY LOWER BACK, LH
58398-52020

NCP16#,NHP160,NSP160..PROB

 1
Common parts
90115-06166
90115-06219
90119-08C89
91651-40816
91673-80820
94223-80600
94223-80800
Linked diagrams
5701
