NHP160V-EXXDB (2018)

Toyota Probox/Succeed

Production Dec 2018 - Sep 9999
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )NHP160

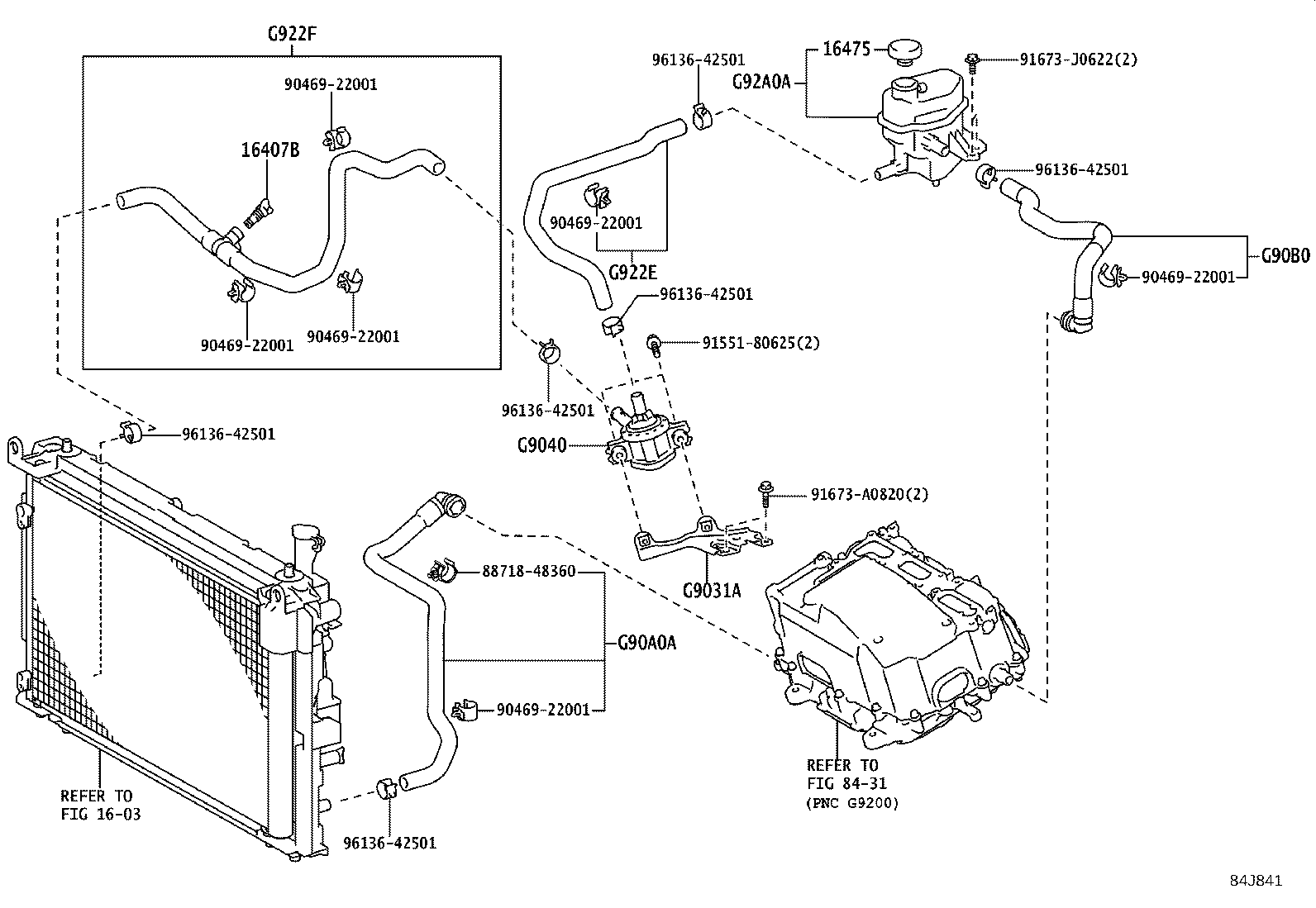

Click highlighted areas on diagram

diagram 1603 16407B 16475 8431 8871848360 9046922001 9046922001 9046922001 9046922001 9046922001 9046922001 9155180625 91673A0820 91673J0622 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 G9031A G9040 G90A0A G90B0 G922E G922F G92A0A
Part # Description Qty Price
16407B - COCK SUB-ASSY, RADIATOR DRAIN
16407-64010

1NZFXE..NHP160..PROB

 1
16475 - CAP, RESERVE TANK
16475-28140

1NZFXE..NHP160..PROB

 1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9141-52020

NHP160..PROB

 1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-52020

NHP160..PROB

 1
G90A0A - HOSE ASSY, INVERTER COOLING, NO.1
G90A0-52040

NHP160..PROB

 1
G90B0 - HOSE ASSY, INVERTER COOLING, NO.2
G90B0-52010

NHP160..PROB

 1
G922E - HOSE, HYBRID WATER PUMP INLET
G922E-52010

NHP160..PROB

 1
G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1
G922F-52010

NHP160..PROB

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G92A0-52011

NHP160..PROB

 1
Common parts
88718-48360
90469-22001
91551-80625
91673-A0820
91673-J0622
96136-42501
Linked diagrams
1603
8431
