NCP59G-FWPLK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Oct 2013
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

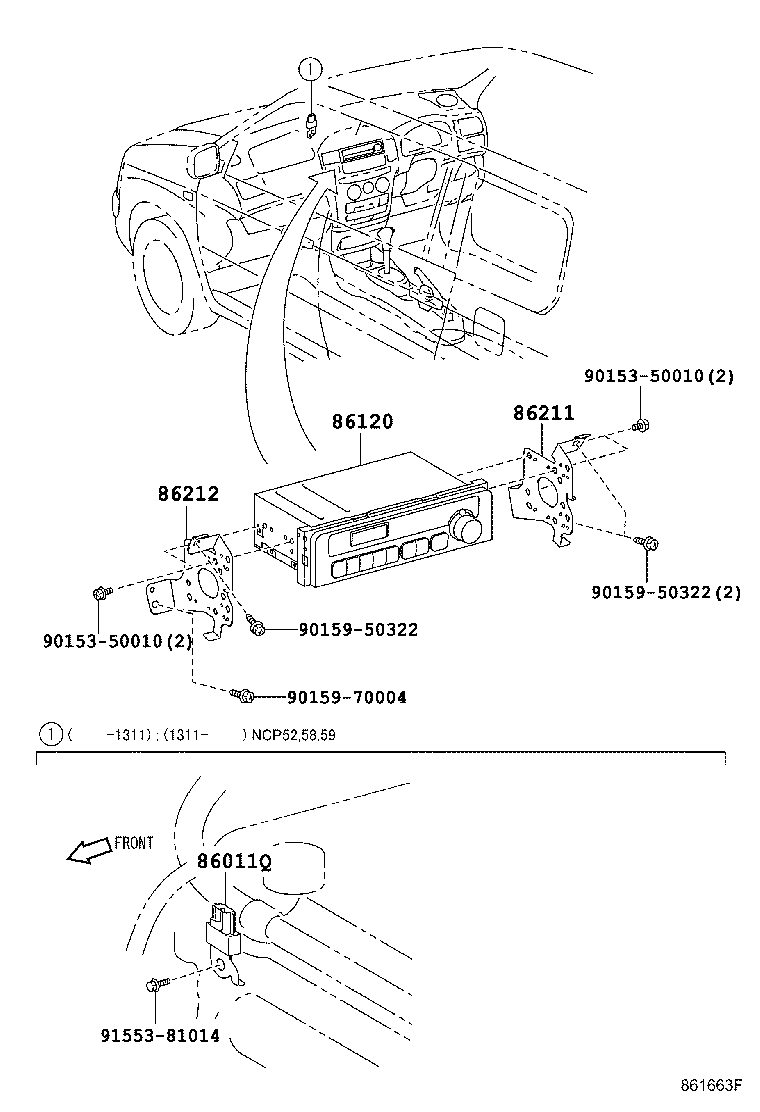

ILLUST NO. 1 OF 2(0206- )

Click highlighted areas on diagram

diagram 86011Q 86120 86211 86212 9015350010 9015350010 9015950322 9015950322 9015970004 9155381014
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04141

NCP5#

 1
86120 - RECEIVER ASSY, RADIO
86120-52041

NCP5#,NLP51..DX,DXJ,F,TX,U

MATSUSHITA,ID=50207,ｵｰﾃﾞｨｵ−AM/FM 2ｽﾋﾟｰｶ

 1
86120-52041

NCP5#,NLP51..DX,F,TX,U

MATSUSHITA,ID=50207

 1
86120-52041

NCP5#,NLP51..DX,F,TX,U

MATSUSHITA,ID=50207,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86120-52150

NCP5#,NLP51..DX,DXJ,F,TX,U

FUJITSU TEN,ID=10105,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86120-52150

NCP5#,NLP51..DX,DXJ,F,TX,U

FUJITSU TEN,ID=10105,ﾀｲﾌﾟ B:ｲﾗｽﾄｻﾝｼｮｳ

 1
86120-52041

NCP5#,NLP51..DX,DXJ,F,TX,U

MATSUSHITA,ID=50207,ﾀｲﾌﾟ A:ｲﾗｽﾄｻﾝｼｮｳ

 1
86120-52041

NCP5#,NLP51..DX,F,TX,U

MATSUSHITA,ID=50207,ﾀｲﾌﾟ A:ｲﾗｽﾄｻﾝｼｮｳ

 1
86120-52150

NCP5#,NLP51..DX,DXJ,F,TX,U

FUJITSU TEN,ID=10105

 1
86211 - BRACKET, RADIO, NO.1
86211-52230

NCP5#,NLP51

 1
86211-52070

NCP5#,NLP51

 1
86212 - BRACKET, RADIO, NO.2
86212-52070

NCP5#,NLP51

 1
86212-52240

NCP5#,NLP51

 1
Common parts
90153-50010
90159-50322
90159-70004
91553-81014

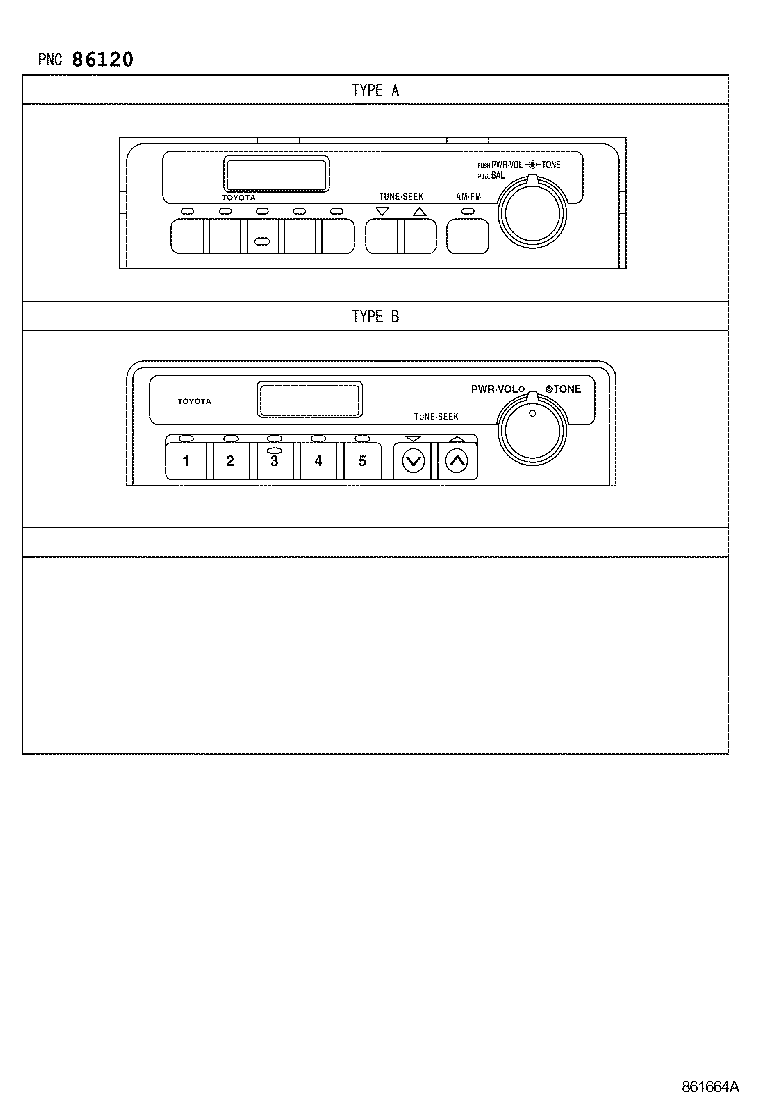

ILLUST NO. 2 OF 2(0206- )

Click highlighted areas on diagram

diagram 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-52041

NCP5#,NLP51..DX,DXJ,F,TX,U

MATSUSHITA,ID=50207,ｵｰﾃﾞｨｵ−AM/FM 2ｽﾋﾟｰｶ

 1
86120-52041

NCP5#,NLP51..DX,F,TX,U

MATSUSHITA,ID=50207

 1
86120-52041

NCP5#,NLP51..DX,F,TX,U

MATSUSHITA,ID=50207,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86120-52150

NCP5#,NLP51..DX,DXJ,F,TX,U

FUJITSU TEN,ID=10105,ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86120-52150

NCP5#,NLP51..DX,DXJ,F,TX,U

FUJITSU TEN,ID=10105,ﾀｲﾌﾟ B:ｲﾗｽﾄｻﾝｼｮｳ

 1
86120-52041

NCP5#,NLP51..DX,DXJ,F,TX,U

MATSUSHITA,ID=50207,ﾀｲﾌﾟ A:ｲﾗｽﾄｻﾝｼｮｳ

 1
86120-52041

NCP5#,NLP51..DX,F,TX,U

MATSUSHITA,ID=50207,ﾀｲﾌﾟ A:ｲﾗｽﾄｻﾝｼｮｳ

 1
86120-52150

NCP5#,NLP51..DX,DXJ,F,TX,U

FUJITSU TEN,ID=10105

 1
