NCP59G-FWPLK (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Oct 2013
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

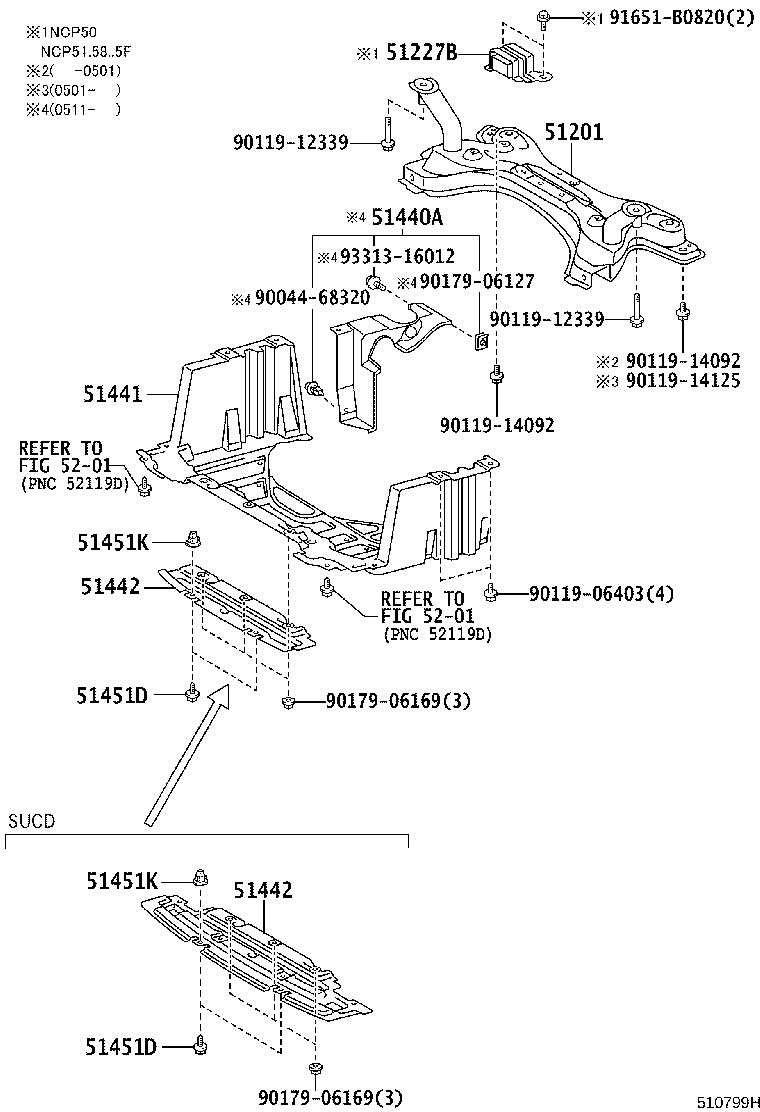

(0206-0606)NCP5#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52022 |
NCP55,59 |
1 | ||
| 51201-52023 |
NCP55,59 |
1 | ||
| 51201-52021 |
NCP55,59 |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52020 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-52100 |
NCP5#..4FC |
1 | ||
| 51410-52040 |
NCP5#..4FC 寒冷地仕様 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-52060 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-52060 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60431 |
NCP5#,NLP51 |
2 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60431 |
NCP5#,NLP51 |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP5#,NLP51 |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP5#,NLP51 |
2 | ||
| Common parts | ||||
| 90044-68320 | ||||
| 90119-06403 | ||||
| 90119-12339 | ||||
| 90119-14092 | ||||
| 90119-14125 | ||||
| 90179-06127 | ||||
| 90179-06169 | ||||
| 91651-B0820 | ||||
| 93313-16012 | ||||
| Linked diagrams | ||||
| 5201 | ||||

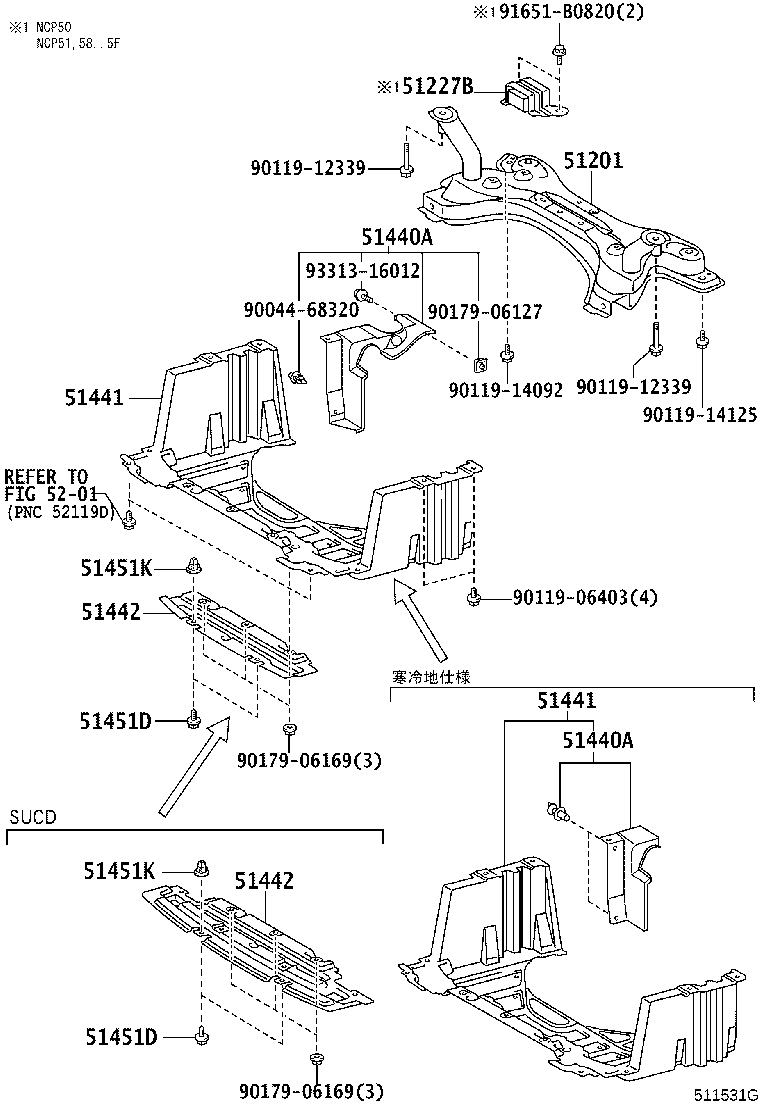

(0606- )NCP5#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52022 |
NCP55,59 |
1 | ||
| 51201-52023 |
NCP55,59 |
1 | ||
| 51201-52021 |
NCP55,59 |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52020 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 51440A - COVER ASSY, ENGINE UNDER | ||||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52010 |
NCP5#,NLP51 |
1 | ||
| 51440-52020 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-52100 |
NCP5#..4FC |
1 | ||
| 51410-52040 |
NCP5#..4FC 寒冷地仕様 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-52100 |
NCP5#..4FC |
1 | ||
| 51410-52040 |
NCP5#..4FC 寒冷地仕様 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-52060 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-52060 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60431 |
NCP5#,NLP51 |
2 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60431 |
NCP5#,NLP51 |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP5#,NLP51 |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP5#,NLP51 |
2 | ||
| Common parts | ||||
| 90044-68320 | ||||
| 90119-06403 | ||||
| 90119-12339 | ||||
| 90119-14092 | ||||
| 90119-14125 | ||||
| 90179-06127 | ||||
| 90179-06169 | ||||
| 91651-B0820 | ||||
| 93313-16012 | ||||
| Linked diagrams | ||||
| 5201 | ||||
