NCP59G-FWPLK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Oct 2013
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )NCP50,51,55,58,59

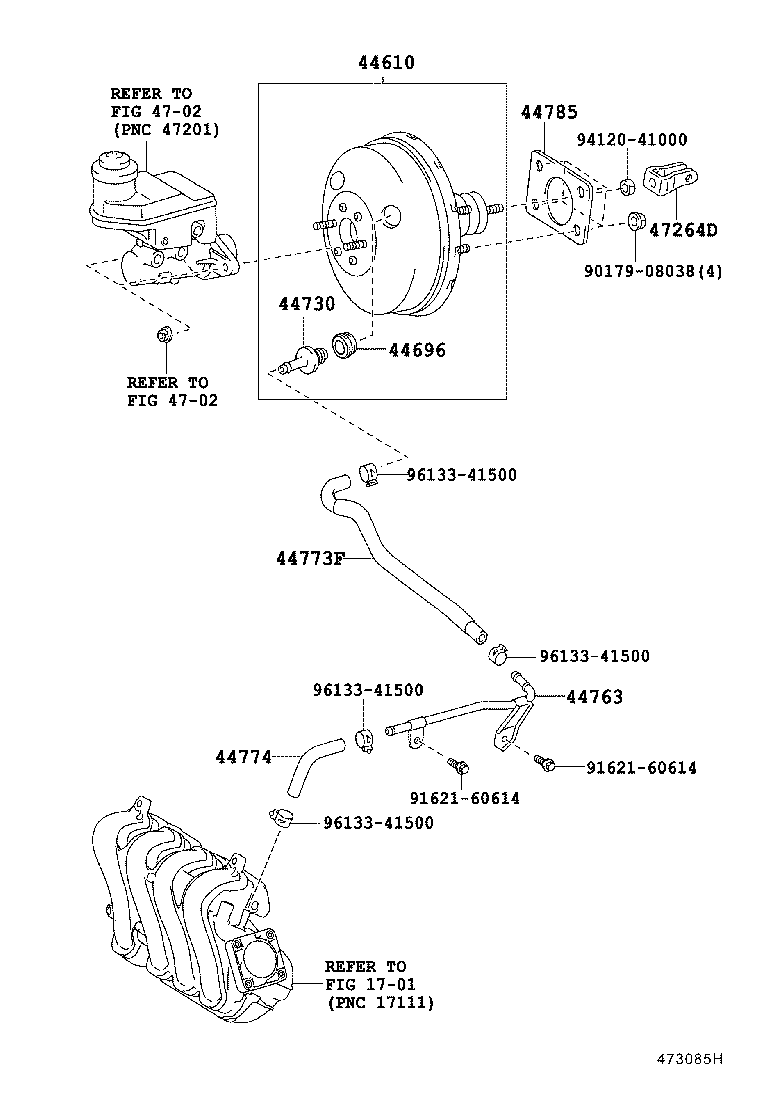

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763 44773F 44774 44785 4702 4702 47264D 9017908038 9162160614 9162160614 9412041000 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-52170

NCP5#..DX,F,GL,TX,U,UL

 1
44696 - GROMMET, CHECK VALVE
90480-24439

NCP5#..DX,F,GL,TX,U,UL

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

NCP5#..DX,F,GL,TX,U,UL

 1
44763 - TUBE, BOOSTER VACUUM
44763-52010

NCP50,51,55,58,59..DX,F,GL,TX,U,UL

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-52080

NCP5#..DX,F,GL,TX,U,UL

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95446-09130

NCP50,51,55,58,59..DX,F,GL,TX,U,UL

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-52040

NCP5#

 1
47264-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
Common parts
90179-08038
91621-60614
94120-41000
96133-41500
Linked diagrams
1701
4702
