NCP59G-FWPLK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Oct 2013
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

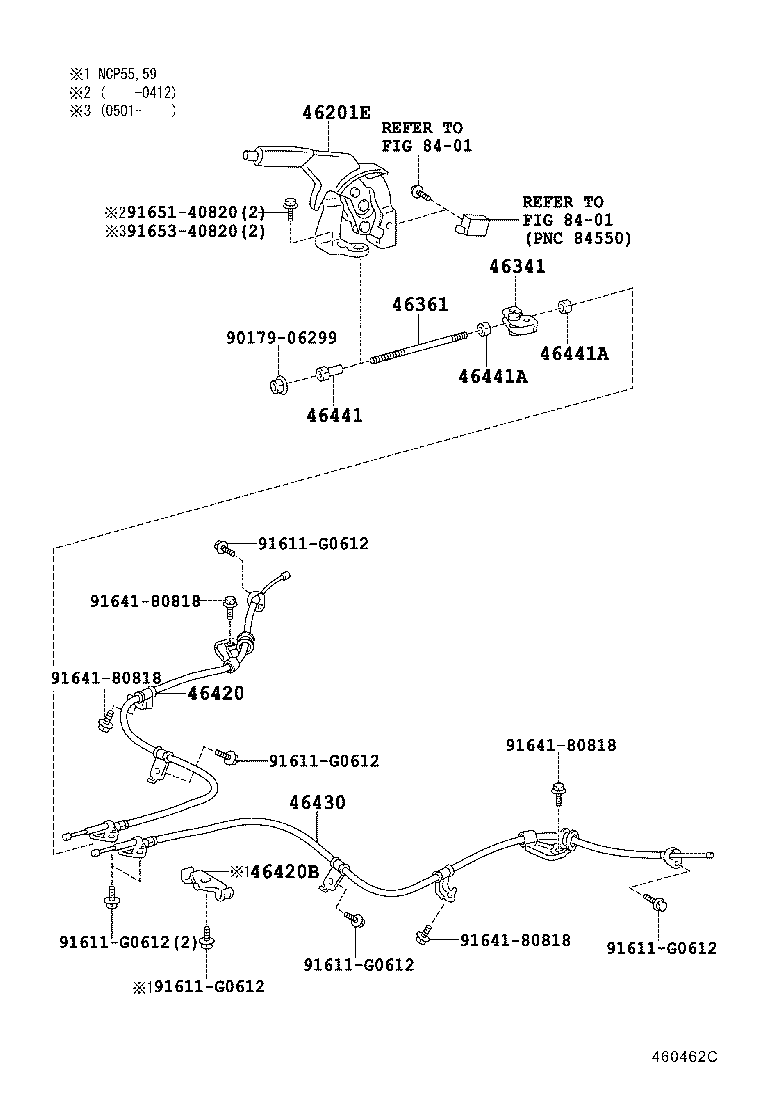

Click highlighted areas on diagram

diagram 46201E 46341 46361 46420 46420B 46430 46441 46441A 46441A 8401 8401 9017906299 91611G0612 91611G0612 91611G0612 91611G0612 91611G0612 91611G0612 9164180818 9164180818 9164180818 9164180818 9165140820 9165340820
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-52010B3

NCP5#,NLP51..DX,F,GL,TX,U,UL

DK.GRAY,TRIM1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
46361 - ROD, PARKING BRAKE PULL
46361-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52111

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
46420-52110

NCP5#,NLP51

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46451-52010

NCP55,59

 1
90949-01B84

NCP55,59..DX,F,GL,TX,U,UL

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52110

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90170-06014

NCP5#,NLP51..DX,F,GL,TX,U,UL

 2
46441A - NUT, WIRE ADJUSTING, NO.2
90170-06014

NCP5#,NLP51..DX,F,GL,TX,U,UL

 2
Common parts
90179-06299
91611-G0612
91641-80818
91651-40820
91653-40820
Linked diagrams
8401
