NCP59G-EWMLK (2002)
Toyota Probox/Succeed
ILLUST NO. 2 OF 2(0206- )
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-07076B7 |
NCP5#..DX,F,GL DK.GRAY,TRIM1# |
12 | ||
| 90467-07076B7 |
NCP5#..DX,F,GL ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付),DK.GRAY,TRIM1# |
11 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-07076B7 |
NCP5#..DX,F,GL DK.GRAY,TRIM1# |
12 | ||
| 90467-07076B7 |
NCP5#..DX,F,GL ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付),DK.GRAY,TRIM1# |
11 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-52100B1 |
NCP5#,NLP51..PROB ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付),STONE,TRIM1# |
1 | ||
| 67751-52070B1 |
NCP5#,NLP51..PROB STONE,TRIM1# |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010B5 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||

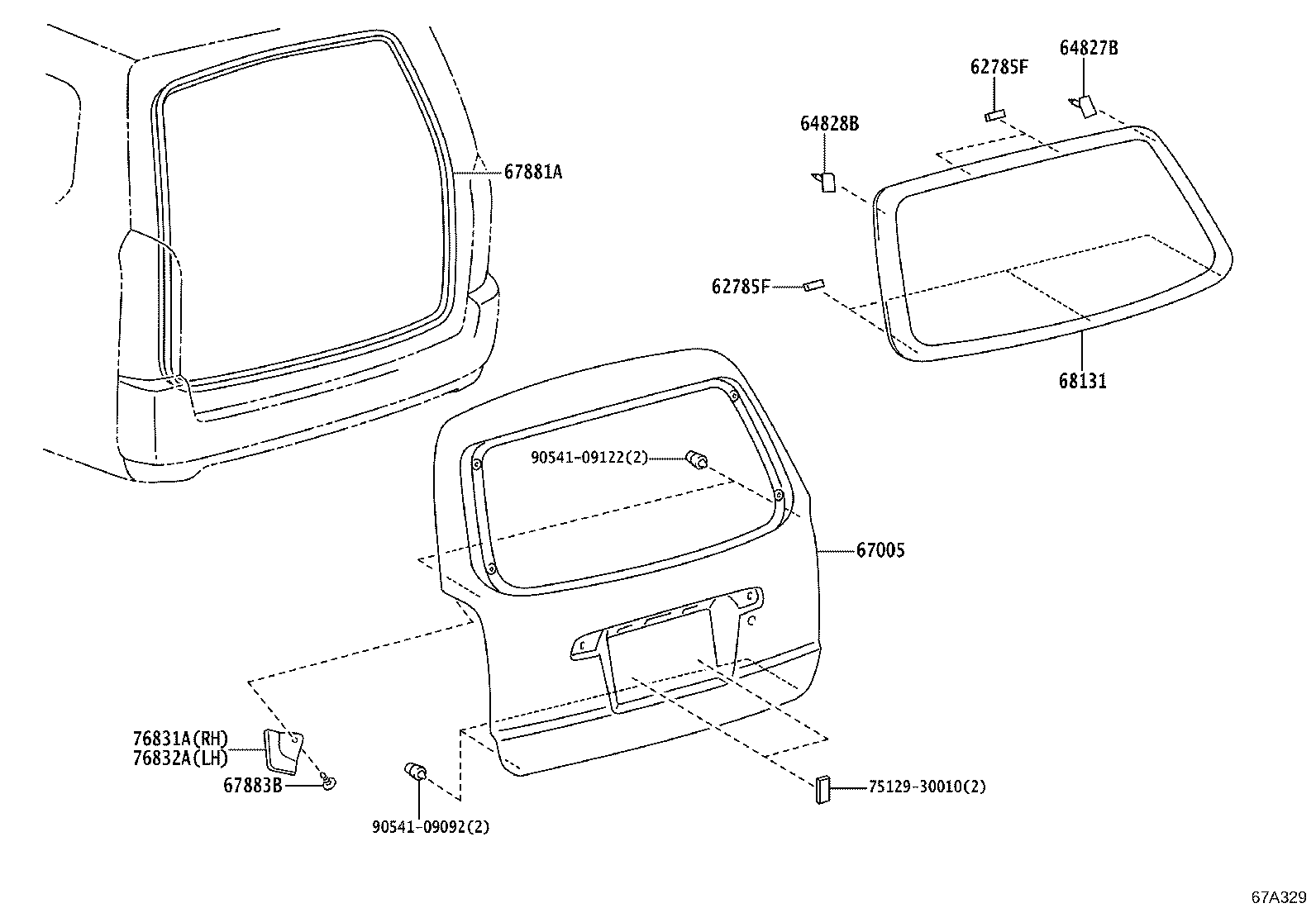

ILLUST NO. 1 OF 2(0206- )PROB
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NLP51;NCP5#..DX,DXJ,F,GL,TX,U |
5 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NLP51;NCP5#..DX,DXJ,F,GL,TX,U |
5 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-52030 |
NCP5#,NLP51..PROB |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-52030 |
NCP5#,NLP51..PROB |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-52450 |
NCP5#,NLP51..DX,F,GL ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付) |
1 | ||
| 67005-52440 |
NCP5#,NLP51..DX,F,GL ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式) |
1 | ||
| 67005-52470 |
NCP5#,NLP51..DX,F,GL ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)&ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式) |
1 | ||
| 67005-52410 |
NCP5#,NLP51..DX,F,GL |
1 | ||
| 67005-52411 |
NCP58,59..F |
1 | ||
| 67005-52471 |
NCP58,59..F ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)&ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式) |
1 | ||
| 67005-52451 |
NCP58,59..F ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付) |
1 | ||
| 67005-52441 |
NCP58,59..F ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式) |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-52051 |
NCP5#,NLP51..PROB |
1 | ||
| 67881-52050 |
NCP5#,NLP51..PROB |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-52160 |
NCP5#,NLP51..DX,F,GL *TT,厚さ=2.8,ｸﾞﾘｰﾝ |
1 | ||
| 68105-52190 |
NCP5#,NLP51..DX,F,GL *TT,厚さ=2.8,ｸｰﾙｸﾞﾘｰﾝ,ﾌﾛﾝﾄ ｻｲﾄﾞ ｶﾞﾗｽ−ｸﾞﾘｰﾝ UV |
1 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 76831-52030 |
NCP5#,NLP51..PROB |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-52030 |
NCP5#,NLP51..PROB |
1 | ||
| Common parts | ||||
| 75129-30010 | ||||
| 90541-09092 | ||||
| 90541-09122 | ||||
