NCP59G-EWMLK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Oct 2013
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )NCP55,59

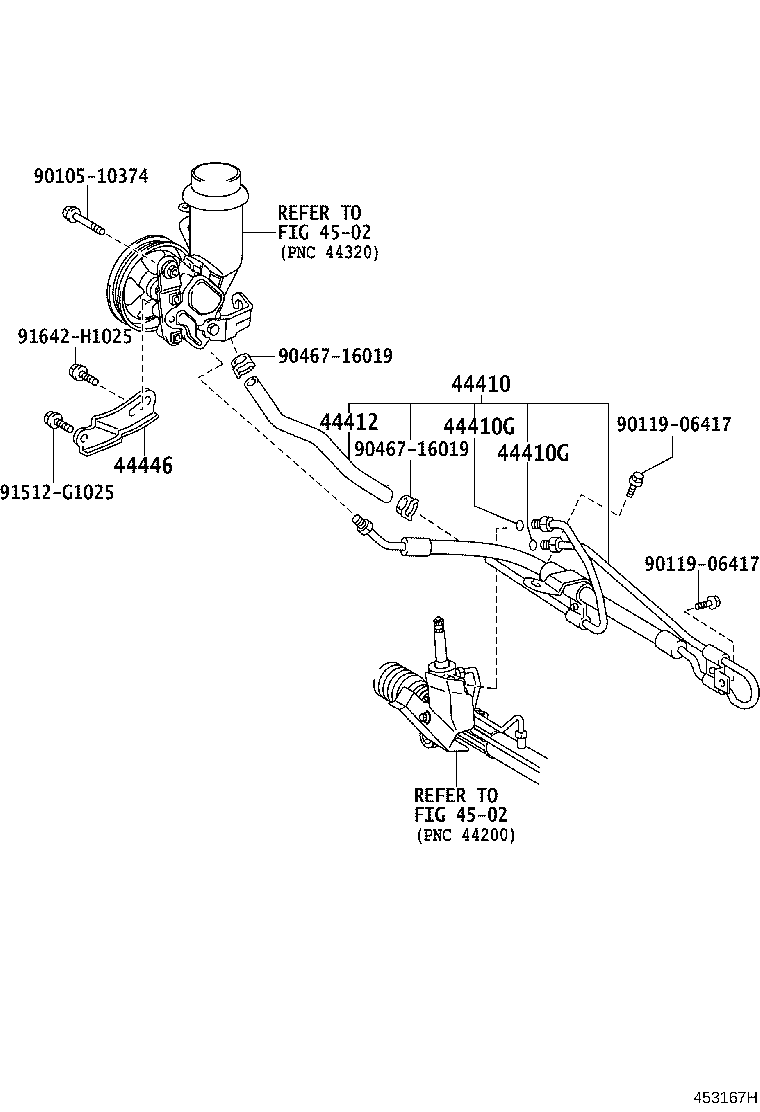

Click highlighted areas on diagram

diagram 44410 44410G 44410G 44412 44446 4502 4502 9010510374 9011906417 9011906417 9046716019 9046716019 91512G1025 91642H1025
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44410-52050

NCP55,59..DX,F,GL,TX,U,UL

 1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07025

NCP55,59..DX,F,GL,TX,U,UL

 2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07025

NCP55,59..DX,F,GL,TX,U,UL

 2
44412 - HOSE, RETURN
44412-52040

NCP55,59..DX,F,GL,TX,U,UL

 1
44446 - STRUT, ADJUSTING
44446-52010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
Common parts
90105-10374
90119-06417
90467-16019
91512-G1025
91642-H1025
Linked diagrams
4502
