NCP58G-FWPLK (2002)
Toyota Probox/Succeed

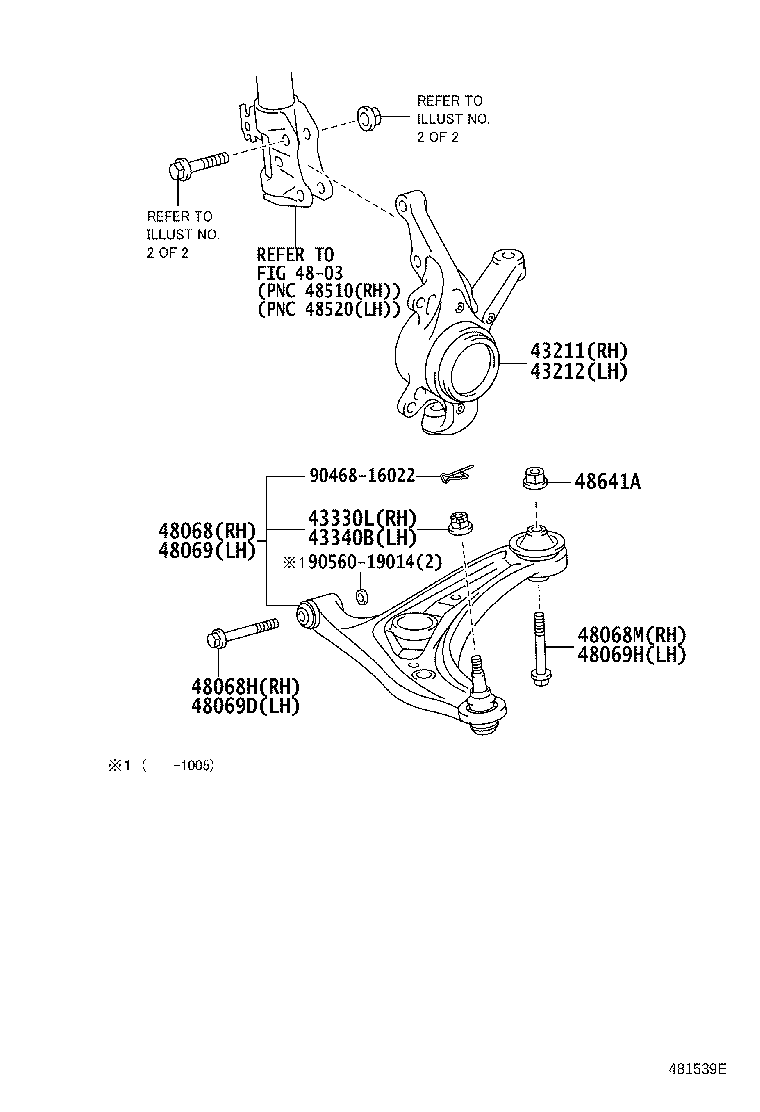

ILLUST NO. 1 OF 2(0206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-52020 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-52020 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-12007 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-12007 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-19176 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 48068-59065 |
NCP5#,NLP51 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-12338 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 90119-14086 |
NCP5#,NLP51 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90119-12337 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-19156 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 48069-59065 |
NCP5#,NLP51 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-12338 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 90119-14086 |
NCP5#,NLP51 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90119-12337 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90178-12009 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| Common parts | ||||
| 90468-16022 | ||||
| 90560-19014 | ||||
| Linked diagrams | ||||
| 4803 | ||||

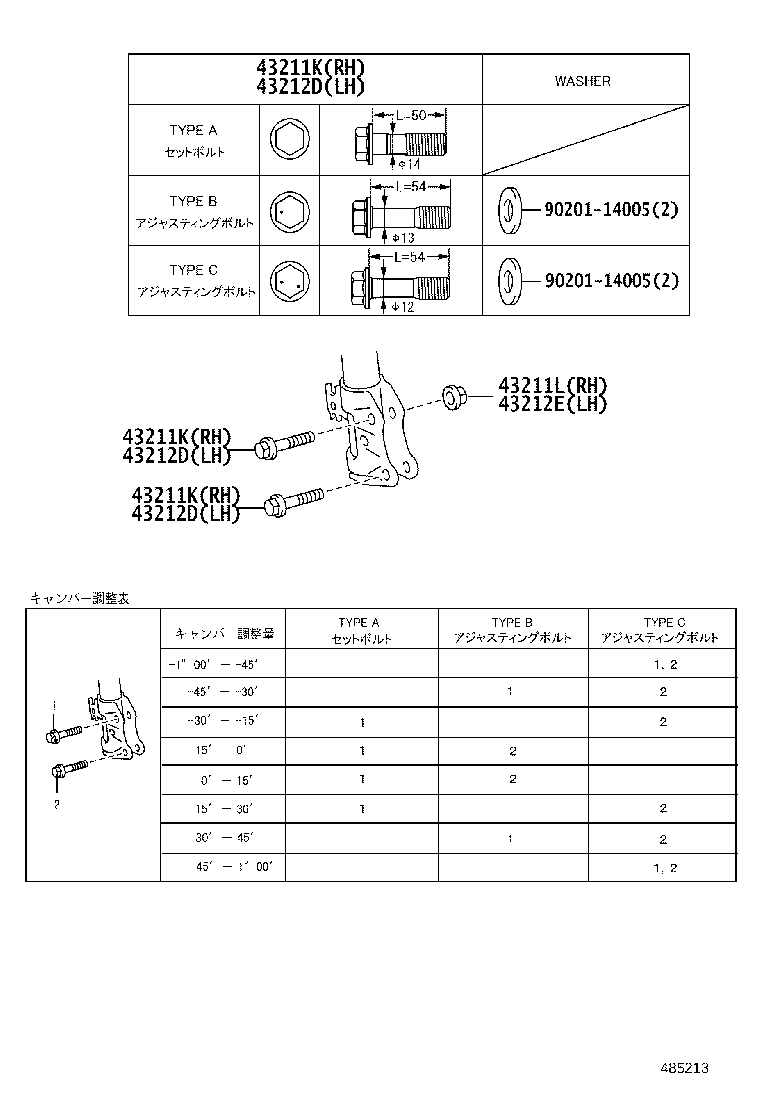

ILLUST NO. 2 OF 2(0206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-14146 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=13,TYPE B,修理書 参照 |
1 | ||
| 90105-14140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=14,TYPE A,修理書 参照 |
1 | ||
| 90105-14147 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=12,TYPE C,修理書 参照 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-14146 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=13,TYPE B,修理書 参照 |
1 | ||
| 90105-14140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=14,TYPE A,修理書 参照 |
1 | ||
| 90105-14147 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=12,TYPE C,修理書 参照 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-14146 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=13,TYPE B,修理書 参照 |
1 | ||
| 90105-14140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=14,TYPE A,修理書 参照 |
1 | ||
| 90105-14147 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=12,TYPE C,修理書 参照 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-14062 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-14146 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=13,TYPE B,修理書 参照 |
1 | ||
| 90105-14147 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=12,TYPE C,修理書 参照 |
1 | ||
| 90105-14140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=14,TYPE A,修理書 参照 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-14146 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=13,TYPE B,修理書 参照 |
1 | ||
| 90105-14147 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=12,TYPE C,修理書 参照 |
1 | ||
| 90105-14140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=14,TYPE A,修理書 参照 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-14146 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=13,TYPE B,修理書 参照 |
1 | ||
| 90105-14147 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=12,TYPE C,修理書 参照 |
1 | ||
| 90105-14140 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 外径=14,TYPE A,修理書 参照 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-14062 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| Common parts | ||||
| 90201-14005 | ||||
