NCP58G-EWMLK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Oct 2013
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

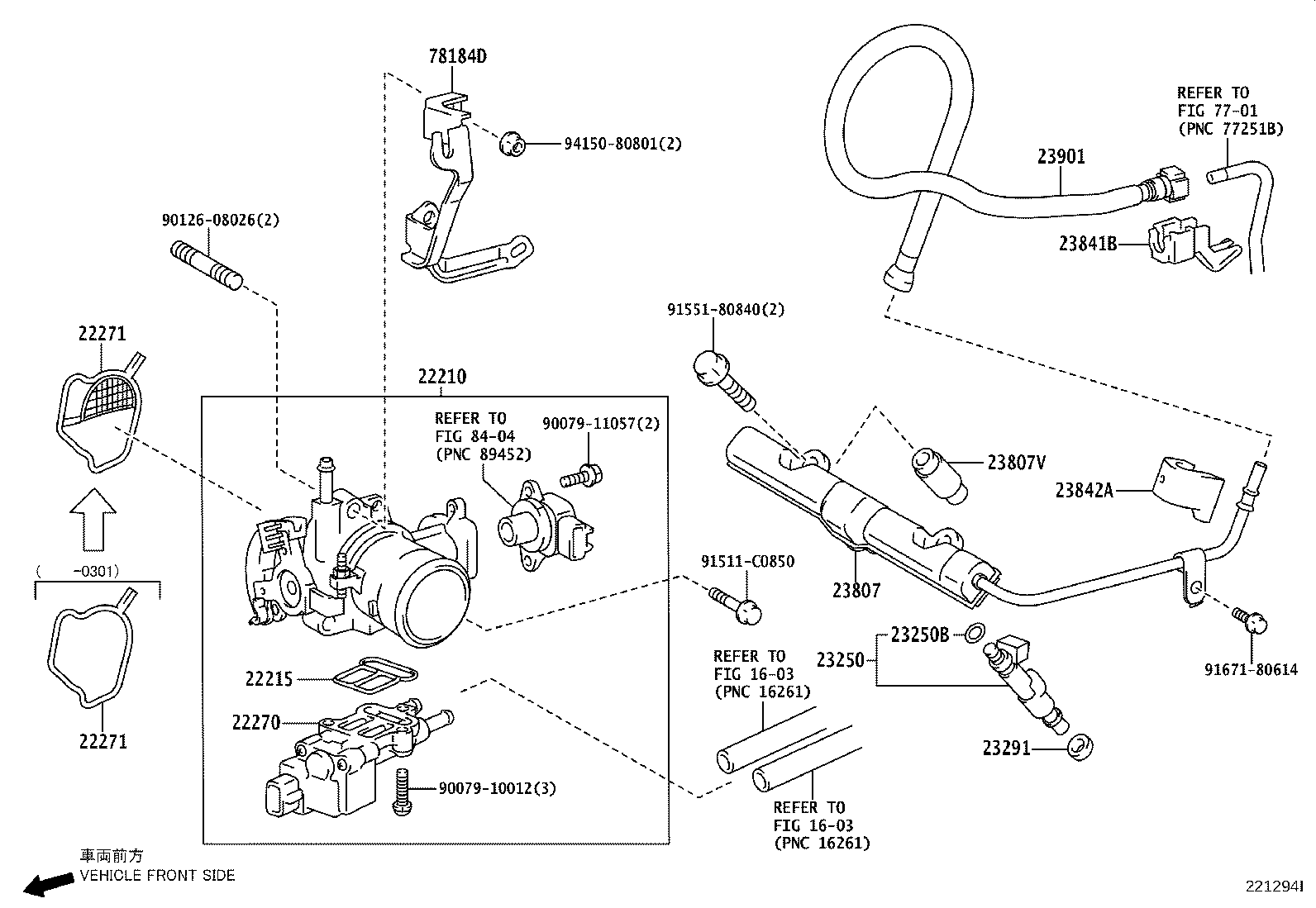

ILLUST NO. 1 OF 2(0206- )1NZFE,2NZFE

Click highlighted areas on diagram

diagram 1603 1603 22210 22215 22270 22271 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 78184D 8404 9007910012 9007911057 9012608026 91511C0850 9155180840 9167180614 9415080801
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-21010

1NZ#,2NZFE..NCP5#

 1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680

1NZ#,2NZFE..NCP5#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-21010

1NZFE,2NZFE..NCP5#

 1
22270-21011

1NZ#,2NZFE..NCP5#

 1
22271 - GASKET, THROTTLE BODY
22271-21020

1NZFE,2NZFE..NCP5#

 1
22271 - GASKET, THROTTLE BODY
22271-21020

1NZFE,2NZFE..NCP5#

 1
23250 - INJECTOR ASSY, FUEL
23209-21020

1NZFE,2NZFE..NCP50,51,55,58,59

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1NZFE,2NZFE..NCP50,51,55,58,59

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1NZFE,2NZFE..NCP50,51,55,58,59

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-21021

1NZFE,2NZFE..NCP50,51,55,58,59

 1
23807-21010

1NZFE,2NZFE..NCP50,51,55,58,59

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-21010

1NZFE,2NZFE..NCP50,51,55,58,59

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010

1NZFE,2NZFE..NCP50,51,55,58,59

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL

 1
23901 - TUBE SUB-ASSY, FUEL
23901-21060

1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL

 1
78184D - BRACKET, ACCELERATOR CONTROL CABLE
78184-52011

NCP5#

 1
Common parts
90079-10012
90079-11057
90126-08026
91511-C0850
91551-80840
91671-80614
94150-80801
Linked diagrams
1603
7701
8404

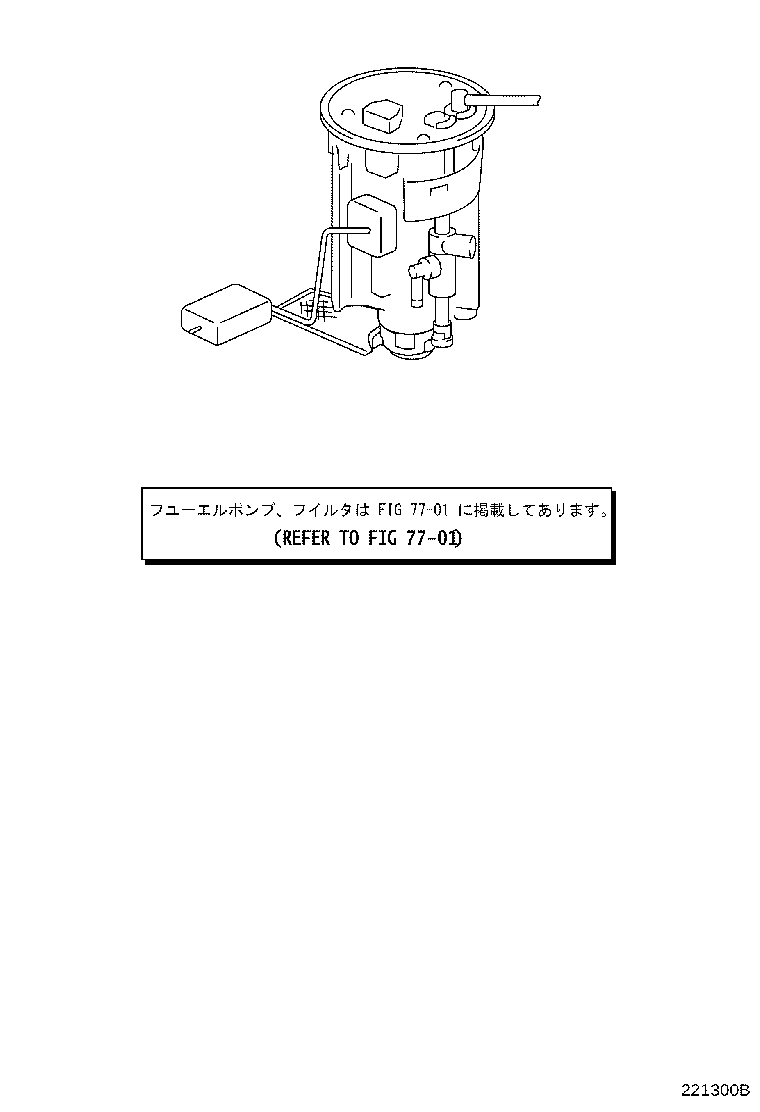

ILLUST NO. 2 OF 2(0206- )1NZFE,2NZFE

Click highlighted areas on diagram

diagram 7701
Part # Description Qty Price
Linked diagrams
7701
