NCP55V-FXPDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

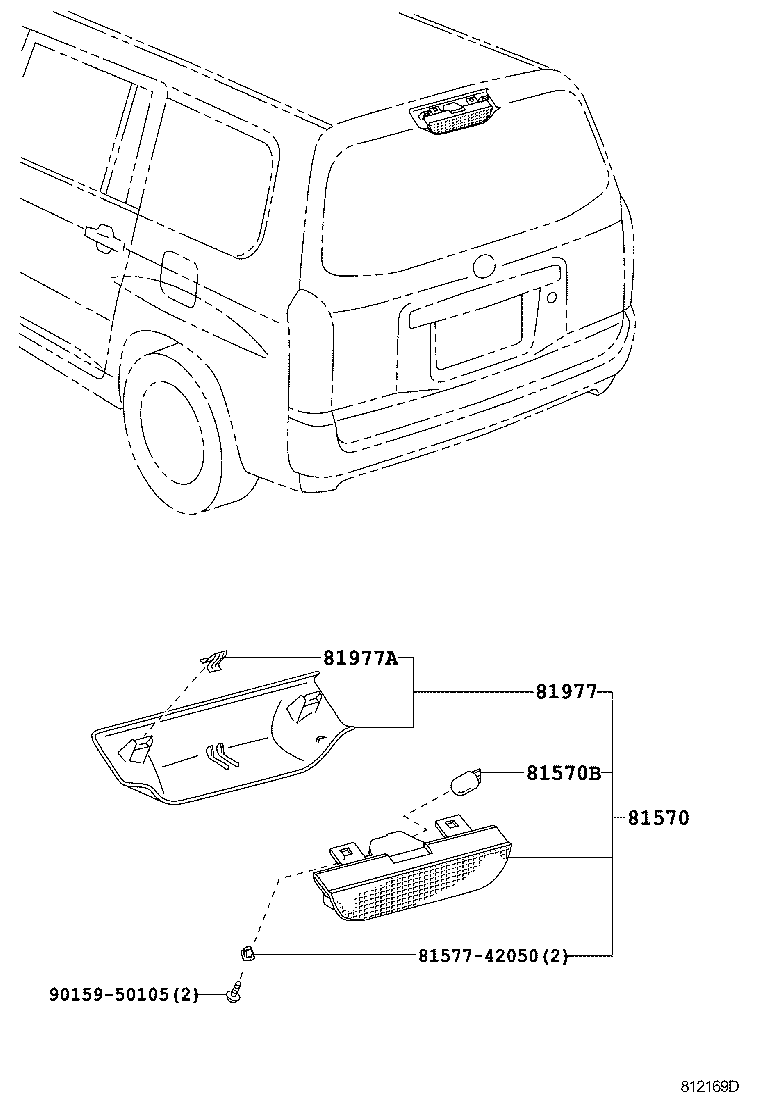

Click highlighted areas on diagram

diagram 81570 81570B 8157742050 81977 81977A 9015950105
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-49045B0

NCP51,55,58,59,NLP51..SUCD

ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式),DK.GRAY,TRIM1#

 1
81570-49045B0

NCP51,55..SUCD

DK.GRAY,TRIM1#

 1
81570-49045B0

NCP51,55,NLP51..SUCD

ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式),DK.GRAY,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

NCP50,51,52,55,NLP51

12V 21W,ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式)

 1
90981-13043

NCP50,51,52,55

12V 21W

 1
81977 - COVER, CENTER STOP LAMP
81977-52060B0

NCP51,55..SUCD

DK.GRAY,TRIM1#

 1
81977-52060B0

NCP51,55,NLP51..SUCD

ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式),DK.GRAY,TRIM1#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90468-05060

NCP50,51,52,55,NLP51

ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ式)

 2
90468-05060

NCP50,51,52,55

 2
Common parts
81577-42050
90159-50105
