NCP55V-FXPDK (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Sep 2014
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )NCP55,59

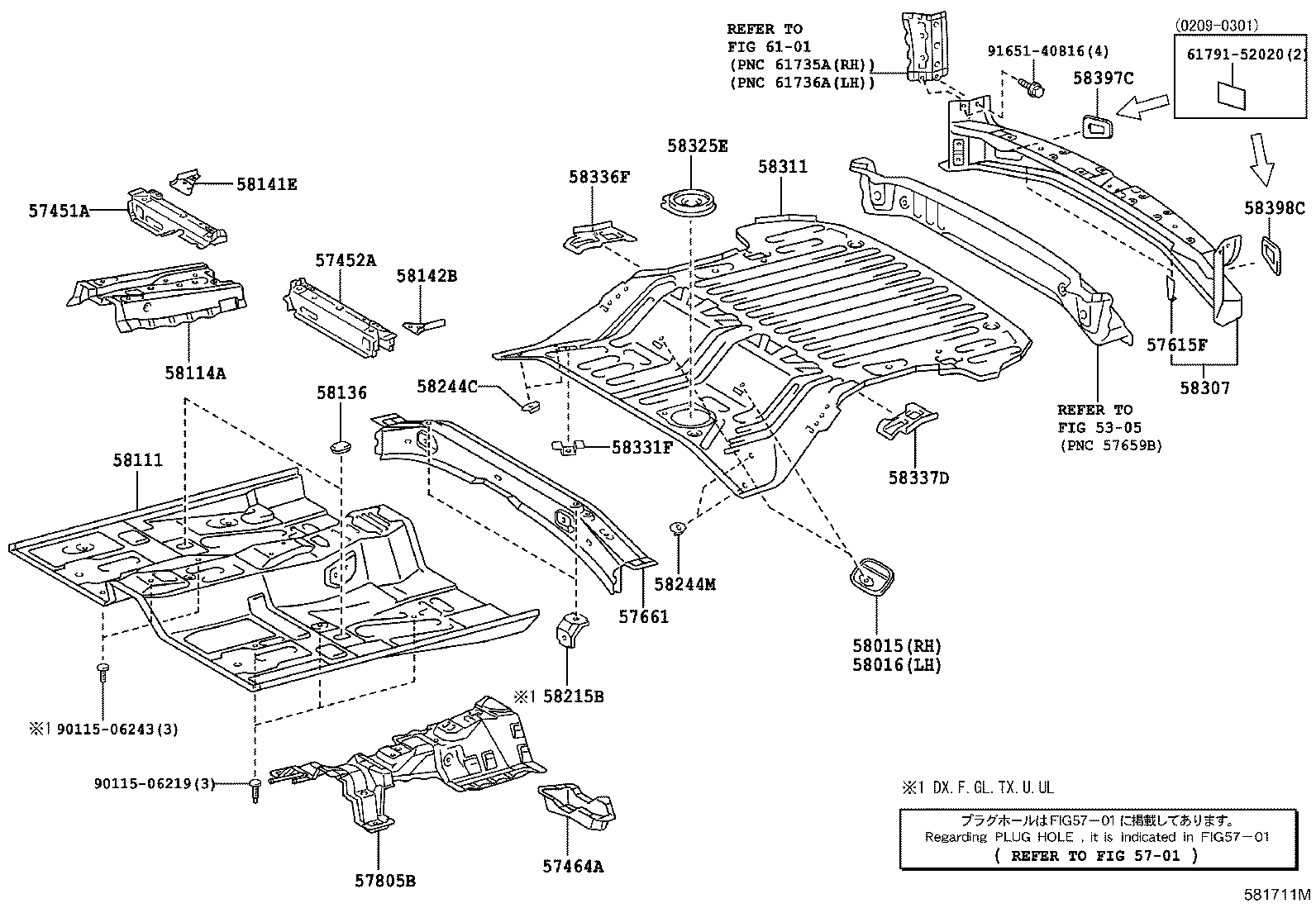

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-52021 |
NCP55,59 |
1 | ||
| 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-52030 |
NCP55,59 |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57464-52020 |
NCP55,59 |
1 | ||
| 57615F - BRACKET, REAR BUMPER MOUNTING | ||||
| 52185-52050 |
NCP52,55;NCP51,58,59,NLP51..F,TX,U,UL |
2 | ||
| 57661 - PANEL, REAR FLOOR SIDE, FRONT RH | ||||
| 57661-52040 |
NCP5#,NLP51 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52030 |
NCP55,59 |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-52030 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-52030 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-52901 |
NCP55,59 |
1 | ||
| 58111-52930 |
NCP55,59 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52021 |
NCP55,59 |
1 | ||
| 58114-52020 |
NCP55,59 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-52010 |
NCP5#,NLP51 |
2 | ||
| 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH | ||||
| 58141-52010 |
NCP5#,NLP51 |
1 | ||
| 58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH | ||||
| 58142-52010 |
NCP5#,NLP51 |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-52050 |
NCP52;NCP51,55,58,59,NLP51..F,TX,U,UL |
2 | ||
| 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-52060 |
NCP5#,NLP51 |
2 | ||
| 58244M - BRACKET, REAR SEAT CUSHION MOUNTING, LH | ||||
| 58244-52060 |
NCP5#,NLP51 |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52171 |
NCP51,55,58,59..SUCD |
1 | ||
| 58307-52170 |
NCP51,55,58,59,NLP51..SUCD |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52270 |
NCP50,51,55,58,59 |
1 | ||
| 58311-52100 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52020 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 58336F - REINFORCEMENT, REAR FLOOR PAN, RH | ||||
| 58336-52010 |
NCP5#,NLP51 |
1 | ||
| 58337D - REINFORCEMENT, REAR FLOOR PAN, LH | ||||
| 58337-52010 |
NCP5#,NLP51 |
1 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-52030 |
NCP5#,NLP51 |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-52020 |
NCP5#,NLP51 |
1 | ||
| Common parts | ||||
| 61791-52020 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
| 6101 | ||||
