NCP55V-FXPDK (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Sep 2014
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

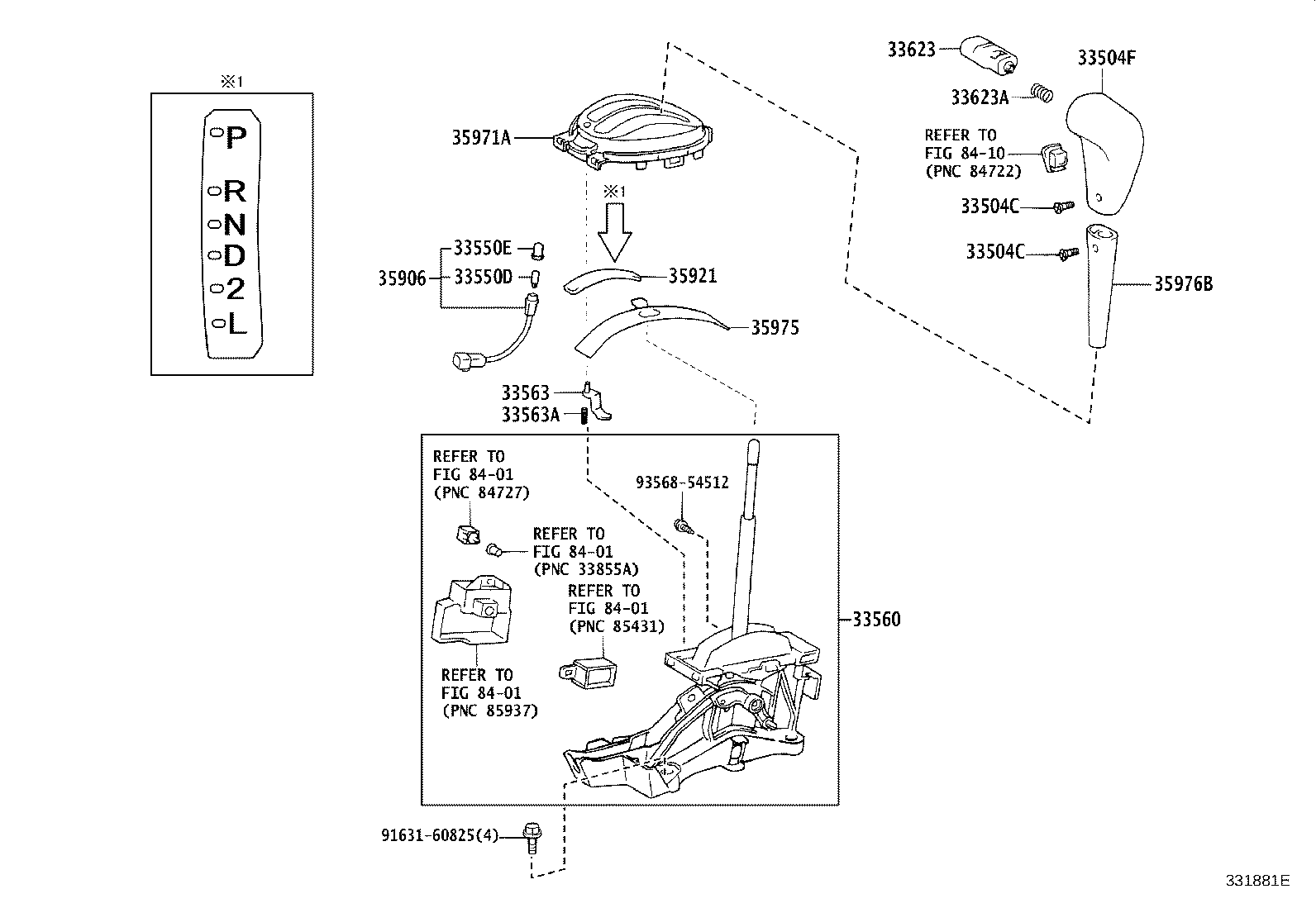

ILLUST NO. 1 OF 2(0206- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NCP5#..4FC |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NCP5#..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-52010B4 |
NCP5#..4FC DK.GRAY,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
NCP5#..4FC 14V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52030 |
NCP5#..4FC |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-52021 |
NCP5#..4FC |
1 | ||
| 33560-52020 |
NCP5#..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52030 |
NCP5#..4FC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05055 |
NCP5#..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-52010B4 |
NCP5#..4FC DK.GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06082 |
NCP5#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52010 |
NCP5#..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-52010 |
NCP5#..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-52110 |
NCP5#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52030 |
NCP5#..4FC |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-52010B4 |
NCP5#..4FC DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 91631-60825 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

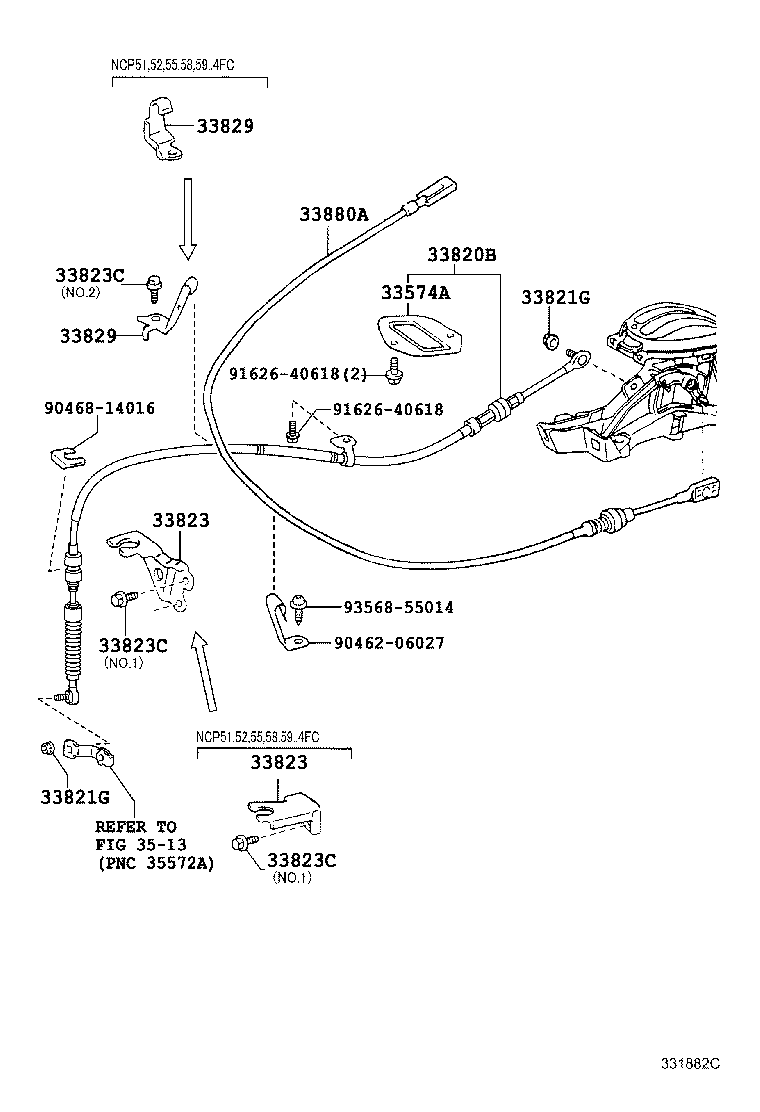

ILLUST NO. 2 OF 2(0206- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-52010 |
NCP5#,NLP51 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52250 |
NCP51,52,55,58,59..4FC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
NCP5#..4FC |
2 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
NCP5#..4FC |
2 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52041 |
NCP51,52,55,58,59..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52041 |
NCP51,52,55,58,59..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP51,52,55,58,59..4FC |
2 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP51,52,55,58,59..4FC |
2 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP51,52,55,58,59..4FC |
2 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52030 |
NCP51,52,55,58,59..4FC |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52030 |
NCP51,52,55,58,59..4FC |
1 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-52050 |
NCP5#..4FC |
1 | ||
| Common parts | ||||
| 90462-06027 | ||||
| 90468-14016 | ||||
| 91626-40618 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3513 | ||||
