NCP55V-FXMGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

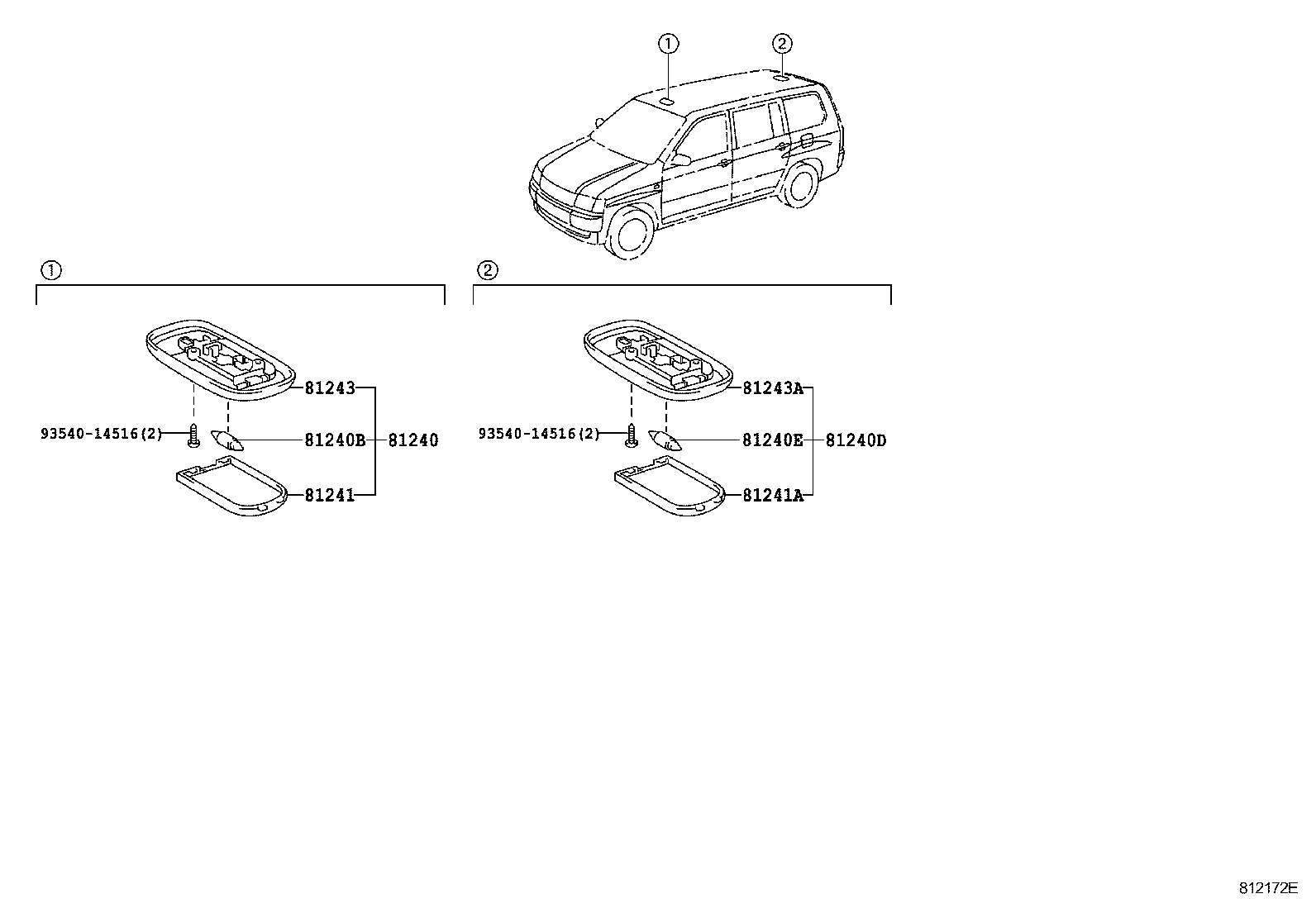

Click highlighted areas on diagram

diagram 81240 81240B 81240D 81240E 81241 81241A 81243 81243A 9354014516 9354014516
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-52030B0

NCP5#,NLP51

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NCP5#,NLP51

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-52030B0

NCP5#,NLP51

LT.GRAY,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

NCP5#,NLP51

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

NCP5#,NLP51

 1
81241A - LENS, ROOM LAMP, NO.2
81241-12020

NCP5#,NLP51

 1
81243 - BODY, ROOM LAMP, NO.1
81243-52030

NCP5#,NLP51

 1
81243A - BODY, ROOM LAMP, NO.2
81243-52030

NCP5#,NLP51

 1
Common parts
93540-14516
