NCP55V-FXMDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

Click highlighted areas on diagram

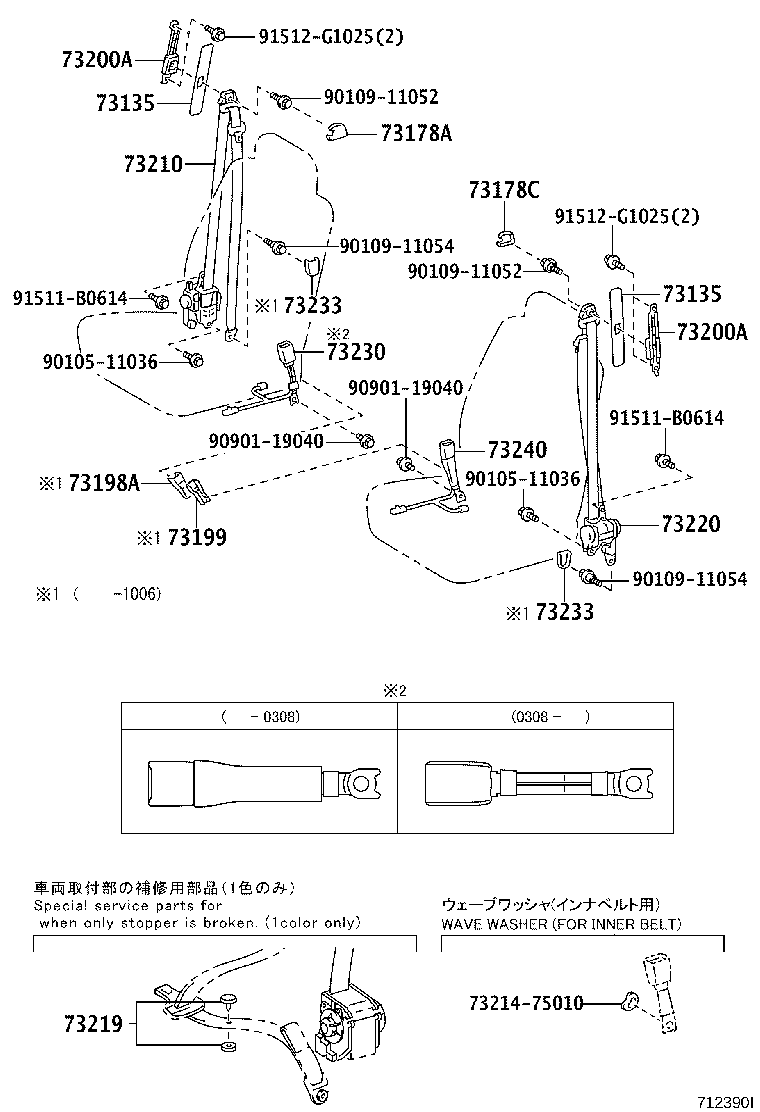

ﾌﾛﾝﾄｼｰﾄ

diagram 73135 73135 73178A 73178C 73198A 73199 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 9010511036 9010511036 9010911052 9010911052 9010911054 9010911054 9090119040 9090119040 91511B0614 91511B0614 91512G1025 91512G1025
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B9

NCP5#,NLP51

LT.GRAY,TRIM1#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B9

NCP5#,NLP51

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

NCP5#,NLP51

LT.GRAY,TRIM1#

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

NCP5#,NLP51

LT.GRAY,TRIM1#

 1
73198A - COVER, FRONT SEAT BELT INNER ANCHOR, RH
73198-52010B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73198-68010B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73199 - COVER, FRONT SEAT BELT INNER ANCHOR, LH
73198-68010B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73198-52010B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12050B6

NCP5#,NLP51

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12050B6

NCP5#,NLP51

LT.GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52370C0

NCP5#,NLP51

BLACK,TRIM1#

 1
73210-52340C0

NCP5#,NLP51

BLACK,TRIM1#

 1
73210-52710C0

NCP5#

BLACK,TRIM1#

 1
73210-52710C1

NCP5#

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP5#

ﾌﾞﾗｯｸ

 1
73219-33010

NCP5#,NLP51

ﾌﾞﾗｯｸ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52360C0

NCP5#,NLP51

SRSｴｱﾊﾞｯｸﾞ−運転席のみ,BLACK,TRIM1#

 1
73220-52720C1

NCP5#

BLACK,TRIM1#

 1
73220-52730C1

NCP50,51,52,55

SRSｴｱﾊﾞｯｸﾞ−運転席のみ,BLACK,TRIM1#

 1
73220-52380C0

NCP5#,NLP51

BLACK,TRIM1#

 1
73220-52720C0

NCP5#

BLACK,TRIM1#

 1
73220-52420C0

NCP5#,NLP51

BLACK,TRIM1#

 1
73220-52300C0

NCP50,51,52,55,NLP51

SRSｴｱﾊﾞｯｸﾞ−運転席のみ,BLACK,TRIM1#

 1
73220-52730C0

NCP50,51,52,55

SRSｴｱﾊﾞｯｸﾞ−運転席のみ,BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52300B0

NCP5#,NLP51..DX,F,GL,TX,U,UL

DK.GRAY,TRIM1#

 1
73230-52450B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73230-52451B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010B1

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010B1

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52461B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73230-52170B0

NCP5#,NLP51..DX,F,GL,TX,U,UL

DK.GRAY,TRIM1#

 1
73230-52460B0

NCP5#,NLP51

DK.GRAY,TRIM1#

 1
73230-52280B0

NCP5#

DK.GRAY,TRIM1#

 1
Common parts
73214-75010
90105-11036
90109-11052
90109-11054
90901-19040
91511-B0614
91512-G1025

(0206- )

Click highlighted areas on diagram

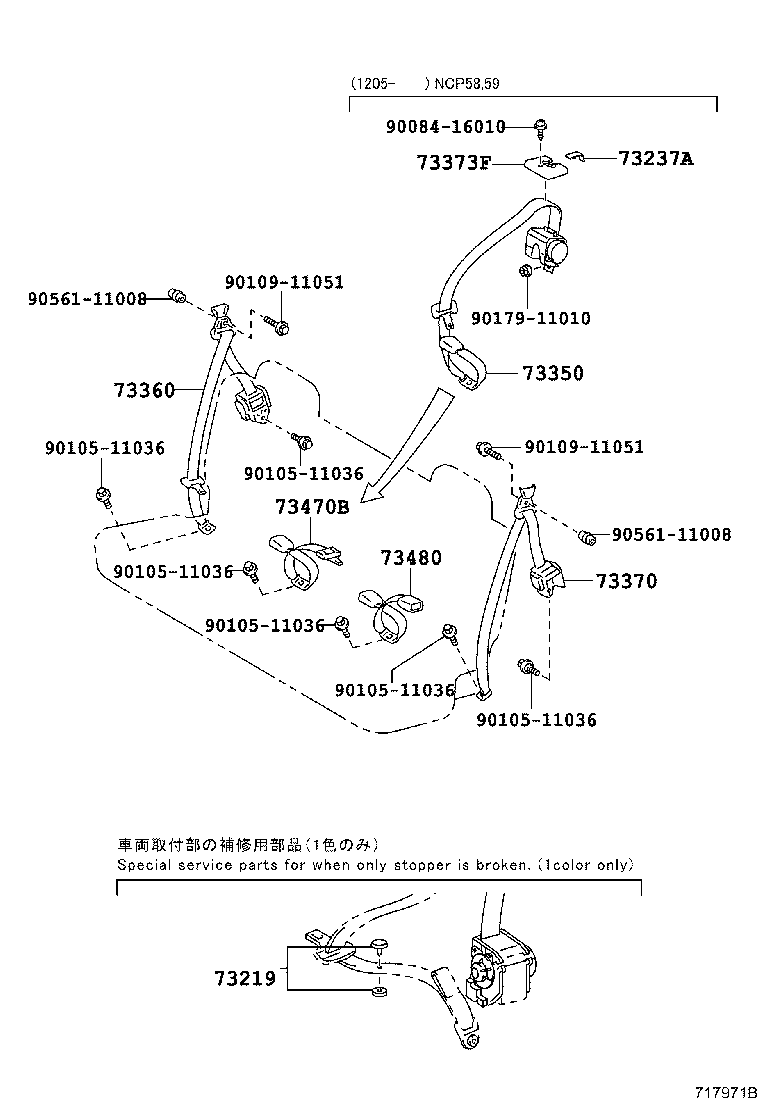

ﾘﾔｼｰﾄ

diagram 73219 73237A 73350 73360 73370 73373F 73470B 73480 9008416010 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911051 9010911051 9017911010 9056111008 9056111008
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP5#

ﾌﾞﾗｯｸ

 1
73219-33010

NCP5#,NLP51

ﾌﾞﾗｯｸ

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52111C1

NCP5#

BLACK,TRIM1#

 1
73360-52110C0

NCP5#,NLP51

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52070C0

NCP5#,NLP51

BLACK,TRIM1#

 1
73370-52071C1

NCP5#

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52130C0

NCP50,51,55,58,59,NLP51

BLACK,TRIM1#

 1
73470-52131C1

NCP50,51,55

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52150C0

NCP50,51,55,58,59,NLP51

BLACK,TRIM1#

 1
73480-52150C1

NCP50,51,55

BLACK,TRIM10

 1
Common parts
90084-16010
90105-11036
90109-11051
90179-11010
90561-11008
