NCP55V-EXPJK (2002)
Toyota Probox/Succeed

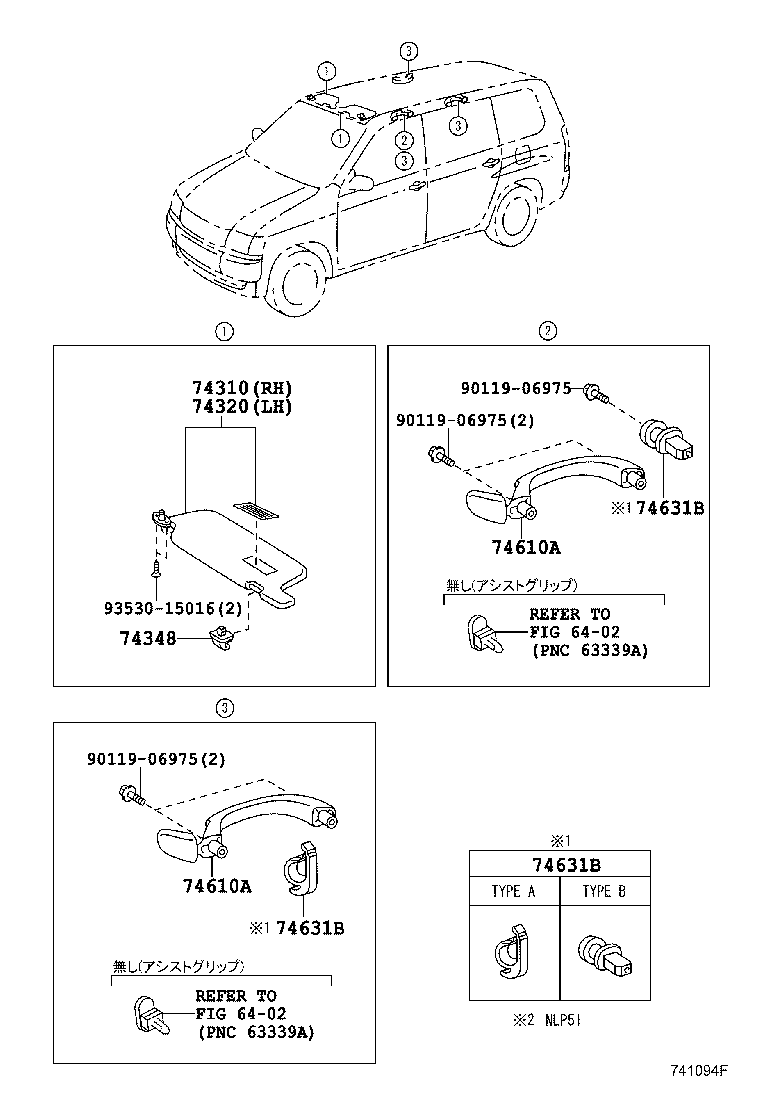

ILLUST NO. 2 OF 2(0206- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘﾂﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52270B0 |
NCP5# LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52380B0 |
NCP50,51,52,55,NLP51 SRSｴｱﾊﾞｯｸﾞ−運転席のみ,LT.GRAY,TRIM1# |
1 | ||
| 74320-52390B0 |
NCP5#,NLP51 LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-52010B0 |
NCP5#,NLP51 LT.GRAY,TRIM1# |
2 | ||
| 74631B - HOOK, COAT | ||||
| 74631-52010B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL LT.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-52010B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL LT.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-52010B0 |
NCP5#,NLP51..DX,F,GL,TX,U,UL LT.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90119-06975 | ||||
| 93530-15016 | ||||
| Linked diagrams | ||||
| 6402 | ||||

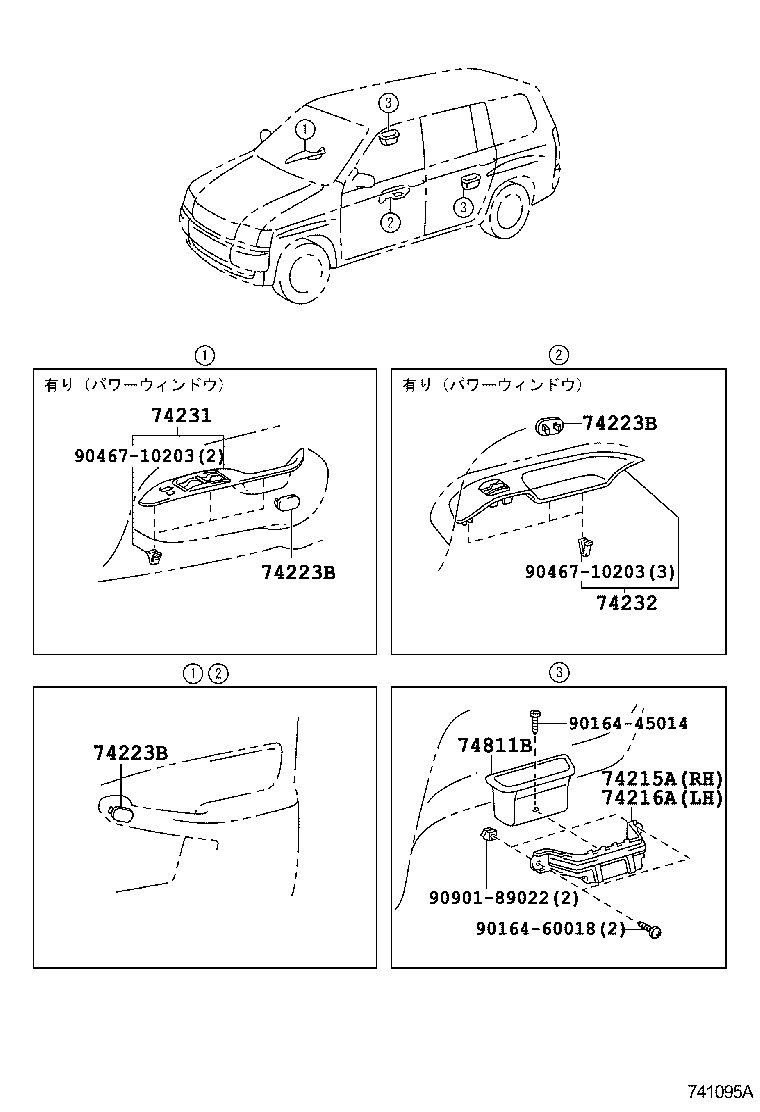

ILLUST NO. 1 OF 2(0206- )
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74215A - BASE, DOOR ARMREST RH | ||||
| 74215-12050 |
NCP5#,NLP51 |
1 | ||
| 74216A - BASE, DOOR ARMREST, LH | ||||
| 74215-12050 |
NCP5#,NLP51 |
1 | ||
| 74223B - CAP, DOOR ARMREST, FRONT | ||||
| 74223-52020B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1#,運転席 |
1 | ||
| 74223-52010B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1#,助手席 |
1 | ||
| 74223-52020B0 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1# |
2 | ||
| 74223-52010B0 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,U DK.GRAY,TRIM1#,助手席 |
2 | ||
| 74223B - CAP, DOOR ARMREST, FRONT | ||||
| 74223-52020B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1#,運転席 |
1 | ||
| 74223-52010B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1#,助手席 |
1 | ||
| 74223-52020B0 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1# |
2 | ||
| 74223-52010B0 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,U DK.GRAY,TRIM1#,助手席 |
2 | ||
| 74223B - CAP, DOOR ARMREST, FRONT | ||||
| 74223-52020B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1#,運転席 |
1 | ||
| 74223-52010B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1#,助手席 |
1 | ||
| 74223-52020B0 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1# |
2 | ||
| 74223-52010B0 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,U DK.GRAY,TRIM1#,助手席 |
2 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52180B0 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1# |
1 | ||
| 74231-52160B0 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52120B0 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,DK.GRAY,TRIM1# |
1 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-12060B2 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-45014 | ||||
| 90164-60018 | ||||
| 90467-10203 | ||||
| 90901-89022 | ||||
