NCP55V-EXPJK (2002)
Toyota Probox/Succeed

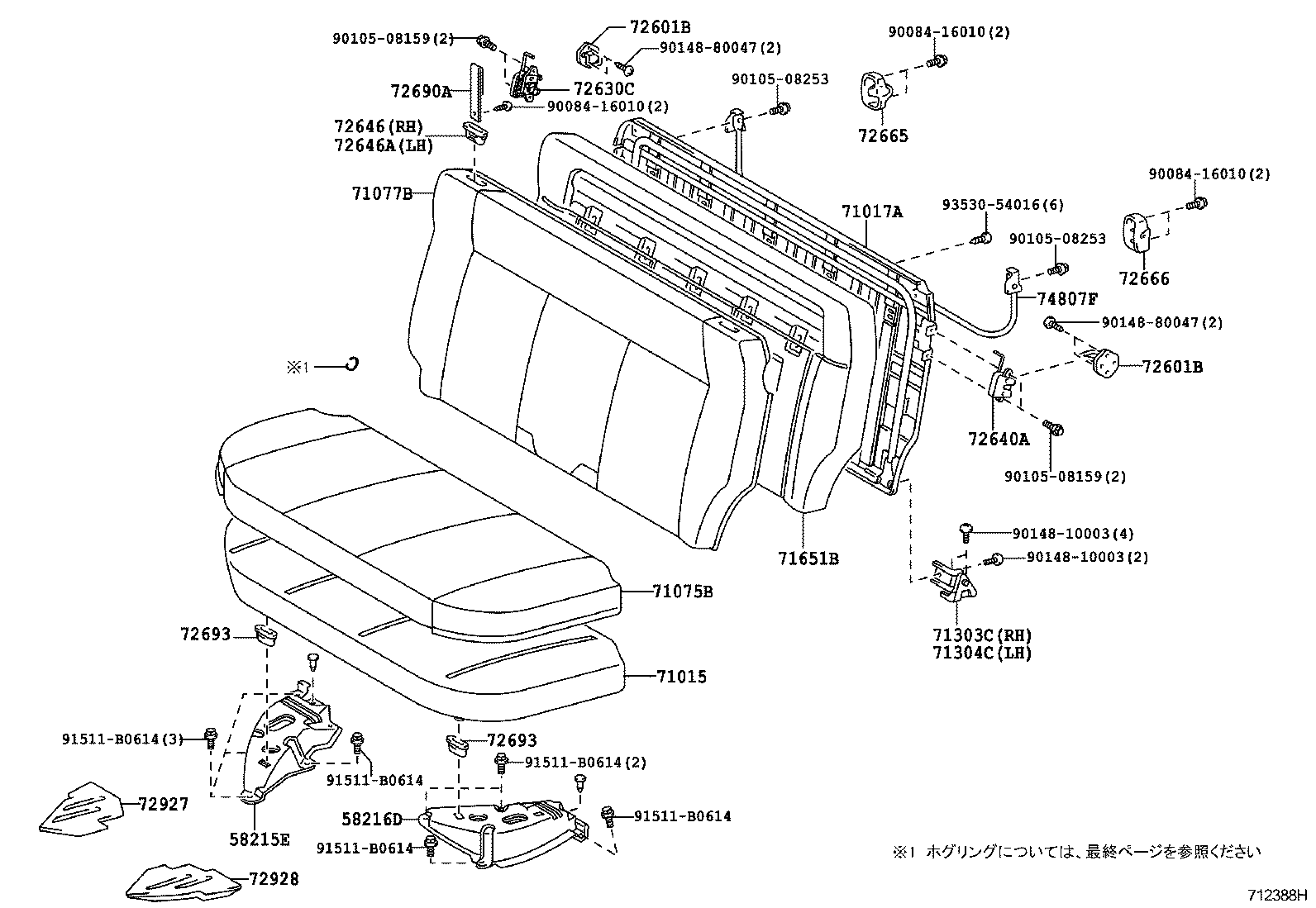

(0206- )NCP50,51,55,NLP51
ｸｯｼｮﾝ ｺﾃｲｼｷ ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58215E - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-52030 |
NCP50,51,55,NLP51..PROB |
1 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-52030 |
NCP50,51,55,NLP51..PROB |
1 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-52160 |
NCP50,51,55,NLP51..PROB |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-52240 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71017-52230 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71017-52220 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-52020B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71065-52010B1 |
NCP50,51,55,NLP51..PROB GRAY,TRIM1# |
1 | ||
| 71065-52020B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-5C100B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71077-5C110B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71077-5C090B1 |
NCP50,51,52,55,NLP51..PROB GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-52030B0 |
NCP50,51,55,58,59,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-52020B0 |
NCP50,51,55,58,59,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-52180 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71651-52170 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 71651-52190 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52100 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 72601-52010 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,GL,TX |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52100 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 72601-52010 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,GL,TX |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52080 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 72630-52070 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 72630-52080 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 72630-52080 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52070 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 72640-52060 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 72640-52070 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 72640-52070 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72665-52030B0 |
NCP50,51,52,55,NLP51..PROB DK.GRAY,TRIM1# |
1 | ||
| 72665-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-52030B0 |
NCP50,51,52,55,NLP51..PROB DK.GRAY,TRIM1# |
1 | ||
| 72666-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72666-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-52010C0 |
NCP5#,NLP51 BLACK,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP50,51,55,NLP51..PROB |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP50,51,55,NLP51..PROB |
4 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-52010 |
NCP50,51,55,NLP51..PROB |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-52010 |
NCP50,51,55,NLP51..PROB |
1 | ||
| 74807F - BAR SUB-ASSY, RR SEPARATOR | ||||
| 74807-52010 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| Common parts | ||||
| 90084-16010 | ||||
| 90105-08159 | ||||
| 90105-08253 | ||||
| 90148-10003 | ||||
| 90148-80047 | ||||
| 91511-B0614 | ||||
| 93530-54016 | ||||

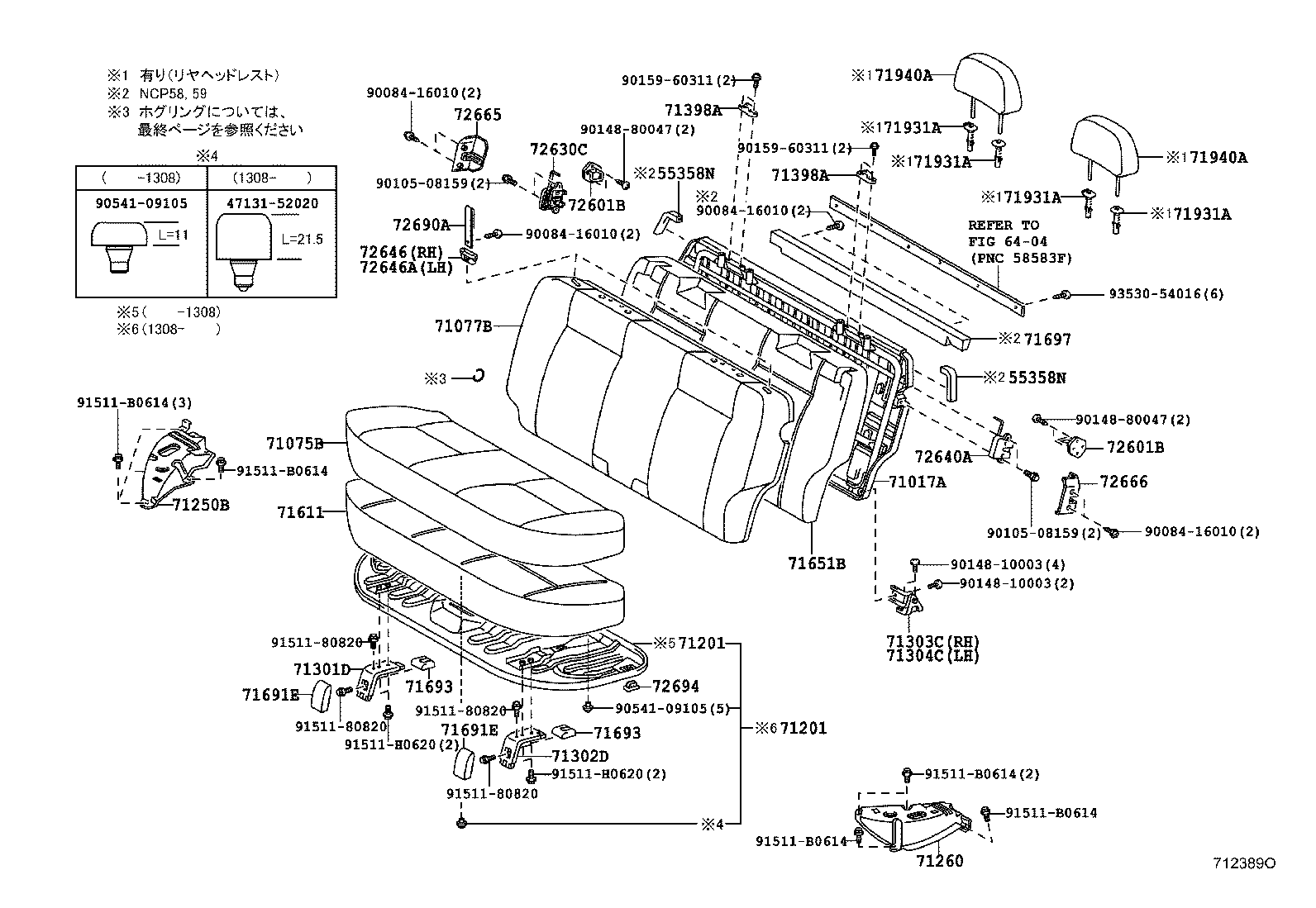

(0206-1205)NCP50,51,55,58,59,NLP51 ; (1205- )NCP50,51,55
ｸｯｼｮﾝ ﾋｷｵｺｼｼｷ ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-52240 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71017-52230 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71017-52220 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-52020B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71065-52010B1 |
NCP50,51,55,NLP51..PROB GRAY,TRIM1# |
1 | ||
| 71065-52020B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-5C100B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,GRAY,TRIM1# |
1 | ||
| 71077-5C110B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
1 | ||
| 71077-5C090B1 |
NCP50,51,52,55,NLP51..PROB GRAY,TRIM1# |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-52010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71201-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71201-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-52010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71201-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71201-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71250B - BRACKET ASSY, SEAT, OUTER RH | ||||
| 71250-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71250-52010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71260 - BRACKET ASSY, SEAT, OUTER LH | ||||
| 71260-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71260-52010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-52010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71301-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71301-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71302-52010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71302-52010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-52030B0 |
NCP50,51,55,58,59,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-52020B0 |
NCP50,51,55,58,59,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-52010B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71398-52010B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71398-52010B0 |
NCP51,55,58,59,NLP51..F,TX,U,UL DK.GRAY,TRIM1# |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-52010B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71398-52010B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71398-52010B0 |
NCP51,55,58,59,NLP51..F,TX,U,UL DK.GRAY,TRIM1# |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-52050 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 71611-52050 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71611-52050 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-52180 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 71651-52170 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 71651-52190 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-52030B0 |
NCP52;NCP51,55,58,59,NLP51..F,TX,U,UL DK.GRAY,TRIM1# |
2 | ||
| 71691-52030B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-52030B0 |
NCP52;NCP51,55,58,59,NLP51..F,TX,U,UL DK.GRAY,TRIM1# |
2 | ||
| 71691-52030B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52020B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71693-52020B0 |
NCP52;NCP51,55,58,59,NLP51..F,TX,U,UL DK.GRAY,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52020B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71693-52020B0 |
NCP52;NCP51,55,58,59,NLP51..F,TX,U,UL DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71970-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71970-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71970-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ無,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71970-47010B2 |
NCP50,51,55,NLP51..DX,GL ﾛｯｸ付,ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52070B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52070B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,GRAY,TRIM1# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52100 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 72601-52010 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,GL,TX |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52100 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 72601-52010 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,GL,TX |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52080 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 72630-52070 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 72630-52080 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 72630-52080 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52070 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
1 | ||
| 72640-52060 |
NCP50,51,52,55,NLP51..PROB |
1 | ||
| 72640-52070 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
1 | ||
| 72640-52070 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-52010B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72665-52030B0 |
NCP50,51,52,55,NLP51..PROB DK.GRAY,TRIM1# |
1 | ||
| 72665-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-52030B0 |
NCP50,51,52,55,NLP51..PROB DK.GRAY,TRIM1# |
1 | ||
| 72666-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72666-52040B0 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り,DK.GRAY,TRIM1# |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-52010C0 |
NCP5#,NLP51 BLACK,TRIM1# |
2 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-13010 |
NCP51,55,58,59,NLP51..F,TX,U,UL |
2 | ||
| 72694-13010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り&ﾊﾞﾝ用ﾘﾔ ﾍｯﾄﾞﾚｽﾄ有り |
2 | ||
| 72694-13010 |
NCP50,51,55,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| Common parts | ||||
| 47131-52020 | ||||
| 90084-16010 | ||||
| 90105-08159 | ||||
| 90148-10003 | ||||
| 90148-80047 | ||||
| 90159-60311 | ||||
| 90541-09105 | ||||
| 91511-80820 | ||||
| 91511-B0614 | ||||
| 91511-H0620 | ||||
| 93530-54016 | ||||
| Linked diagrams | ||||
| 6404 | ||||
(0206- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
