NCP55V-EXPJK (2002)

Toyota Probox/Succeed

Production Jun 2002 - May 2003
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

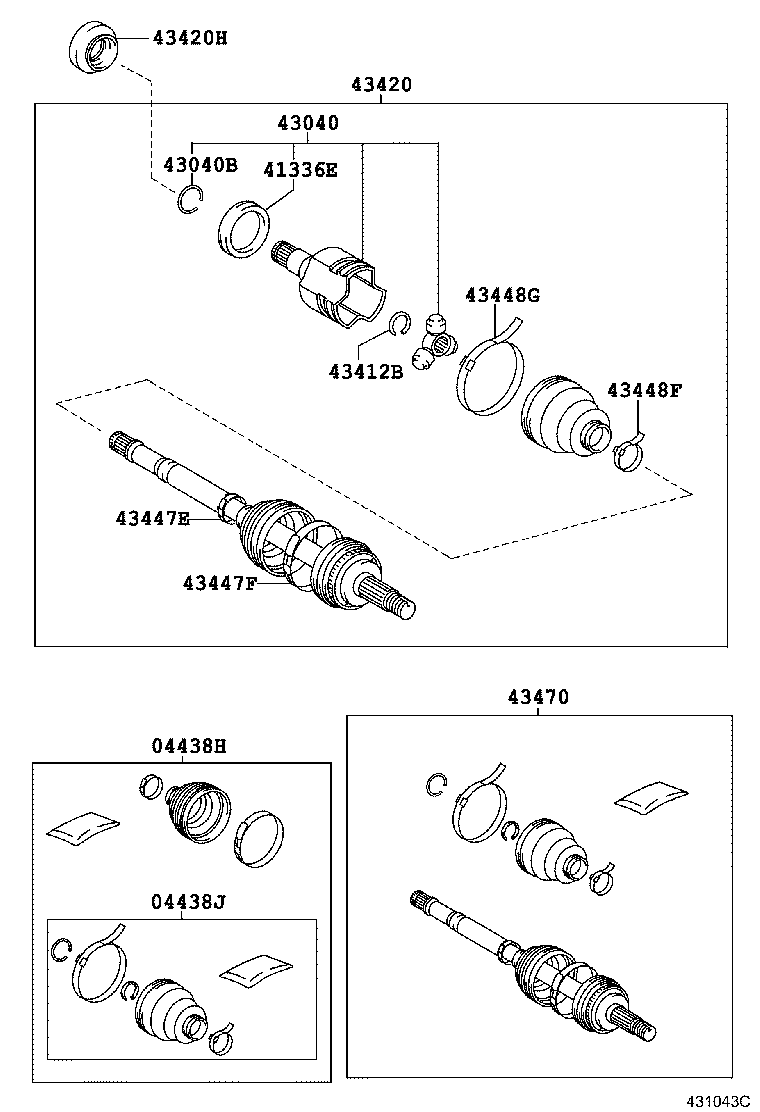

ILLUST NO. 2 OF 2(0206- )NCP55,59

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 41336E 43040 43040B 43412B 43420 43420H 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-52063

NCP55,59

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-32231

NCP55,59

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12010

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
41336-12010

NCP50,55,NLP51..DXJ

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-12040

NCP55,59..DX,F,GL,TX,U,UL

 1
43403-12040

NCP55..DXJ

 1
43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)
90521-26004

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
90521-26004

NCP50,55,NLP51..DXJ

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005

NCP55,59..DX,F,GL,TX,U,UL

 1
90520-22005

NCP55..DXJ

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-52030

NCP55,59..DX,F,GL,TX,U,UL

 1
43420-52030

NCP55..DXJ

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-34022

NCP51,52,55,58,59..4FC

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52110

NCP50,55,NLP51..DXJ

 1
42345-52110

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52100

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
42345-52100

NCP50,55,NLP51..DXJ

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078

NCP50,55,NLP51..DXJ

 1
90949-01078

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

NCP55,59..DX,F,GL,TX,U,UL

 1
42345-12160

NCP55..DXJ

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-59076

NCP55..DXJ

 1
43470-59076

NCP55,59..DX,F,GL,TX,U,UL

 1

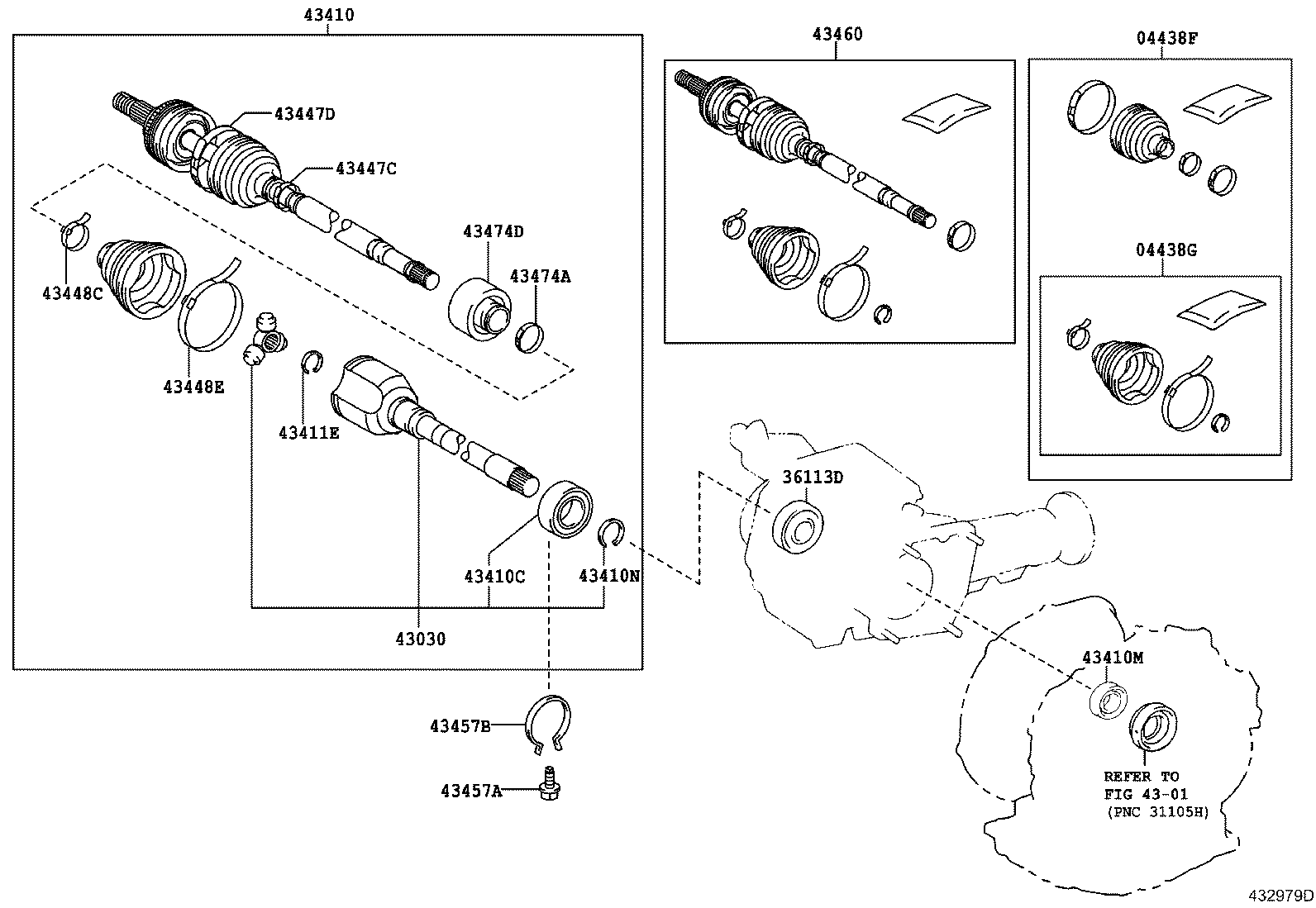

ILLUST NO. 1 OF 2(0206- )NCP55,59

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 36113D 4301 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457A 43457B 43460 43474A 43474D
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-52063

NCP55,59

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-32231

NCP55,59

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006

NCP55,59

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-52010

NCP55..DXJ

 1
43030-52010

NCP55,59..DX,F,GL,TX,U,UL

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-52030

NCP55..DXJ

 1
43410-52030

NCP55,59..DX,F,GL,TX,U,UL

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

NCP55..DXJ

 1
90363-36006

NCP55,59..DX,F,GL,TX,U,UL

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-28003

NCP55,59

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

NCP55..DXJ

 1
90520-33008

NCP55,59..DX,F,GL,TX,U,UL

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005

NCP55..DXJ

 1
90520-22005

NCP55,59..DX,F,GL,TX,U,UL

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52110

NCP50,55,NLP51..DXJ

 1
42345-52110

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52100

NCP5#,NLP51..DX,F,GL,TX,U,UL

 1
42345-52100

NCP50,55,NLP51..DXJ

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078

NCP55,59..DX,F,GL,TX,U,UL

 1
90949-01078

NCP50,55,NLP51..DXJ

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

NCP55,59..DX,F,GL,TX,U,UL

 1
42345-12160

NCP55..DXJ

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19060

NCP55,59..DX,F,GL,TX,U,UL

*10−1.25PX28.5−14.8

 1
90901-19060

NCP55..DXJ

*10−1.25PX28.5−14.8

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

NCP55..DXJ

 1
90521-75002

NCP55,59..DX,F,GL,TX,U,UL

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-59076

NCP55..DXJ

 1
43460-59076

NCP55,59..DX,F,GL,TX,U,UL

 1
Linked diagrams
4301
