NCP55V-EXPJK (2002)

Toyota Probox/Succeed

Production Jun 2002 - May 2003
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NZFE..NCP55,59

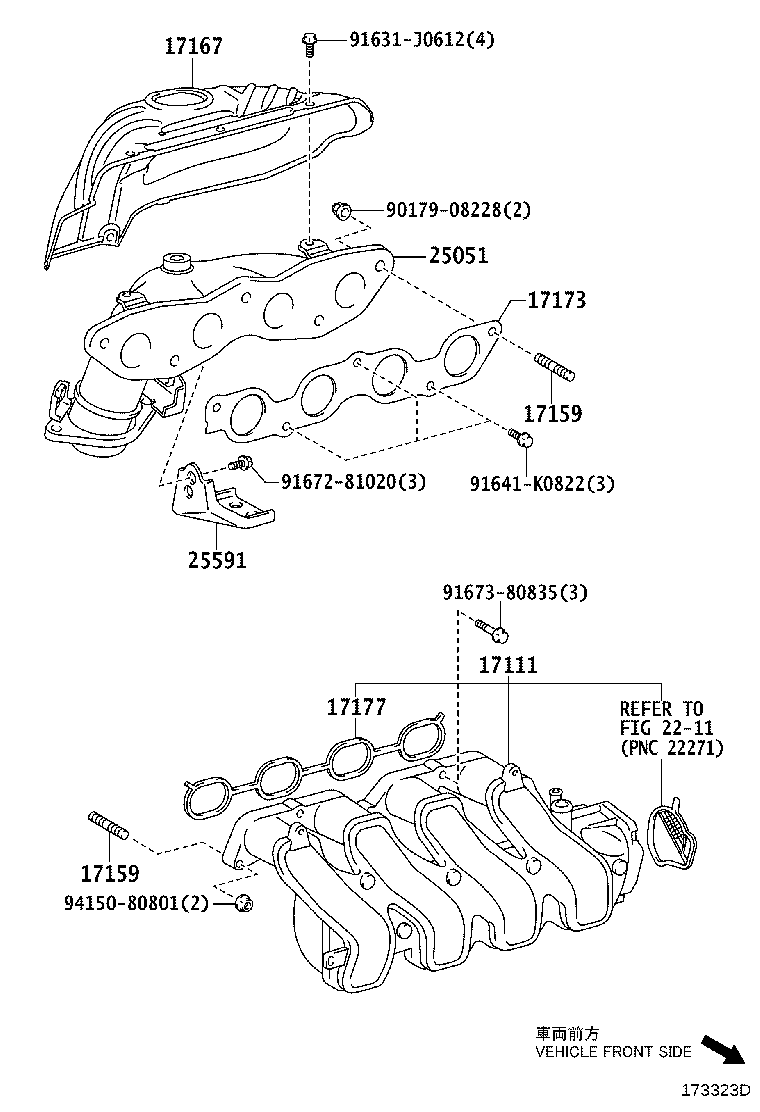

Click highlighted areas on diagram

diagram 17111 17159 17159 17167 17173 17177 2211 25051 25591 9017908228 91631J0612 91641K0822 9167281020 9167380835 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-21030

1NZFE..NCP51,55,58,59

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZ#,2NZFE..NCP5#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZ#,2NZFE..NCP5#

ｴｷｿﾞｰｽﾄ側

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZ#,2NZFE..NCP5#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZ#,2NZFE..NCP5#

ｴｷｿﾞｰｽﾄ側

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21070

1NZFE..NCP55,59

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020

1NZ#,2NZFE..NCP5#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020

1NZ#,2NZFE..NCP5#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-21010

1NZFE..NCP55,59

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21030

1NZFE..NCP55..DXJ

 1
25591-21030

1NZFE..NCP55,59..DX,F,GL,TX,U,UL

 1
Common parts
90179-08228
91631-J0612
91641-K0822
91672-81020
91673-80835
94150-80801
Linked diagrams
2211
