NCP55V-EXPGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

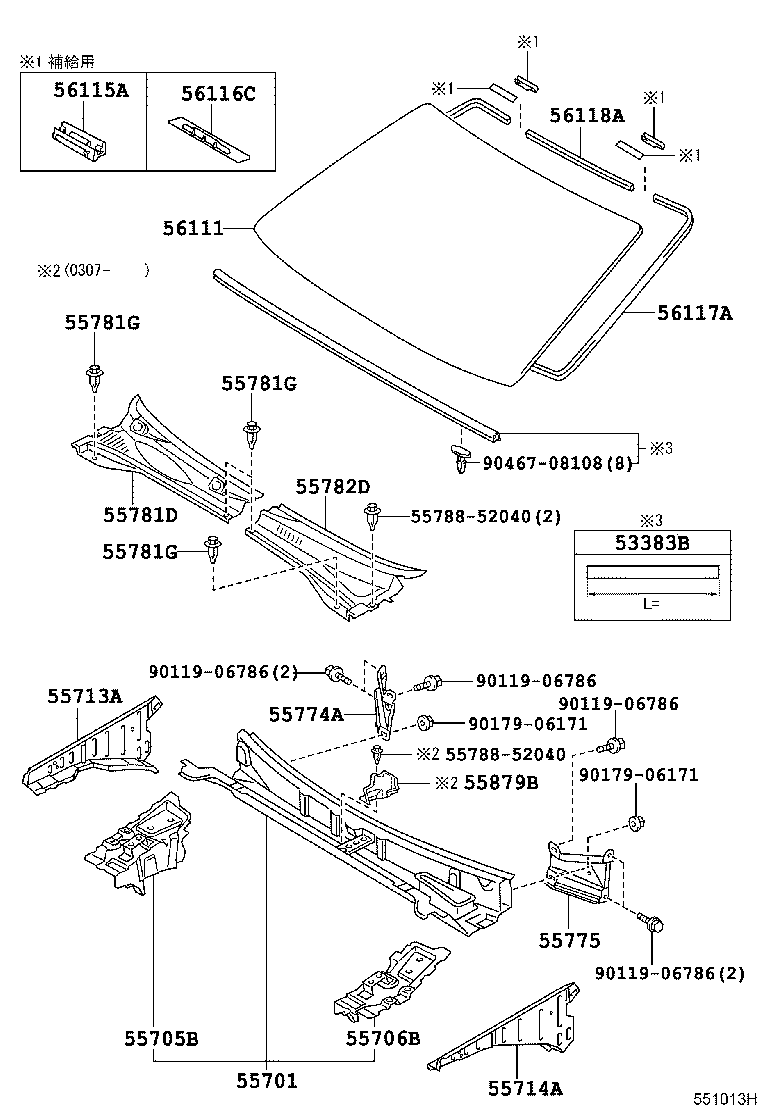

Click highlighted areas on diagram

diagram 53383B 55701 55705B 55706B 55713A 55714A 55774A 55775 55781D 55781G 55781G 55781G 55782D 5578852040 5578852040 55879B 56111 56115A 56116C 56117A 56118A 9011906786 9011906786 9011906786 9011906786 9017906171 9017906171 9046708108
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-52041

NCP5#,NLP51

長さ=1332

 1
53383-52042

NCP5#,NLP51

長さ=1341

 1
53383-52040

NCP5#,NLP51

 1
55701 - PANEL SUB-ASSY, COWL
55700-52130

NCP5#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-52040

NCP5#,NLP51

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-52040

NCP5#,NLP51

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-52050

NCP5#,NLP51

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-52050

NCP5#,NLP51

 1
55774A - BRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55774-52010

NCP5#,NLP51

 1
55775 - BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55775-52010

NCP5#,NLP51

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-52100

NCP5#,NLP51

 1
55781-52110

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
55781-52101

NCP5#,NLP51

 1
55781-52110

NCP5#,NLP51

寒冷地仕様

 1
55781-52111

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
55781-52112

NCP5#,NLP51

寒冷地仕様

 1
55781-52112

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
55781-52102

NCP5#,NLP51

 1
55781-52111

NCP5#,NLP51

寒冷地仕様

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-06133C0

NCP5#,NLP51

BLACK

 4
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-06133C0

NCP5#,NLP51

BLACK

 4
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-06133C0

NCP5#,NLP51

BLACK

 4
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-52101

NCP5#,NLP51

 1
55782-52111

NCP5#,NLP51

寒冷地仕様

 1
55782-52110

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
55782-52112

NCP5#,NLP51

寒冷地仕様

 1
55782-52112

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
55782-52100

NCP5#,NLP51

 1
55782-52111

NCP5#,NLP51

ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様)

 1
55782-52110

NCP5#,NLP51

寒冷地仕様

 1
55782-52102

NCP5#,NLP51

 1
55879B - SEAL, COWL VENT
55879-52010

NCP5#,NLP51

 1
56111 - GLASS, WINDSHIELD
56101-52130

NCP5#,NLP51

*LAM,T=4.56,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

NCP5#,NLP51

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

NCP5#,NLP51

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-52010

NCP5#,NLP51

*D,L=3015

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-52040

NCP5#,NLP51

*D,L=667

 1
Common parts
55788-52040
90119-06786
90179-06171
90467-08108
