NCP55V-EXPGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )NCP55,59

Click highlighted areas on diagram

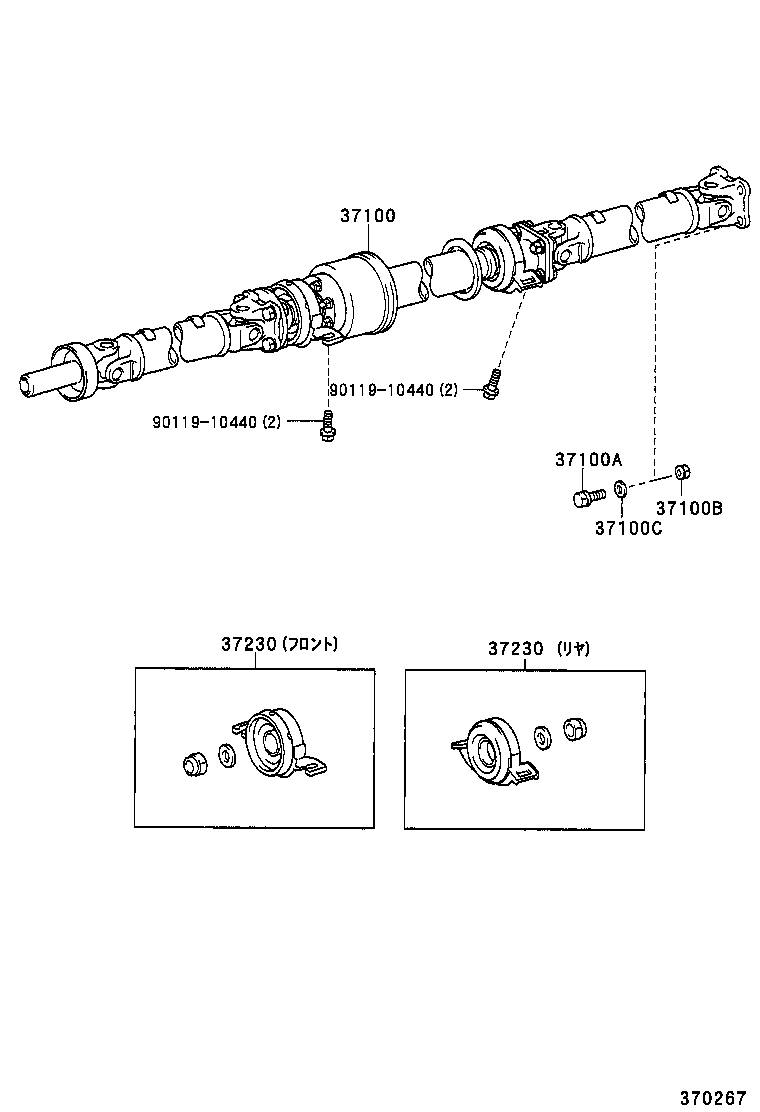

diagram 37100 37100A 37100B 37100C 37230 37230 9011910440 9011910440
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-52060

NCP55,59

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-08244

NCP55,59

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08197

NCP55,59

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
94512-00800

NCP55,59

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-59025

NCP55,59

ﾘﾔ

 1
37230-59035

NCP55,59

ﾌﾛﾝﾄ

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-59025

NCP55,59

ﾘﾔ

 1
37230-59035

NCP55,59

ﾌﾛﾝﾄ

 1
Common parts
90119-10440
