NCP55V-EXPDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

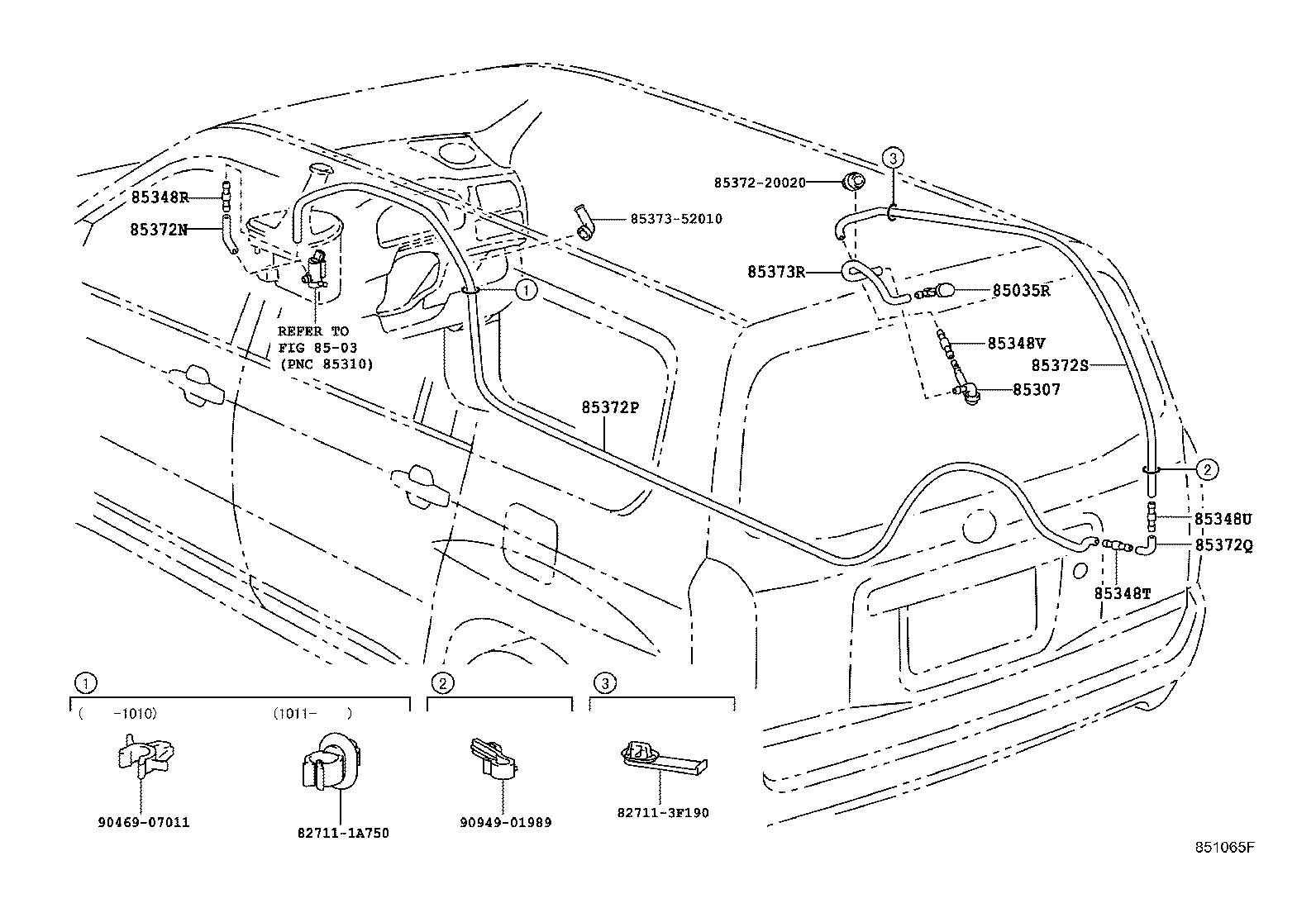

Click highlighted areas on diagram

diagram 827111A750 827113F190 8503 85035R 85307 85348R 85348T 85348U 85348V 8537220020 85372N 85372P 85372Q 85372S 8537352010 85373R 9046907011 9094901989
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-52040

NCP5#,NLP51..PROB

ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85307 - GROMMET SUB-ASSY, WASHER
85307-52010

NCP5#,NLP51..PROB

ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

NCP5#,NLP51..PROB

ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

NCP5#,NLP51..PROB

ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

NCP5#,NLP51..PROB

ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

NCP5#,NLP51..PROB

ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NCP5#,NLP51..PROB

*H,L=50,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-59324

NCP5#,NLP51..PROB

長さ=4180,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
90099-59333

NCP5#,NLP51..PROB

長さ=4190,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

NCP5#,NLP51..PROB

*H,L=50,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

NCP5#..PROB

*H,L=1210,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
90446-06006

NCP5#,NLP51..PROB

*H,L=1210,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

NCP5#,NLP51..PROB

*H,L=270,ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟｰ−有り(間欠付)

 1
Common parts
82711-1A750
82711-3F190
85372-20020
85373-52010
90469-07011
90949-01989
Linked diagrams
8503
