NCP55V-EXPDK (2002)
Toyota Probox/Succeed

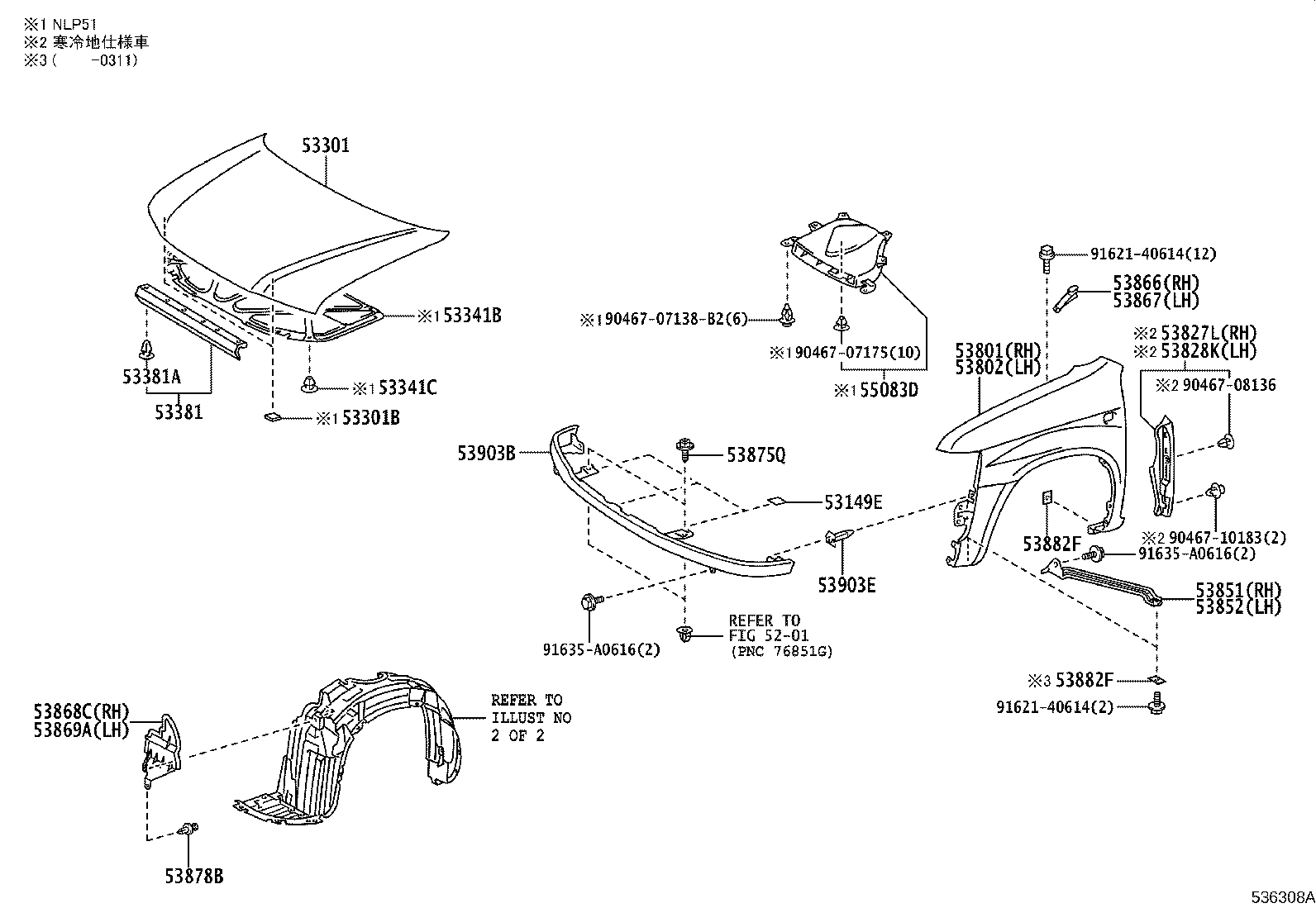

ILLUST NO. 1 OF 2(0206- )PROB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53149E - PROTECTOR, RADIATOR GRILLE | ||||
| 53149-46010 |
NCP5#,NLP51..PROB |
3 | ||
| 53149-52020 |
NCP5#,NLP51..PROB |
3 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-52100 |
NCP5#,NLP51 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-52030 |
NCP5# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
NCP5# |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-52110 |
NCP5#,NLP51..PROB |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-52110 |
NCP5#,NLP51..PROB |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-52060 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 53827-52060 |
NCP5#,NLP51 ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様) |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-52060 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| 53828-52060 |
NCP5#,NLP51 ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様) |
1 | ||
| 53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH | ||||
| 53851-52040 |
NCP5#,NLP51..PROB |
1 | ||
| 53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH | ||||
| 53852-52040 |
NCP5#,NLP51..PROB |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-52030 |
NCP5#,NLP51 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-52030 |
NCP5#,NLP51 |
1 | ||
| 53868C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-52010 |
NCP5#,NLP51..PROB ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様) |
1 | ||
| 53868-52010 |
NCP5#,NLP51..PROB |
1 | ||
| 53868-52010 |
NCP5#,NLP51..PROB 寒冷地仕様 |
1 | ||
| 53869A - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH | ||||
| 53869-52010 |
NCP5#,NLP51..PROB |
1 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-50311 |
NCP5#,NLP51..PROB |
2 | ||
| 53878B - PROTECTOR, FRONT FENDER LINER | ||||
| 55788-52040 |
NCP5#,NLP51 |
2 | ||
| 55788-52040 |
NCP5#,NLP51 |
1 | ||
| 55788-52040 |
NCP5#,NLP51 寒冷地仕様 |
2 | ||
| 55788-52040 |
NCP5#,NLP51 ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様) |
2 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NCP5#,NLP51..PROB |
2 | ||
| 53882-16030 |
NCP5#,NLP51..PROB |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NCP5#,NLP51..PROB |
2 | ||
| 53882-16030 |
NCP5#,NLP51..PROB |
4 | ||
| 53903B - PANEL SUB-ASSY, FRONT END | ||||
| 53903-52900 |
NCP5#,NLP51..PROB |
1 | ||
| 53903E - CLIP, FRONT END PANEL | ||||
| 53145-52030 |
NCP5#,NLP51..PROB |
2 | ||
| Common parts | ||||
| 90467-07138B2 | ||||
| 90467-07175 | ||||
| 90467-08136 | ||||
| 90467-10183 | ||||
| 91621-40614 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5201 | ||||

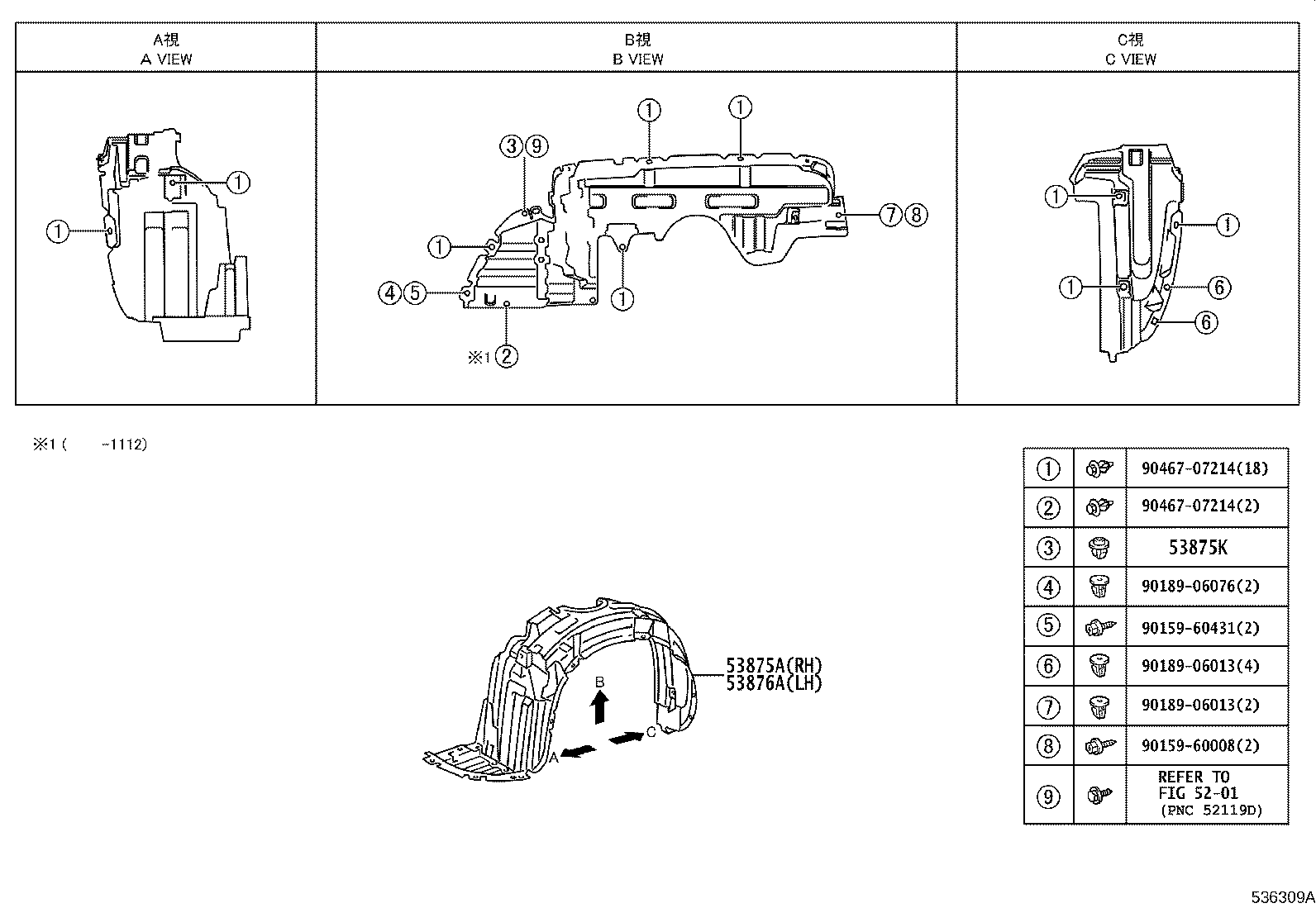

ILLUST NO. 2 OF 2(0206- )PROB
ﾌｪﾝﾀﾞﾗｲﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-52070 |
NCP5#,NLP51..PROB |
1 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-05142 |
NCP5#,NLP51..PROB |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-52070 |
NCP5#,NLP51..PROB |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90159-60431 | ||||
| 90189-06013 | ||||
| 90189-06076 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5201 | ||||
