NCP55V-EXPDK (2002)
Toyota Probox/Succeed

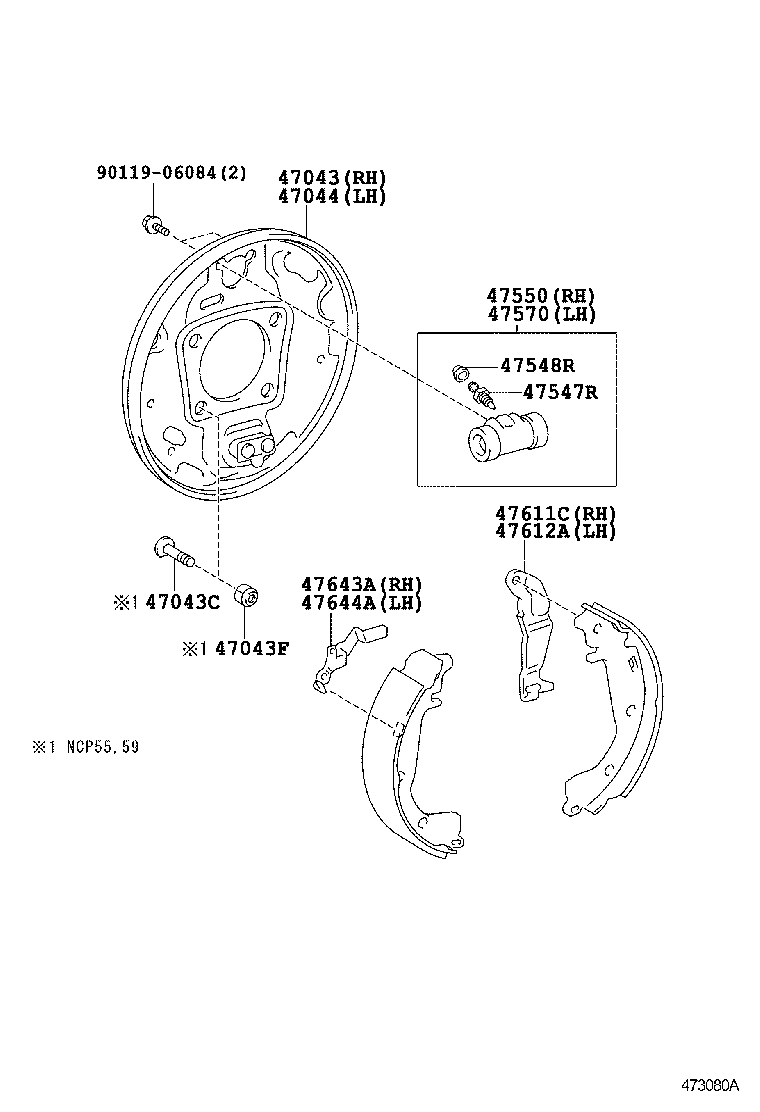

ILLUST NO. 1 OF 2(0206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-52040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-12020 |
NCP55,59 *10−1.25PX37−15 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94184-01001 |
NCP55,59 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-52040 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-63010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47550-42020 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-42020 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47550-63010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47612-33010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47611-33010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-42010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-42010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||

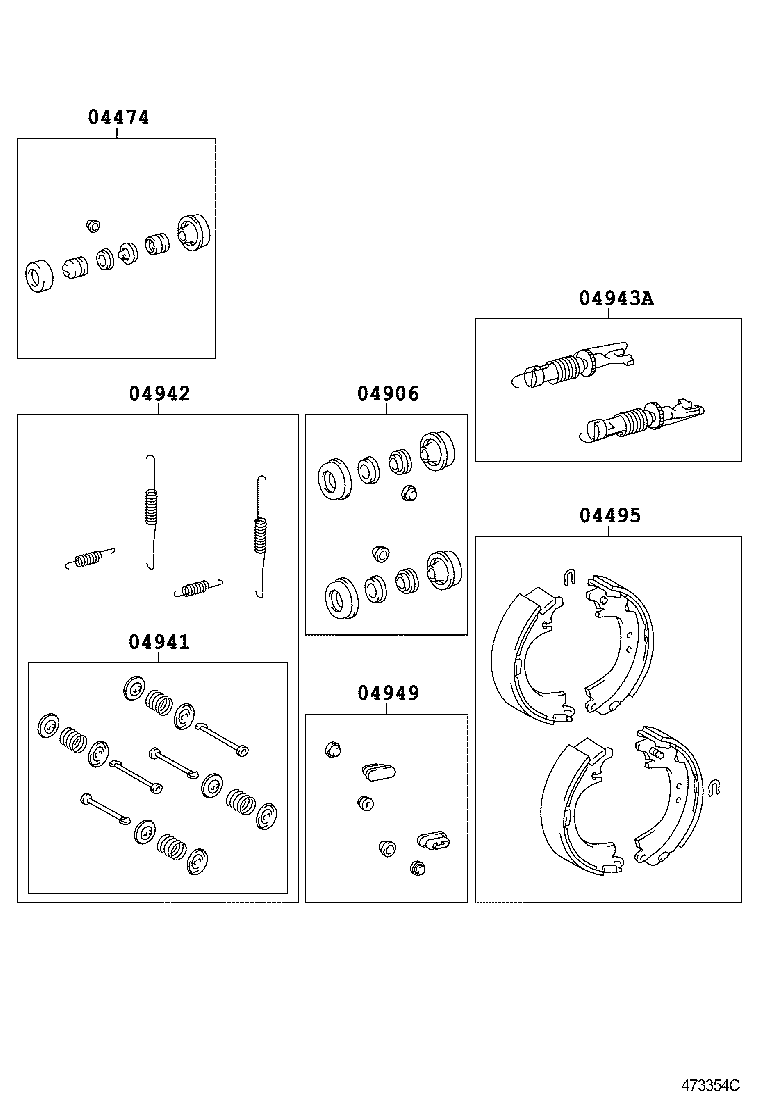

ILLUST NO. 2 OF 2(0206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-63010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 04474-42020 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-52030 |
NCP5#,NLP51..DX,F,GL,TX,U,UL ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-42020 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| 04906-20030 |
NCP55;NCP50,51..5F 無し(ABS) |
1 | ||
| 04906-42010 |
NCP5#,NLP51 |
1 | ||
| 04906-63010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-28010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-13030 |
NCP5#,NLP51 |
1 | ||
| 04942-13020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-13010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-13010 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 04949-08030 |
NCP5#,NLP51 |
1 | ||
| 04949-13010 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 04949-13010 |
NCP5#,NLP51 |
1 | ||
