NCP55V-EXMJK (2002)

Toyota Probox/Succeed

Production Jun 2002 - May 2003
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NZFE..NCP55,59

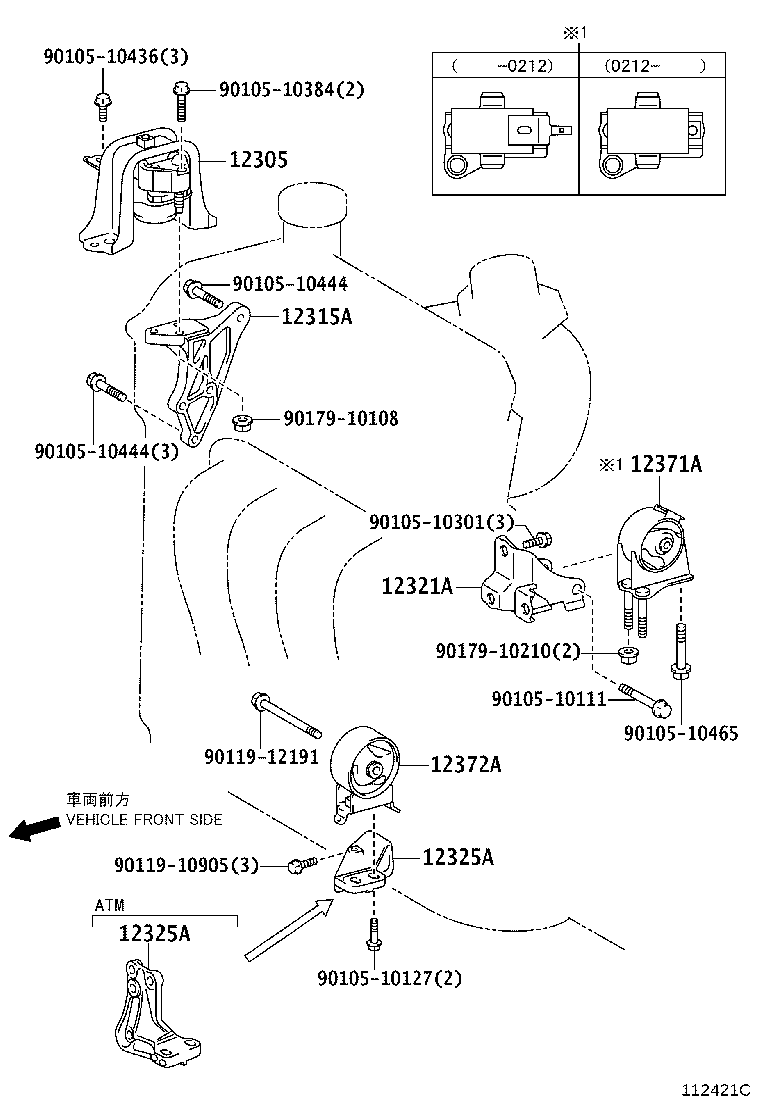

Click highlighted areas on diagram

diagram 12305 12315A 12321A 12325A 12325A 12371A 12372A 9010510111 9010510127 9010510301 9010510384 9010510436 9010510444 9010510444 9010510465 9011910905 9011912191 9017910108 9017910210
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-33030

1NZFE..NCP55,59..5F..(DX,F,GL,U,UL)

 1
12305-33030

1NZFE..NCP55..5F..DXJ

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21040

1NZ#..NCP51,52,55,58,59

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-21040

1NZFE..NCP55..5F..DXJ

 1
12321-21040

1NZFE..NCP55,59..5F..(DX,F,GL,U,UL)

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21040

1NZFE..NCP55..5F..DXJ

 1
12325-21040

1NZFE..NCP55,59..5F..(DX,F,GL,U,UL)

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21040

1NZFE..NCP55..5F..DXJ

 1
12325-21040

1NZFE..NCP55,59..5F..(DX,F,GL,U,UL)

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-21030

1NZFE..NCP55,59..5F

 1
12371-21031

1NZFE..NCP55..5F..DXJ

 1
12371-21031

1NZFE..NCP55,59..5F..(DX,F,GL,U,UL)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-23010

1NZFE,1NDTV,2NZFE..NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL)

 1
12372-23010

1N#,2NZFE..NCP50,55,NLP51..5F..DXJ

 1
Common parts
90105-10111
90105-10127
90105-10301
90105-10384
90105-10436
90105-10444
90105-10465
90119-10905
90119-12191
90179-10108
90179-10210
