NCP55V-EXMDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )NCP5#

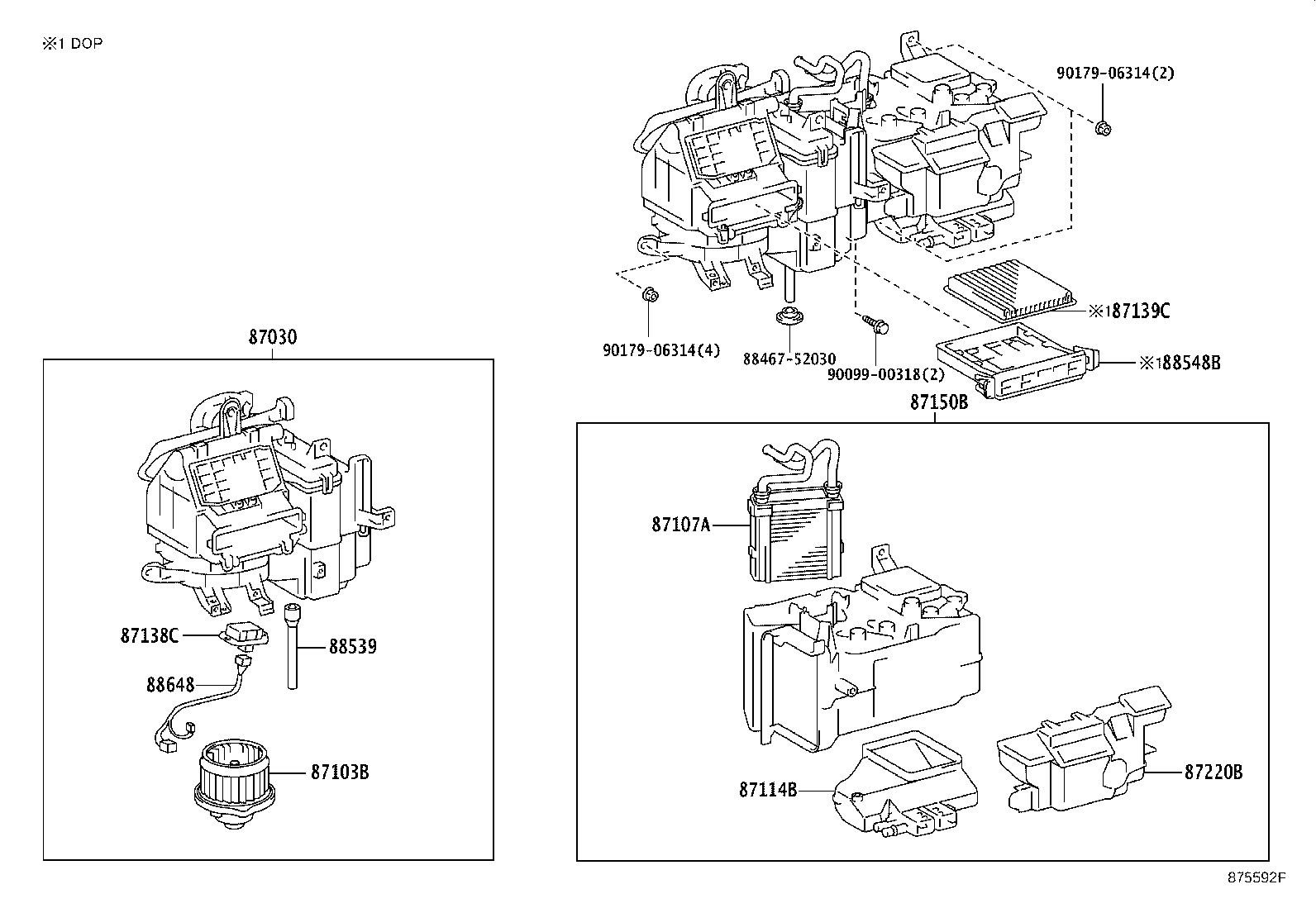

Click highlighted areas on diagram

diagram 87030 87103B 87107A 87114B 87138C 87139C 87150B 87220B 8846752030 88501 88515 88539 88548B 88625 88648 9009900318 9009914120 9009914121 9017906314 9017906314
Part # Description Qty Price
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52301

NCP5#

 1
87030-52350

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52311

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52351

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52340

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87030-52303

NCP5#

 1
87030-52300

NCP5#

 1
87030-52312

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52302

NCP5#

 1
87030-52310

NCP5#

寒冷地仕様

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52030

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52030

NCP5#,NLP51

寒冷地仕様

 1
87103-52070

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52100

NCP5#,NLP51

 1
87103-52070

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87103-52050

NCP5#,NLP51

 1
87103-52010

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP5#,NLP51

 1
87114B - COVER, HEATER
87114-52020

NCP50,51,55,58,59..DX,F,GL,TX,U,UL

寒冷地仕様

 1
87114-52010

NCP5#,NLP51

 1
87114-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52011

NCP5#

 1
87114-52021

NCP50,51,55,58,59..DX,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52021

NCP50,51,55,58,59

寒冷地仕様

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP5#,NLP51

 1
87139C - FILTER, CLEAN AIR
87139-44010

NCP5#..DX,F,GL,TX,U,UL

脱臭ﾌｨﾙﾀ

 1
87139-12010

NCP5#..DX,F,GL,TX,U,UL

補給専用微細塵ﾌｨﾙﾀ

 1
87150B - RADIATOR ASSY, HEATER
87150-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87150-52030

NCP50,51,55,58,59

寒冷地仕様

 1
87150-52010

NCP5#

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP5#,NLP51

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52030

NCP5#

 1
88501-52070

NCP5#

 1
88501-52010

NCP5#,NLP51

寒冷地仕様

 1
88515 - VALVE, COOLER EXPANSION
88515-52040

NCP5#

 1
88515-52080

NCP5#

 1
88515-52020

NCP5#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP5#,NLP51

 1
88539-52010

NCP5#..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88548B - CASE, AIR FILTER
88548-52010

NCP5#,NLP51

ｸﾘｰﾝ ｴｱ ﾌｨﾙﾀｰ−有り

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

NCP5#,NLP51

 1
88625-52090

NCP5#,NLP51

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88648-52020

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
88648-52020

NCP5#,NLP51

 1
88648-52120

NCP5#,NLP51

 1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
Common parts
88467-52030
90099-00318
90099-14120
90099-14121
90179-06314

(0206- )NCP5#

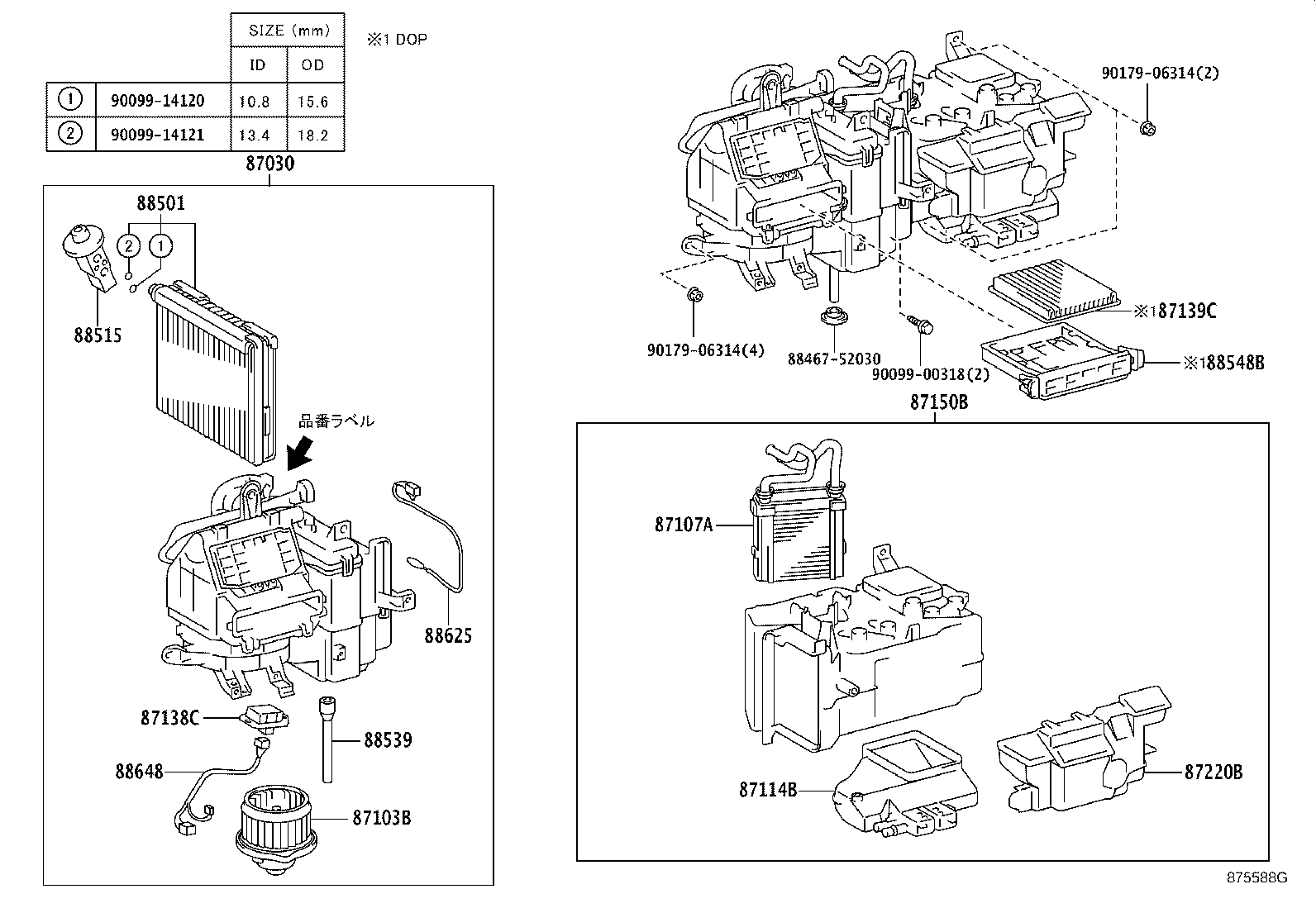

Click highlighted areas on diagram

ｶﾝﾚｲﾁ ｼﾖｳ

diagram 87030 87103B 87106D 87107A 87114B 87116A 87138C 87139C 87150B 87220B 87391 8846752030 88501 88515 88539 88548B 88625 88648 88648N 88650E 9009900318 9009914120 9009914121 9017906314 9017906314
Part # Description Qty Price
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52301

NCP5#

 1
87030-52350

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52311

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52351

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52340

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87030-52303

NCP5#

 1
87030-52300

NCP5#

 1
87030-52312

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52302

NCP5#

 1
87030-52310

NCP5#

寒冷地仕様

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52030

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52030

NCP5#,NLP51

寒冷地仕様

 1
87103-52070

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52100

NCP5#,NLP51

 1
87103-52070

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87103-52050

NCP5#,NLP51

 1
87103-52010

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87106-52030

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP5#,NLP51

 1
87114B - COVER, HEATER
87114-52020

NCP50,51,55,58,59..DX,F,GL,TX,U,UL

寒冷地仕様

 1
87114-52010

NCP5#,NLP51

 1
87114-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52011

NCP5#

 1
87114-52021

NCP50,51,55,58,59..DX,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52021

NCP50,51,55,58,59

寒冷地仕様

 1
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP5#,NLP51

 1
87139C - FILTER, CLEAN AIR
87139-44010

NCP5#..DX,F,GL,TX,U,UL

脱臭ﾌｨﾙﾀ

 1
87139-12010

NCP5#..DX,F,GL,TX,U,UL

補給専用微細塵ﾌｨﾙﾀ

 1
87150B - RADIATOR ASSY, HEATER
87150-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87150-52030

NCP50,51,55,58,59

寒冷地仕様

 1
87150-52010

NCP5#

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP5#,NLP51

 1
87391 - COVER, BLOWER MOTOR
87391-52010

NCP5#,NLP51

寒冷地仕様

 1
87391-52010

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87391-52011

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87391-52011

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52030

NCP5#

 1
88501-52070

NCP5#

 1
88501-52010

NCP5#,NLP51

寒冷地仕様

 1
88515 - VALVE, COOLER EXPANSION
88515-52040

NCP5#

 1
88515-52080

NCP5#

 1
88515-52020

NCP5#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP5#,NLP51

 1
88539-52010

NCP5#..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88548B - CASE, AIR FILTER
88548-52010

NCP5#,NLP51

ｸﾘｰﾝ ｴｱ ﾌｨﾙﾀｰ−有り

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

NCP5#,NLP51

 1
88625-52090

NCP5#,NLP51

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88648-52020

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
88648-52020

NCP5#,NLP51

 1
88648-52120

NCP5#,NLP51

 1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
88648N - WIRING, COOLER, NO.2
88648-52010

NCP50,51,55,58,59

寒冷地仕様

 1
88648-52010

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52150

NCP50,51,55,58,59

寒冷地仕様

 1
Common parts
88467-52030
90099-00318
90099-14120
90099-14121
90179-06314

(0206- )NCP50,51,55,58,59..DX,DXJ,F,TX,U

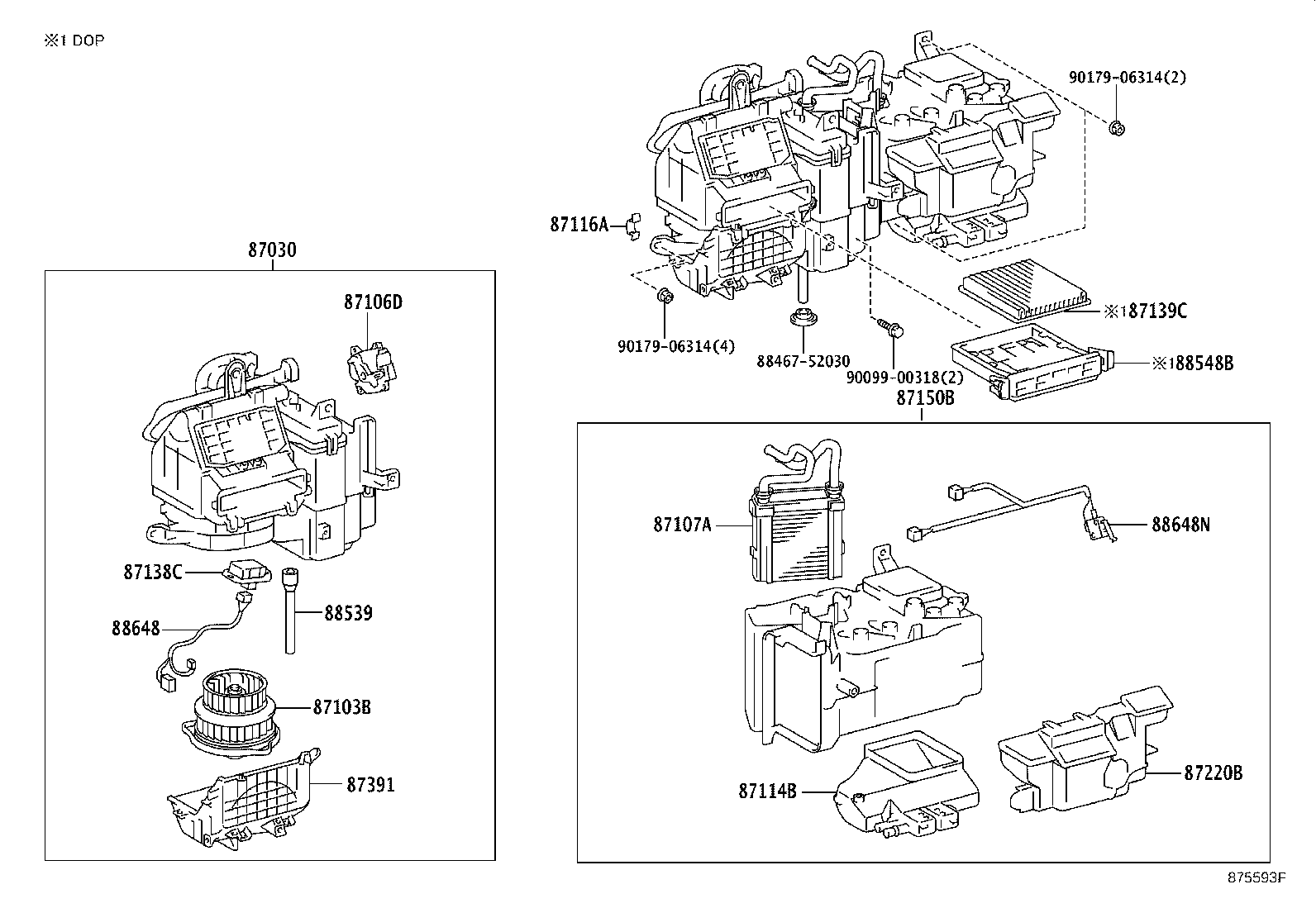

Click highlighted areas on diagram

ﾅｼ(ｴｱｺﾝ)

diagram 87030 87103B 87107A 87114B 87138C 87139C 87150B 87220B 8846752030 88539 88548B 88648 9009900318 9017906314 9017906314
Part # Description Qty Price
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52301

NCP5#

 1
87030-52350

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52311

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52351

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52340

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87030-52303

NCP5#

 1
87030-52300

NCP5#

 1
87030-52312

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52302

NCP5#

 1
87030-52310

NCP5#

寒冷地仕様

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52030

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52030

NCP5#,NLP51

寒冷地仕様

 1
87103-52070

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52100

NCP5#,NLP51

 1
87103-52070

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87103-52050

NCP5#,NLP51

 1
87103-52010

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP5#,NLP51

 1
87114B - COVER, HEATER
87114-52020

NCP50,51,55,58,59..DX,F,GL,TX,U,UL

寒冷地仕様

 1
87114-52010

NCP5#,NLP51

 1
87114-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52011

NCP5#

 1
87114-52021

NCP50,51,55,58,59..DX,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52021

NCP50,51,55,58,59

寒冷地仕様

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP5#,NLP51

 1
87139C - FILTER, CLEAN AIR
87139-44010

NCP5#..DX,F,GL,TX,U,UL

脱臭ﾌｨﾙﾀ

 1
87139-12010

NCP5#..DX,F,GL,TX,U,UL

補給専用微細塵ﾌｨﾙﾀ

 1
87150B - RADIATOR ASSY, HEATER
87150-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87150-52030

NCP50,51,55,58,59

寒冷地仕様

 1
87150-52010

NCP5#

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP5#,NLP51

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP5#,NLP51

 1
88539-52010

NCP5#..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88548B - CASE, AIR FILTER
88548-52010

NCP5#,NLP51

ｸﾘｰﾝ ｴｱ ﾌｨﾙﾀｰ−有り

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88648-52020

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
88648-52020

NCP5#,NLP51

 1
88648-52120

NCP5#,NLP51

 1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
Common parts
88467-52030
90099-00318
90179-06314

(0206- )NCP50,51,55,58,59..DX,DXJ,F,TX,U

Click highlighted areas on diagram

ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ)

diagram 87030 87103B 87106D 87107A 87114B 87116A 87138C 87139C 87150B 87220B 87391 8846752030 88539 88548B 88648 88648N 9009900318 9017906314 9017906314
Part # Description Qty Price
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52301

NCP5#

 1
87030-52350

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52311

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52351

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87030-52340

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87030-52303

NCP5#

 1
87030-52300

NCP5#

 1
87030-52312

NCP50,51,55,58,59

寒冷地仕様

 1
87030-52302

NCP5#

 1
87030-52310

NCP5#

寒冷地仕様

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52030

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52030

NCP5#,NLP51

寒冷地仕様

 1
87103-52070

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87103-52100

NCP5#,NLP51

 1
87103-52070

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87103-52050

NCP5#,NLP51

 1
87103-52010

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87106-52030

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP5#,NLP51

 1
87114B - COVER, HEATER
87114-52020

NCP50,51,55,58,59..DX,F,GL,TX,U,UL

寒冷地仕様

 1
87114-52010

NCP5#,NLP51

 1
87114-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52011

NCP5#

 1
87114-52021

NCP50,51,55,58,59..DX,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87114-52021

NCP50,51,55,58,59

寒冷地仕様

 1
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP5#,NLP51

 1
87139C - FILTER, CLEAN AIR
87139-44010

NCP5#..DX,F,GL,TX,U,UL

脱臭ﾌｨﾙﾀ

 1
87139-12010

NCP5#..DX,F,GL,TX,U,UL

補給専用微細塵ﾌｨﾙﾀ

 1
87150B - RADIATOR ASSY, HEATER
87150-52030

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87150-52030

NCP50,51,55,58,59

寒冷地仕様

 1
87150-52010

NCP5#

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP5#,NLP51

 1
87391 - COVER, BLOWER MOTOR
87391-52010

NCP5#,NLP51

寒冷地仕様

 1
87391-52010

NCP5#..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
87391-52011

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
87391-52011

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP5#,NLP51

 1
88539-52010

NCP5#..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88548B - CASE, AIR FILTER
88548-52010

NCP5#,NLP51

ｸﾘｰﾝ ｴｱ ﾌｨﾙﾀｰ−有り

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

ｴｱｺﾝ−無し

 1
88648-52020

NCP50,51,55,58,59,NLP51

寒冷地仕様

 1
88648-52020

NCP5#,NLP51

 1
88648-52120

NCP5#,NLP51

 1
88648-52020

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
88648N - WIRING, COOLER, NO.2
88648-52010

NCP50,51,55,58,59

寒冷地仕様

 1
88648-52010

NCP50,51,55,58,59..DX,DXJ,F,TX,U

寒冷地仕様&ｴｱｺﾝ−無し

 1
Common parts
88467-52030
90099-00318
90179-06314
