NCP51V-FXPGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

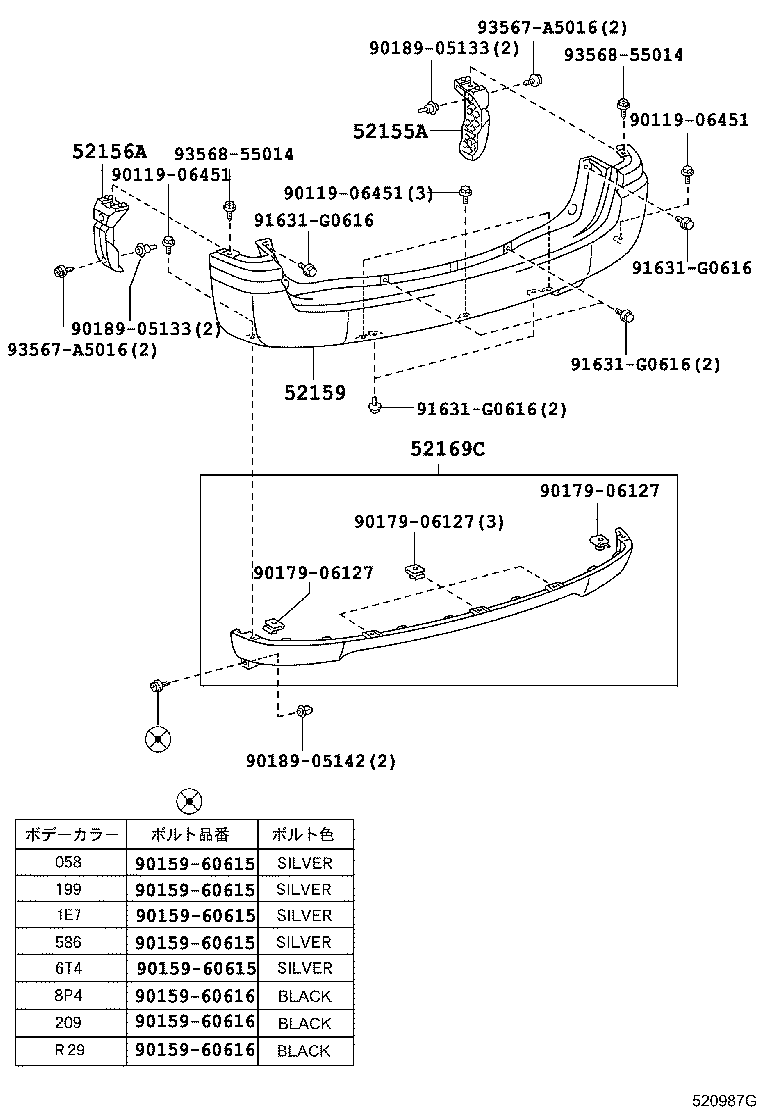

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52169C 9011906451 9011906451 9011906451 9015960615 9015960615 9015960615 9015960615 9015960615 9015960616 9015960616 9015960616 9017906127 9017906127 9017906127 9018905133 9018905133 9018905142 91631G0616 91631G0616 91631G0616 91631G0616 93567A5016 93567A5016 9356855014 9356855014
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52030

NCP51,55,58,59,NLP51..SUCD

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52030

NCP51,55,58,59,NLP51..SUCD

 1
52159 - COVER, REAR BUMPER
52159-52280

NCP51,55,58,59,NLP51..SUCD

塗装不要

 1
52159-52290B2

NCP51,55,58,59..TX,UL

ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ,OPAL SILVER P.M.,058 ,199 ,1E7 ,4T8 ,586

 1
52159-52270B2

NCP50,51,55,58,59..F,GL

ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ,-,058 ,199 ,1E7 ,4T8 ,586

 1
52159-52270B1

NCP50,51,55,58,59,NLP51..F,GL

ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ,DK.GRAY ME.,8P4

 1
52159-52290B1

NCP51,55,58,59,NLP51..TX,UL

ﾊﾞﾝﾊﾟ−ｶﾗｰｴﾃﾞｨｼｮﾝ,DK.GRAY ME.,8P4

 1
52169C - COVER, REAR BUMPER, LOWER
52169-52090A0

NCP51,55,58,59,NLP51..SUCD

WHITE,058

 1
52169-52090B0

NCP51,55,58,59,NLP51..SUCD

SILVER ME.,199

 1
52169-52091B0

NCP51,55,58,59..SUCD

SILVER ME.,199

 1
52169-52090F0

NCP51,55,58,59,NLP51..SUCD

CHAMPAGNE ME.,586

 1
52169-52090J0

NCP51,55,58,59,NLP51..SUCD

DK.BLUE M.M.,8P4

 1
52169-52091F0

NCP51,55,58,59..SUCD

CHAMPAGNE ME.,586

 1
52169-52091B1

NCP51,55,58,59..SUCD

SILVER M.M.,1E7

 1
52169-52091A0

NCP51,55,58,59..SUCD

WHITE,058

 1
52169-52091J0

NCP51,55,58,59..SUCD

DK.BLUE M.M.,8P4

 1
52169-52091E0

NCP51,55,58,59..SUCD

BEIGE ME.,4T8

 1
Common parts
90119-06451
90159-60615
90159-60616
90179-06127
90189-05133
90189-05142
91631-G0616
93567-A5016
93568-55014
