NCP51V-FXPGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NZ#,2NZFE..NCP50,51,52,58

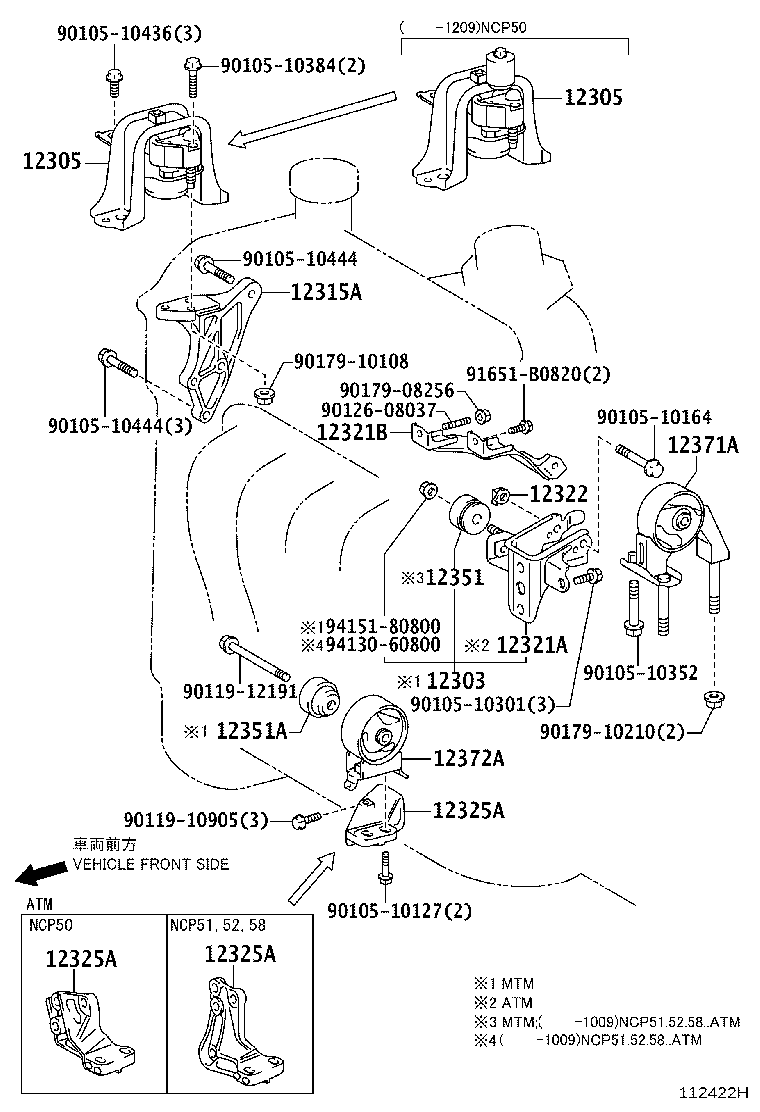

Click highlighted areas on diagram

diagram 12303 12305 12305 12315A 12321A 12321B 12322 12325A 12325A 12325A 12351 12351A 12371A 12372A 9010510127 9010510164 9010510301 9010510352 9010510384 9010510436 9010510444 9010510444 9011910905 9011912191 9012608037 9017908256 9017910108 9017910210 91651B0820 9413060800 9415180800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21021

1NZ#..NCP51,52,58

 1
12305-21020

1NZ#..NCP51,52,58

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21021

1NZ#..NCP51,52,58

 1
12305-21020

1NZ#..NCP51,52,58

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21041

1NZ#..NCP51,52,55,58,59

 1
12315-21042

1NZ#..NCP51,52,55,58,59

 1
12315-21040

1NZ#..NCP51,52,55,58,59

 1
12315-21043

1NZ#..NCP51,52,55,58,59

 1
12315-21044

1NZ#..NCP51,52,55,58,59

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-21090

1NZFE..NCP51,58..4FC

 1
12321-21150

1NZ#..NCP51,52,58..4FC

 1
12321-21140

1NZ#..NCP51,52,58..4FC

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52010

1NZ#,2NZFE..NCP50,51,52,58..DX,F,GL,TX,U,UL

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-23020

1NZ#,1NDTV,2NZFE..NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21060

1NZ#..NCP51,52,58..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21060

1NZ#..NCP51,52,58..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21060

1NZ#..NCP51,52,58..4FC

 1
12351 - DAMPER, ENGINE MOUNTING
12351-23010

1NZ#..NCP51,52,58..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-21140

1NZ#,2NZFE..NCP50,51,52,58..4FC..(DX,F,GL,TX,U,UL)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-23050

1NZ#..NCP51,52,58..4FC

 1
12372-21060

1NZ#..NCP51,52,58..4FC

 1
Common parts
90105-10127
90105-10164
90105-10301
90105-10352
90105-10384
90105-10436
90105-10444
90119-10905
90119-12191
90126-08037
90179-08256
90179-10108
90179-10210
91651-B0820
94130-60800
94151-80800
