NCP51V-FXMGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NZ#,2NZFE..NCP50,51,52,58

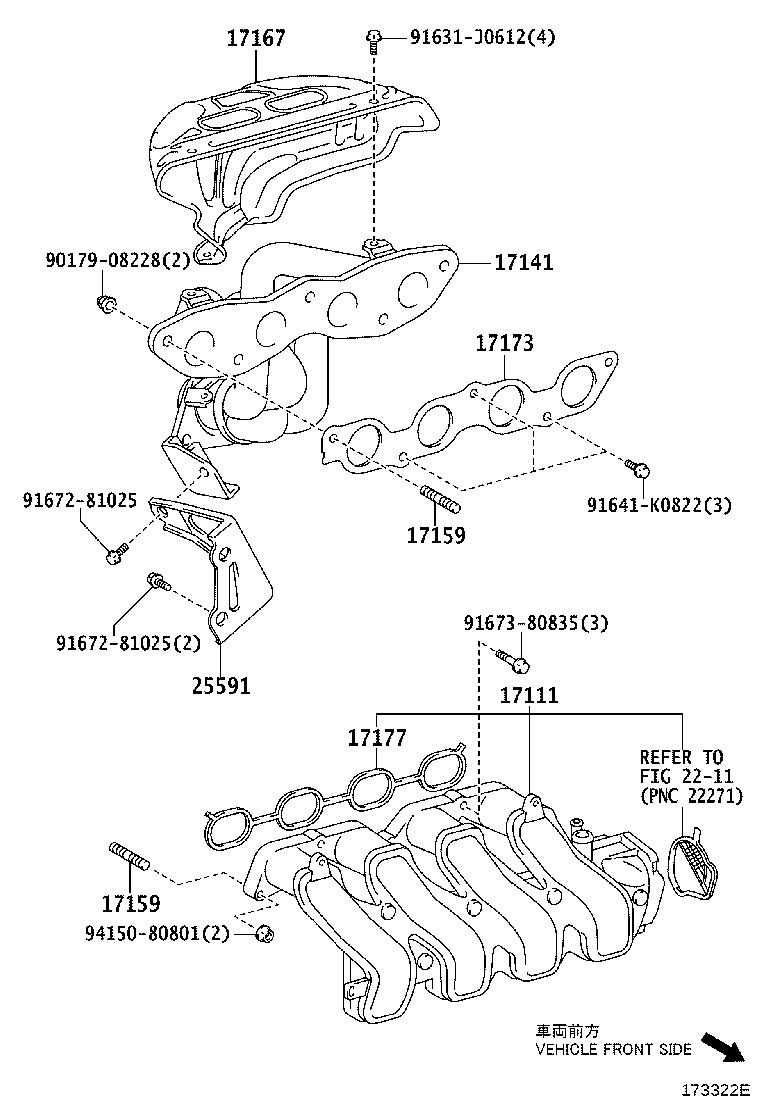

Click highlighted areas on diagram

diagram 17111 17141 17159 17159 17167 17173 17177 2211 25591 9017908228 91631J0612 91641K0822 9167281025 9167281025 9167380835 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-21030

1NZFE..NCP51,55,58,59

 1
17120-21020

1NZ#..NCP51,52,55,58,59

 1
17141 - MANIFOLD, EXHAUST
17141-21090

1NZ#..NCP51,52,58

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZ#,2NZFE..NCP5#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZ#,2NZFE..NCP5#

ｴｷｿﾞｰｽﾄ側

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZ#,2NZFE..NCP5#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZ#,2NZFE..NCP5#

ｴｷｿﾞｰｽﾄ側

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21060

1NZ#,2NZFE..NCP50,51,52,58

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020

1NZ#,2NZFE..NCP5#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020

1NZ#,2NZFE..NCP5#

 1
17177-21030

1NZ#,2NZFE..NCP5#

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21020

1NZ#,1NDTV,2NZFE..NCP50,51,52,58,NLP51

 1
Common parts
90179-08228
91631-J0612
91641-K0822
91672-81025
91673-80835
94150-80801
Linked diagrams
2211
