NCP51V-EXPDK (2002)
Toyota Probox/Succeed

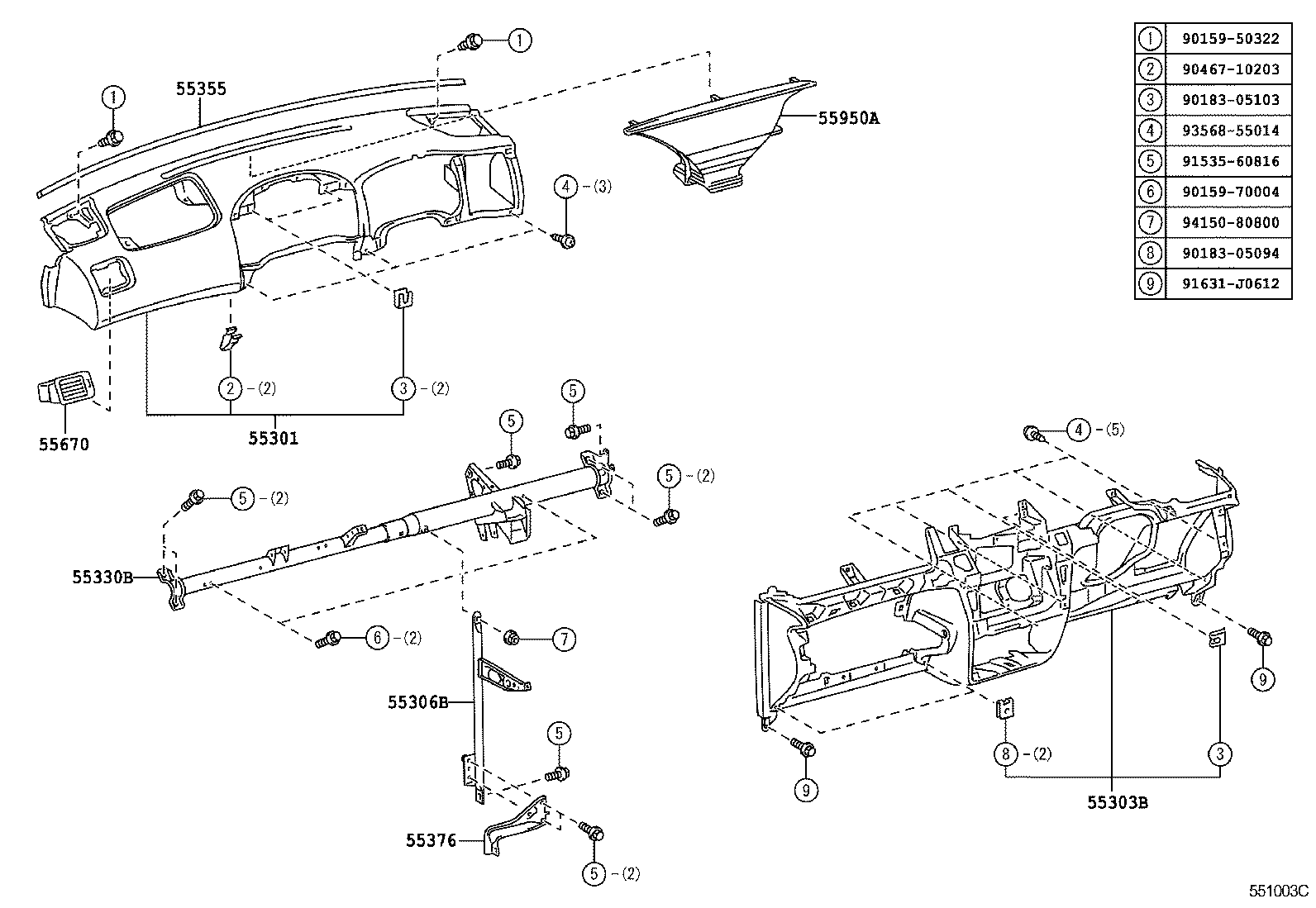

ILLUST NO. 1 OF 2(0206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-52080B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52050B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-52080 |
NCP5#,NLP51 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-52190 |
NCP5#..4FC |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52050 |
NCP5#,NLP51 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52070 |
NCP50,51,55,58,59 |
1 | ||
| 55376-52020 |
NCP50,51,55,58,59..DX,F,GL,TX,U,UL |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12270B2 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52060 |
NCP5#,NLP51 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-70004 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 91535-60816 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| 94150-80800 | ||||

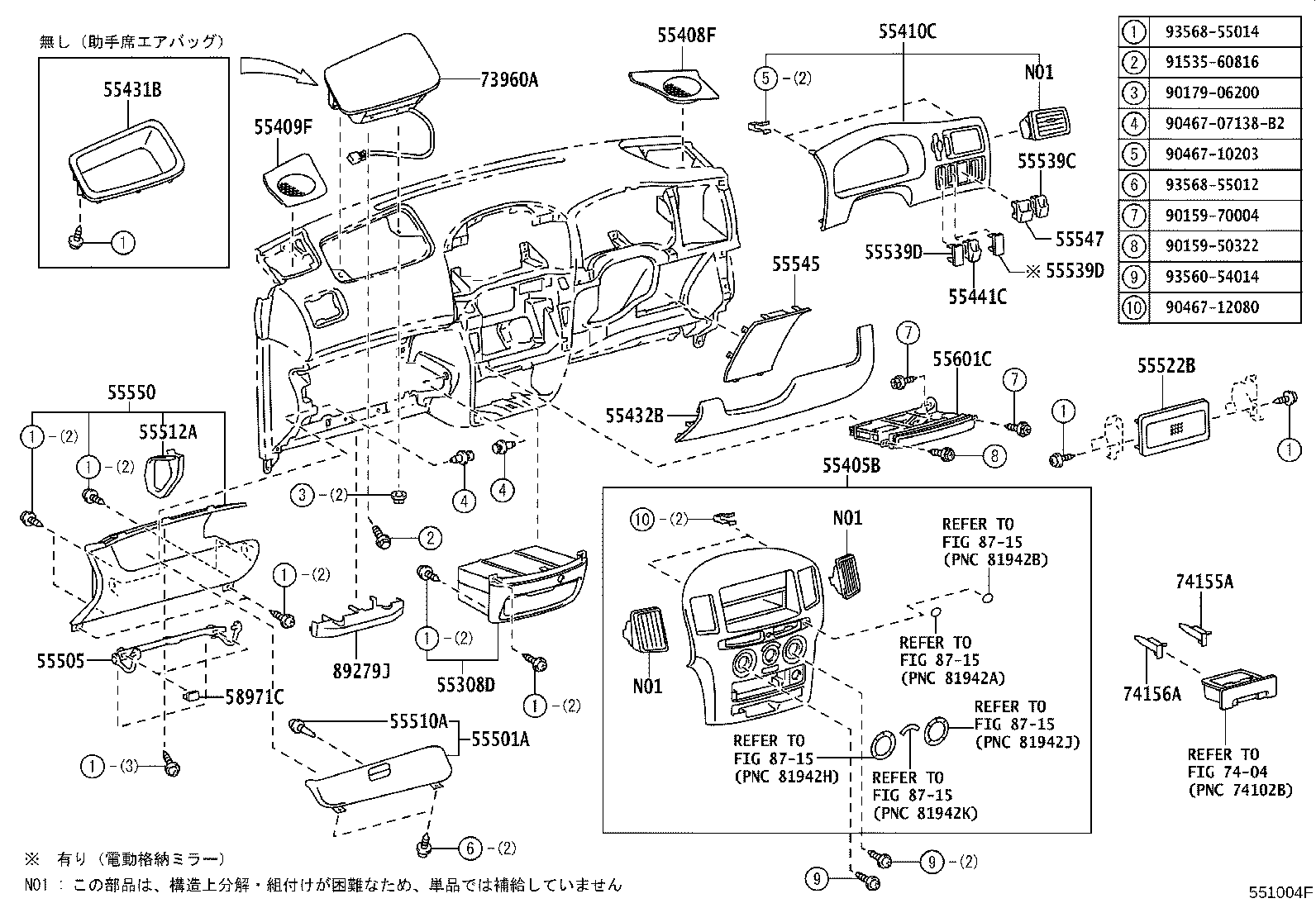

ILLUST NO. 2 OF 2(0206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52050B0 |
NCP5#,NLP51 ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V),DK.GRAY,TRIM1# |
1 | ||
| 55308-52070B0 |
NCP5# DK.GRAY,TRIM1# |
1 | ||
| 55308-52100B0 |
NCP5# ｱｸｾｻﾘｰｺﾈｸﾀ−有り(AC100V),DK.GRAY,TRIM1# |
1 | ||
| 55308-52040B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52200B0 |
NCP5#,NLP51 ｵｰﾃﾞｨｵ−AVN−E AM/FM/CD 2ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 55405-52200B0 |
NCP5# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 2ｽﾋﾟｰｶ 無し(ｶﾊﾞｰ),DK.GRAY,TRIM1# |
1 | ||
| 55405-52200B0 |
NCP5#,NLP51 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 55405-52200B0 |
NCP5# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 有り(ｶﾊﾞｰ),DK.GRAY,TRIM1# |
1 | ||
| 55405-52190B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-52030B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-52030B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-52010B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-52040 |
NCP5#;NLP51..DXJ SRSｴｱﾊﾞｯｸﾞ−運転席のみ |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-52020B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-52040C0 |
NCP50,51,55,NLP51..DX,U 電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55,NLP51..DX 電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,BLACK,TRIM1# |
1 | ||
| 55441-52040C0 |
NCP50,51,55..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,BLACK,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-52040B0 |
NCP5#,NLP51 ｱﾝﾀﾞｰﾄﾚｲ−有り(蓋付),DK.GRAY,TRIM1# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-52010B0 |
NCP5#,NLP51 ｱﾝﾀﾞｰﾄﾚｲ−有り(蓋付),DK.GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04079 |
NCP5#,NLP51 ｱﾝﾀﾞｰﾄﾚｲ−有り(蓋付) |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-52030B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NCP5#,NLP51 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52020C0 |
NCP5#,NLP51 BLACK,TRIM1# |
1 | ||
| 55539-52020C0 |
NCP5#,NLP51 有り(ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ),BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
NCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP5#,NLP51 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX,U ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
NCP50,51,55,58,59,NLP51..DX,F,GL,TX,U,UL BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP5#,NLP51 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX,U ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
NCP50,51,55,NLP51..DX 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り,BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-52020B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-42020C0 |
NCP5#..DX,F BLACK,TRIM1# |
1 | ||
| 55547-42020C0 |
NCP50,51,52,55..DX 電動ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55547-42020C0 |
NCP50,51,52,55,NLP51..DX 電動格納式ﾄﾞｱﾐﾗｰ有り,BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52070B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-52010B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 58971C - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
NCP5#,NLP51 ｱﾝﾀﾞｰﾄﾚｲ−有り(蓋付) |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73970-52090B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 74155A - RAIL, FRONT ASH RECEPTACLE GUIDE, NO.1 | ||||
| 74155-52020 |
NCP5#,NLP51 |
1 | ||
| 74156A - RAIL, FRONT ASH RECEPTACLE GUIDE, NO.2 | ||||
| 74156-52020 |
NCP5#,NLP51 |
1 | ||
| 89279J - COVER | ||||
| 89279-52020 |
NCP5#,NLP51 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-70004 | ||||
| 90179-06200 | ||||
| 90467-07138B2 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91535-60816 | ||||
| 93560-54014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8715 | ||||
