NCP51V-EXPDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

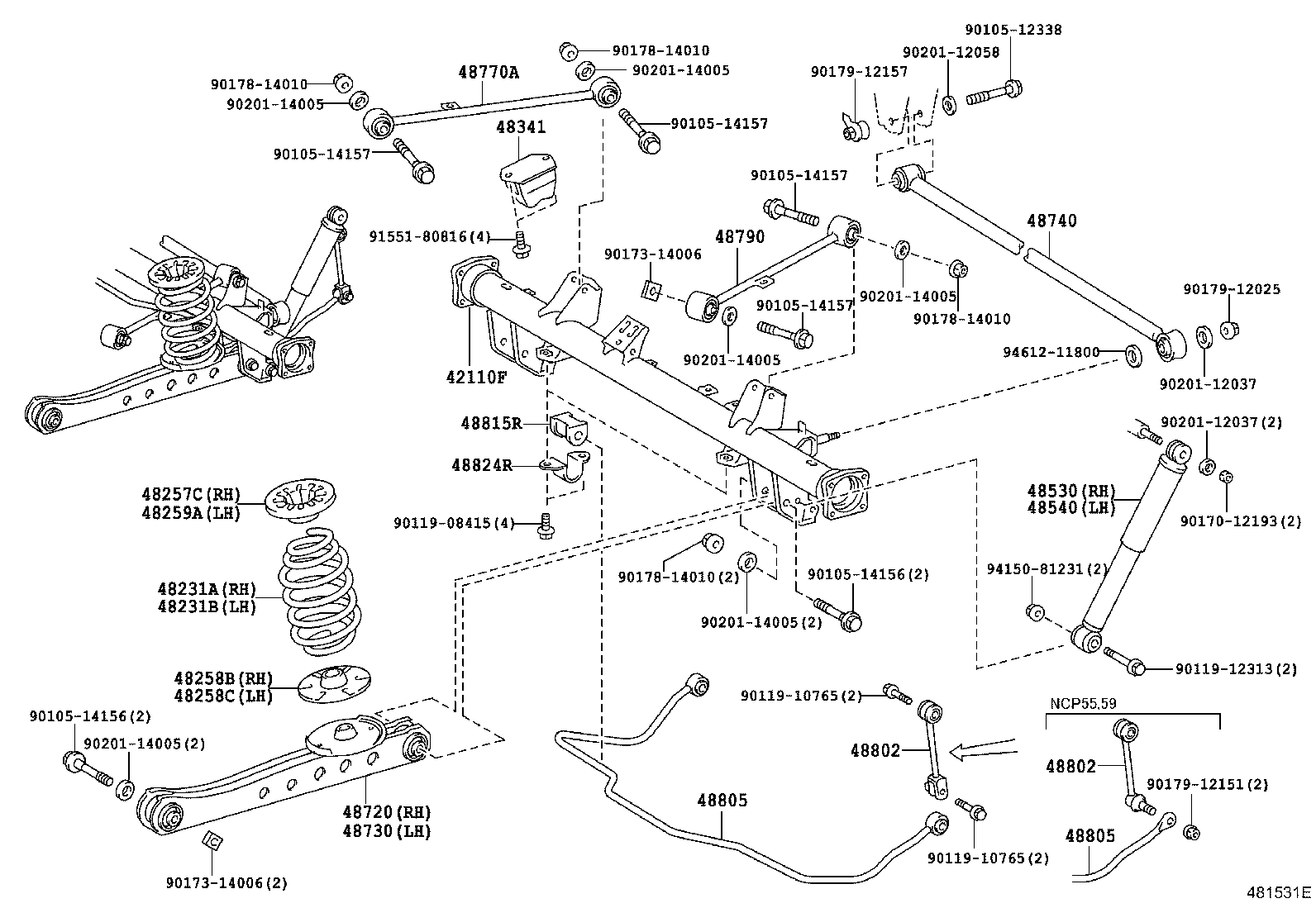

Click highlighted areas on diagram

diagram 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48341 48530 48540 48720 48730 48740 48770A 48790 48802 48802 48805 48805 48815R 48824R 9010512338 9010514156 9010514156 9010514157 9010514157 9010514157 9010514157 9011908415 9011910765 9011910765 9011912313 9017012193 9017314006 9017314006 9017814010 9017814010 9017814010 9017814010 9017912025 9017912151 9017912157 9020112037 9020112037 9020112058 9020114005 9020114005 9020114005 9020114005 9020114005 9020114005 9155180816 9415081231 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-52210

NLP51;NCP50,51..4FC;NCP50..5F..DXJ

็„กใ—(ABS)

 1
42110-52200

NCP50,51,52,58,NLP51

 1
48231A - SPRING, COIL, REAR RH
48231-52450

NCP50,51,NLP51..PROB

 1
48231B - SPRING, COIL, REAR LH
48231-52450

NCP50,51,NLP51..PROB

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-52030

NCP5#,NLP51

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-52020

NCP5#,NLP51

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-52020

NCP5#,NLP51

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-52030

NCP5#,NLP51

 1
48341 - BUMPER, REAR SPRING
48341-52050

NCP50,51,52,58,NLP51

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-52440

NLP51..DXJ;NCP50,51,52,58

๏พ๏ฝฐ๏ฝธ 48530โˆ’52440

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-52440

NLP51..DXJ;NCP50,51,52,58

๏พ๏ฝฐ๏ฝธ 48530โˆ’52440

 1
48720 - ARM ASSY, LOWER CONTROL, RH
48720-52030

NCP55;NCP50,51,52,58,59,NLP51..DX,DXJ,F,GL,TX

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48720-52030

NCP55;NCP50,51,52,58,59,NLP51..DX,DXJ,F,GL,TX

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-52030

NCP50,51,52,58,NLP51

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48710-52040

NCP50,51,52,58,NLP51

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48710-52040

NCP50,51,52,58,NLP51

 1
48802 - LINK SUB-ASSY, STABILIZER
48802-52030

NCP50,51,52,58,NLP51

 2
48802 - LINK SUB-ASSY, STABILIZER
48802-52030

NCP50,51,52,58,NLP51

 2
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-52040

NCP50,51,52,58,NLP51

 1
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-52040

NCP50,51,52,58,NLP51

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-52060

NCP5#,NLP51

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-28170

NCP5#,NLP51

 2
Common parts
90105-12338
90105-14156
90105-14157
90119-08415
90119-10765
90119-12313
90170-12193
90173-14006
90178-14010
90179-12025
90179-12151
90179-12157
90201-12037
90201-12058
90201-14005
91551-80816
94150-81231
94612-11800
