NCP51V-EXMGK (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Sep 2014
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )5F

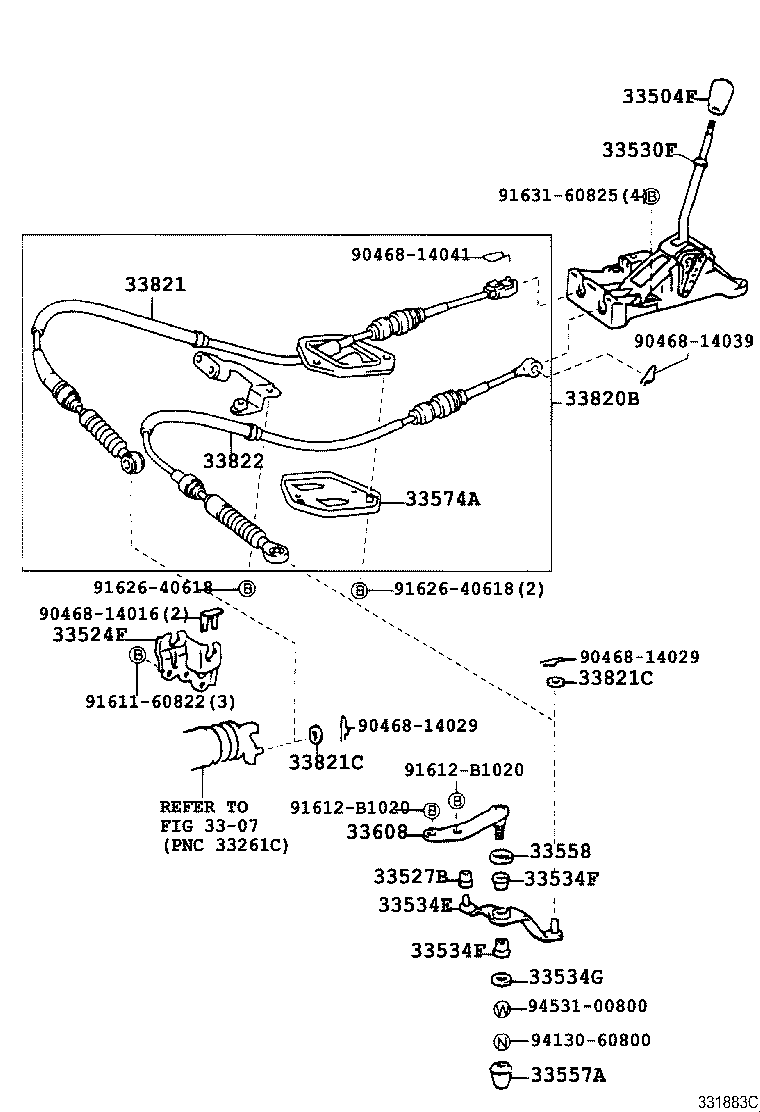

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-14050B8 |
NCP50,51,55,58,59,NLP51..5F DK.GRAY,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-52010 |
NCP50,51,58,NLP51..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-52010 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-52010 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
NCP50,51,55,58,59,NLP51..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
NCP50,51,55,58,59,NLP51..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-52010 |
NCP5#,NLP51 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-52020 |
NCP50,51,55,58,59,NLP51..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52230 |
NCP50,51,58..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-52140 |
NCP50,51,58..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
NCP50,51,55,58,59,NLP51..5F 外径=28 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
NCP50,51,55,58,59,NLP51..5F 外径=28 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-52070 |
NCP50,51,58..5F |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14029 | ||||
| 90468-14039 | ||||
| 90468-14041 | ||||
| 91611-60822 | ||||
| 91612-B1020 | ||||
| 91626-40618 | ||||
| 91631-60825 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 3307 | ||||
