NCP51V-EXMDK (2002)
Toyota Probox/Succeed

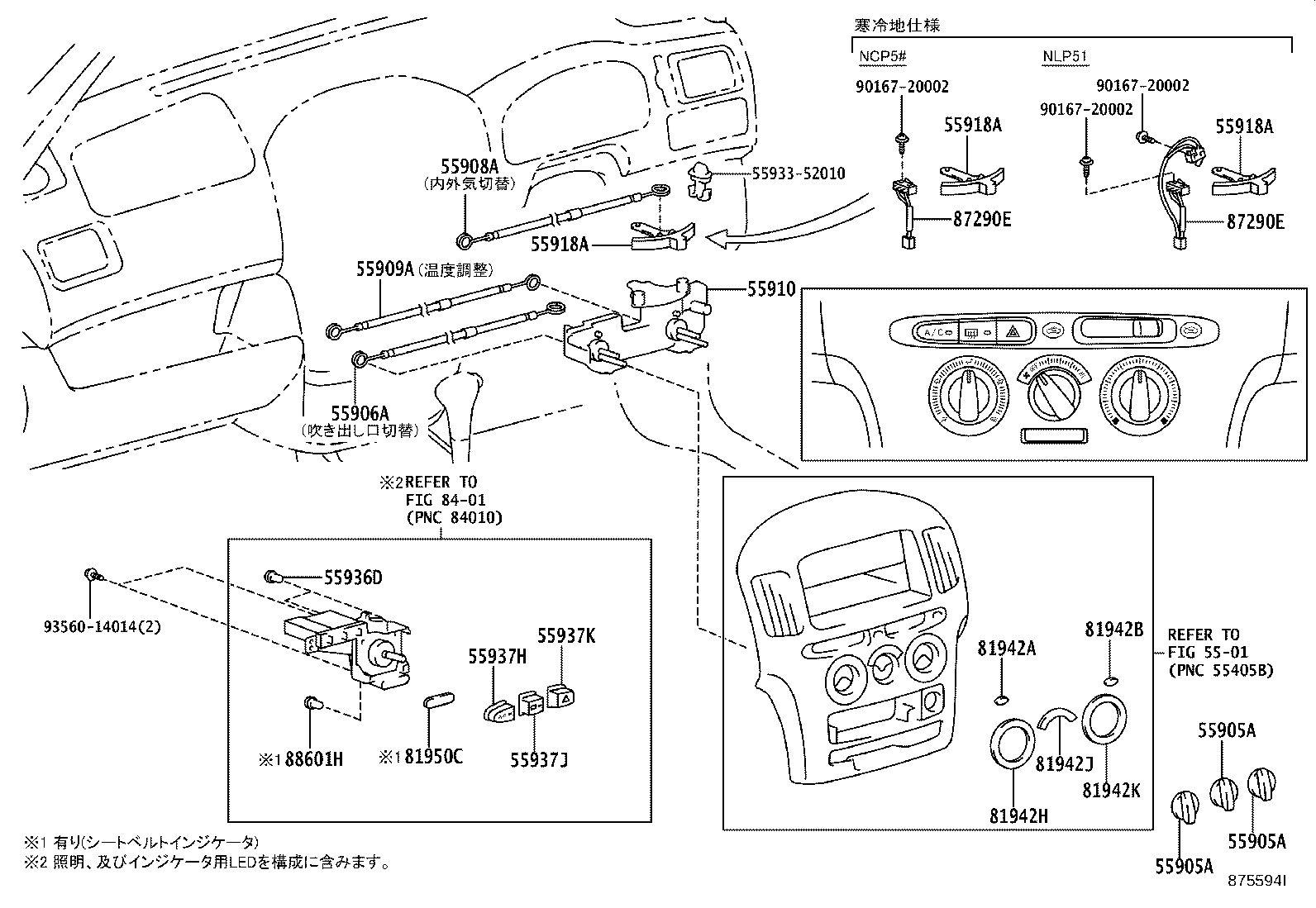

ILLUST NO. 1 OF 3(0206- )
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52050 |
NCP5#,NLP51 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52050 |
NCP5#,NLP51 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52050 |
NCP5#,NLP51 |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52100 |
NCP5#,NLP51 |
1 | ||
| 55906-52010 |
NCP5#,NLP51 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
NCP5#,NLP51 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52020 |
NCP5#,NLP51 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52030 |
NCP5#,NLP51 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52040 |
NCP5#,NLP51 |
1 | ||
| 55918-52050 |
NCP50,51,55,58,59,NLP51 寒冷地仕様 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52040 |
NCP5#,NLP51 |
1 | ||
| 55918-52050 |
NCP50,51,55,58,59,NLP51 寒冷地仕様 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52040 |
NCP5#,NLP51 |
1 | ||
| 55918-52050 |
NCP50,51,55,58,59,NLP51 寒冷地仕様 |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP5#,NLP51 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52190 |
NCP50,51,55,58,59..DX,DXJ,F,TX,U ｴｱｺﾝ−無し |
1 | ||
| 55937-52190 |
NCP51..DX,U;NCP55..4FC..(DX,U) 保冷ﾊﾞﾝ&ｴｱｺﾝ−無し |
1 | ||
| 55937-52160 |
NCP5#,NLP51 |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52170 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 55937-52200 |
NCP51..DX,U;NCP55..4FC..(DX,U) ｸｰﾘﾝｸﾞﾊﾞﾝ&ｴｱｺﾝ−無し,有り(室内ﾕﾆｯﾄ & ｽｲｯﾁのみ) |
1 | ||
| 55937-52200 |
NCP51..DX,U;NCP55..4FC..(DX,U) 保冷ﾊﾞﾝ |
1 | ||
| 55937-52200 |
NCP51..DX,U;NCP55..4FC..(DX,U) 保冷ﾊﾞﾝ&ｴｱｺﾝ−無し |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52180 |
NCP5#,NLP51 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52180B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52190B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52320 |
NCP5#,NLP51 |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52330 |
NCP5#,NLP51 |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52340 |
NCP5#,NLP51 |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52010 |
NCP5#,NLP51 |
1 | ||
| 81950-52230 |
NCP5#..PROB |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP50,51,55,58,59 寒冷地仕様 |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP50,51,55,58,59 寒冷地仕様 |
1 | ||
| 88601H - BULB, INDICATOR LAMP | ||||
| 84999-10490 |
NCP5#,NLP51..DX,F,GL,TX,U,UL 14V 0.84W |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0206- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52070 |
NCP5#,NLP51 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52070 |
NCP5#,NLP51 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-52010 |
NCP50,51,52,58,NLP51 寒冷地仕様 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-52010 |
NCP50,51,52,58,NLP51 寒冷地仕様 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-52010 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90467-05020B1 | ||||
