NCP50V-EXPDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

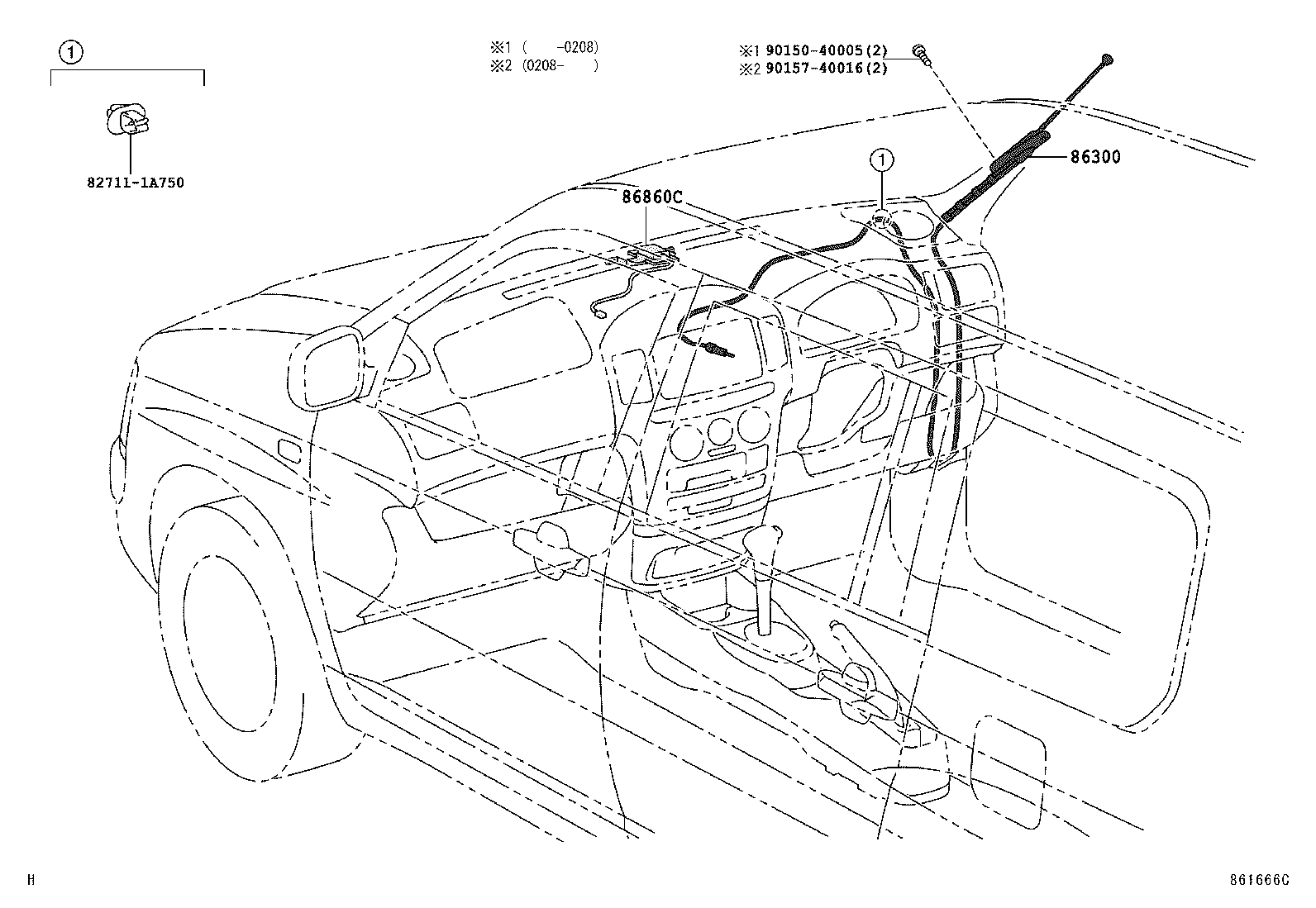

Click highlighted areas on diagram

diagram 827111A750 86300 86860C 9015040005 9015740016
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-52230

NCP5#,NLP51

 1
86300-52040

NCP5#,NLP51

 1
86300-52232

NCP5#

 1
86300-52231

NCP5#,NLP51

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-12050

NCP5#,NLP51

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−05AVNｴﾝﾄﾘｰﾅﾋﾞ

 1
Common parts
82711-1A750
90150-40005
90157-40016
