NCP50V-EXPDK (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Sep 2014
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )PROB

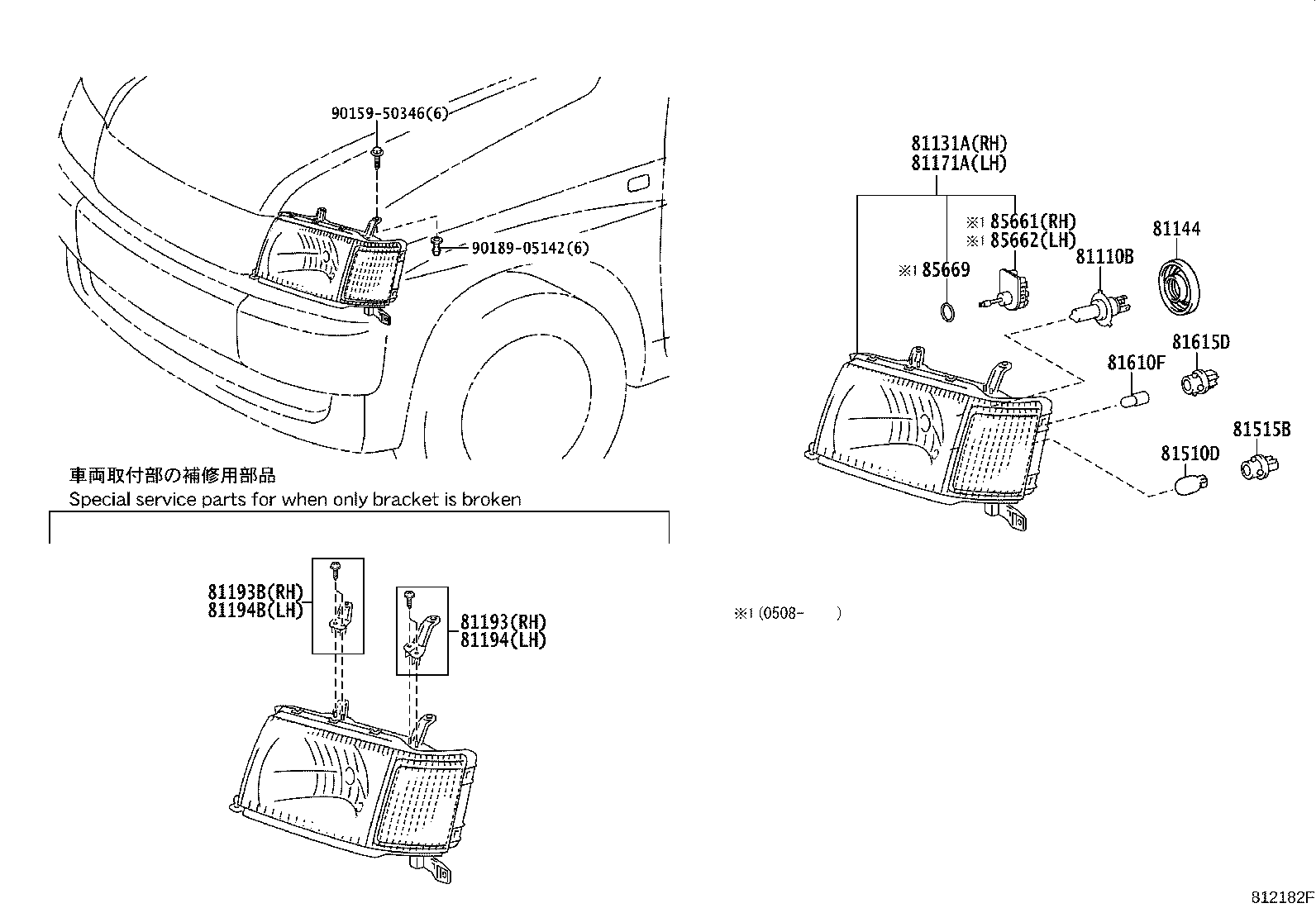

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP5#,NLP51 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-52240 |
NCP5#,NLP51..PROB |
1 | ||
| 81130-52710 |
NCP5#,NLP51..PROB |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
NCP5#,NLP51 |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-52240 |
NCP5#,NLP51..PROB |
1 | ||
| 81170-52700 |
NCP5#,NLP51..PROB |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52040 |
NCP5#,NLP51 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-52050 |
NCP5#,NLP51 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52040 |
NCP5#,NLP51 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-52050 |
NCP5#,NLP51 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
NCP5#,NLP51 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NCP5#,NLP51 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP5#,NLP51 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 90075-60046 |
NCP5#,NLP51..PROB |
2 | ||
| 90075-60077 |
NCP5#,NLP51 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NCP5#,NLP51 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NCP5#,NLP51 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NCP5#,NLP51 |
2 | ||
| Common parts | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
