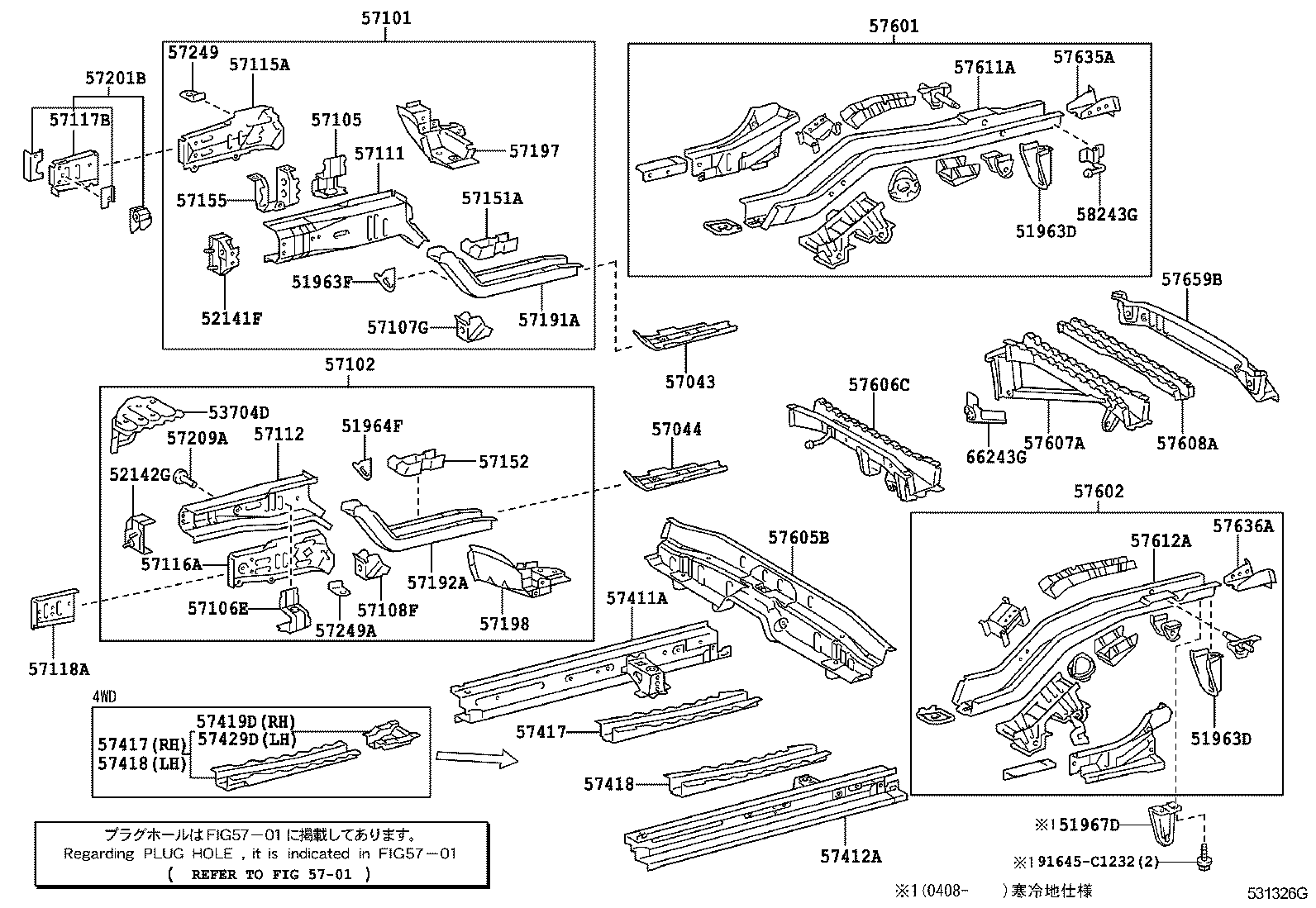

NCP50V-EXMJK (2002)
Toyota Probox/Succeed
(0206- )NCP50,51,55,58,59,NLP51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-52040 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 51968-52040 |
NCP50,51,NLP51..PROB |
2 | ||
| 51968-52040 |
NCP50,51,NLP51..PROB 無し(ABS) |
2 | ||
| 51968-52040 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-52040 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 51968-52040 |
NCP50,51,NLP51..PROB |
2 | ||
| 51968-52040 |
NCP50,51,NLP51..PROB 無し(ABS) |
2 | ||
| 51968-52040 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
2 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-52020 |
NCP5#,NLP51 |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-52020 |
NCP5#,NLP51 |
1 | ||
| 52141F - ARM, FRONT BUMPER, RH | ||||
| 52141-52060 |
NCP5#,NLP51 |
1 | ||
| 52142G - ARM, FRONT BUMPER, LH | ||||
| 52142-52040 |
NCP5#,NLP51 |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-52010 |
NCP5#,NLP51 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52010 |
NCP5#,NLP51 |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52020 |
NCP5#,NLP51 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-52130 |
NCP5#,NLP51 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-52140 |
NCP5#,NLP51 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCP5#,NLP51 |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCP5#,NLP51 |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-52020 |
NCP5#,NLP51 |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-52020 |
NCP5#,NLP51 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-52010 |
NCP5#,NLP51 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-52010 |
NCP5#,NLP51 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-52010 |
NCP5#,NLP51 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-52010 |
NCP5#,NLP51 |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-52020 |
NCP5#,NLP51 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-52010 |
NCP5#,NLP51 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-52010 |
NCP5#,NLP51 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57153-52010 |
NCP5#,NLP51 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-52011 |
NCP5#,NLP51 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-52900 |
NCP5#,NLP51 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-52011 |
NCP5#,NLP51 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57077-52030 |
NCP5#,NLP51 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57078-52030 |
NCP5#,NLP51 |
1 | ||
| 57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57201-52010 |
NCP5#,NLP51 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-16090 |
NCP5#,NLP51 |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-10040 |
NCP5#,NLP51 |
1 | ||
| 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH | ||||
| 57249-10040 |
NCP5#,NLP51 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-52100 |
NCP5#,NLP51 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-52060 |
NCP5#,NLP51 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-52011 |
NCP50,51,52,58,NLP51 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-52011 |
NCP50,51,52,58,NLP51 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52011 |
NCP50,51,52,58,NLP51 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52011 |
NCP50,51,52,58,NLP51 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-52120 |
NCP50,51,NLP51..PROB |
1 | ||
| 57601-52120 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57601-52120 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57601-52120 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-52120 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57602-52120 |
NCP50,51,NLP51..PROB |
1 | ||
| 57602-52120 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57602-52120 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-52050 |
NCP50,51,NLP51..PROB |
1 | ||
| 57605-52050 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57605-52050 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57605-52050 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-52090 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 57606-52100 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57606-52090 |
NCP55..DX,GL;NCP50,51..5F..(DX,GL) 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57606-52100 |
NCP50,51,NLP51..PROB |
1 | ||
| 57606-52090 |
NLP51;NCP55..DXJ;NCP50,51..4FC;NCP50..5F..DXJ 無し(ABS) |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-52040 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57607-52040 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57607-52040 |
NCP50,51,NLP51..PROB |
1 | ||
| 57607-52040 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57655-52020 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57655-52020 |
NCP50,51,NLP51..PROB |
1 | ||
| 57655-52020 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57655-52020 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57611A - MEMBER, REAR FLOOR SIDE, RH | ||||
| 57611-52030 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57611-52030 |
NCP50,51,NLP51..PROB |
1 | ||
| 57611-52030 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57611-52030 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57612A - MEMBER, REAR FLOOR SIDE, LH | ||||
| 57612-52040 |
NCP50,51,NLP51..PROB |
1 | ||
| 57612-52040 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57612-52040 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57612-52040 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57635-52060 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57635-52060 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57635-52060 |
NCP50,51,NLP51..PROB |
1 | ||
| 57635-52060 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57636-52060 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57636-52060 |
NCP50,51,NLP51..PROB |
1 | ||
| 57636-52060 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57636-52060 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57659B - MEMBER, REAR FLOOR CROSS, REAR INNER | ||||
| 57659-52050 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 57659-52050 |
NCP50,51,NLP51..PROB |
1 | ||
| 57659-52050 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 57659-52050 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 58243G - BRACKET, EXHAUST PIPE MOUNTING SIDE, RH | ||||
| 58243-52040 |
NCP50,51,NLP51..PROB |
1 | ||
| 58243-52040 |
NCP50,51,NLP51..DX,GL ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 58243-52040 |
NCP50,51,NLP51..DX,GL 無し(ABS)&ﾌﾛﾝﾄﾛｰﾊﾞｯｸｼｰﾄ有り |
1 | ||
| 58243-52040 |
NCP50,51,NLP51..PROB 無し(ABS) |
1 | ||
| 66243G - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-52020 |
NCP5#,NLP51 ｽﾉｰﾊﾞｰｼﾞｮﾝ(雪国仕様) |
1 | ||
| 66243-52020 |
NCP5#,NLP51 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 91645-C1232 | ||||
| Linked diagrams | ||||
| 5701 | ||||
