NCP50V-EXMGK (2002)
Toyota Probox/Succeed
Production
Jun 2002
-
Sep 2014
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )

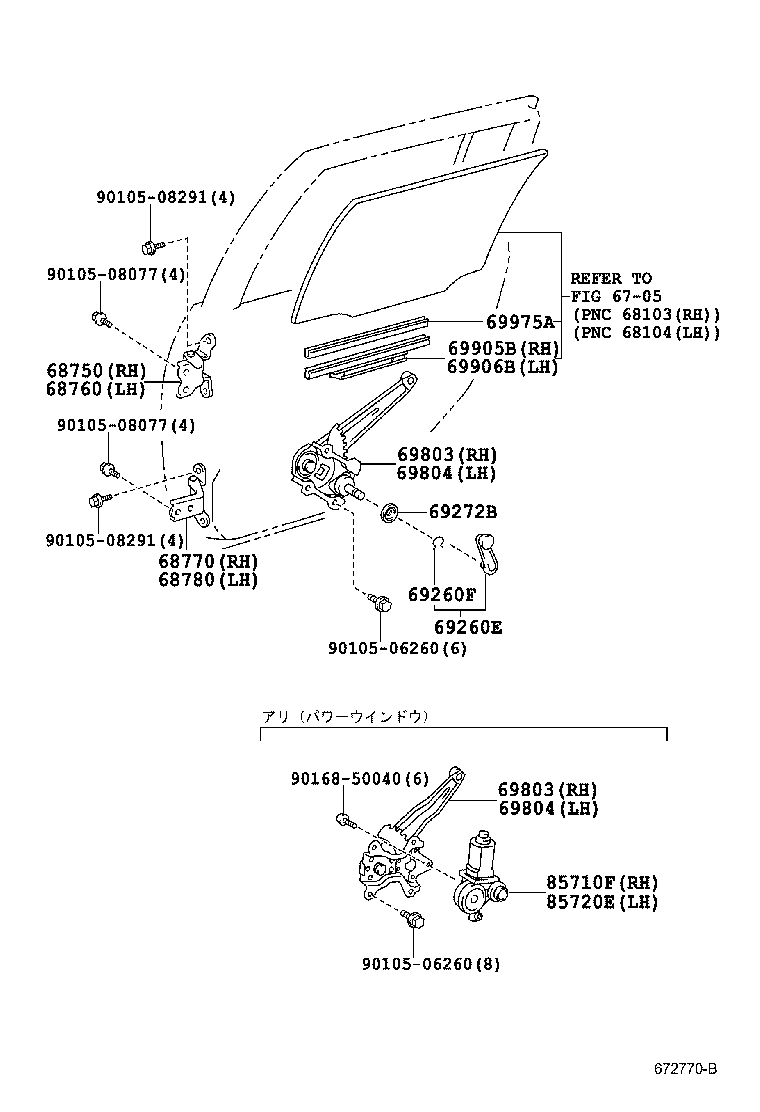

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-20120 |
NCP5#,NLP51 |
1 | ||
| 68750-20121 |
NCP5#,NLP51 |
1 | ||
| 68750-20122 |
NCP5# |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-20120 |
NCP5#,NLP51 |
1 | ||
| 68760-20121 |
NCP5#,NLP51 |
1 | ||
| 68760-20122 |
NCP5# |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52031 |
NCP5#,NLP51 |
1 | ||
| 68770-52030 |
NCP5#,NLP51 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-52030 |
NCP5#,NLP51 |
1 | ||
| 68780-52031 |
NCP5#,NLP51 |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-52070B0 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
2 | ||
| 69260-22030B6 |
NCP5#,NLP51 DK.GRAY,TRIM1# |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01274 |
NCP50,51,55,58,59,NLP51..DX,DXJ,F,U |
1 | ||
| 90520-01274 |
NCP50,51,55,NLP51..DX,GL 運転席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
6 | ||
| 90520-01274 |
NCP50,51,55,58,59,NLP51..DX,F,U 運転席,助手席ﾊﾟﾜｰｳｨﾝﾄﾞｳ有り |
2 | ||
| 90520-01274 |
NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69285-22010 |
NCP5#,NLP51 |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-52130 |
NCP5#,NLP51 |
1 | ||
| 69830-52160 |
NCP5#,NLP51 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-52130 |
NCP5#,NLP51 |
1 | ||
| 69830-52160 |
NCP5#,NLP51 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-52160 |
NCP5#,NLP51 |
1 | ||
| 69840-52130 |
NCP5#,NLP51 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-52160 |
NCP5#,NLP51 |
1 | ||
| 69840-52130 |
NCP5#,NLP51 |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-52020 |
NCP5#,NLP51 |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-52010 |
NCP5#,NLP51 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NCP5#,NLP51 |
2 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08077 | ||||
| 90105-08291 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6705 | ||||
