NCP50V-EXMGK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

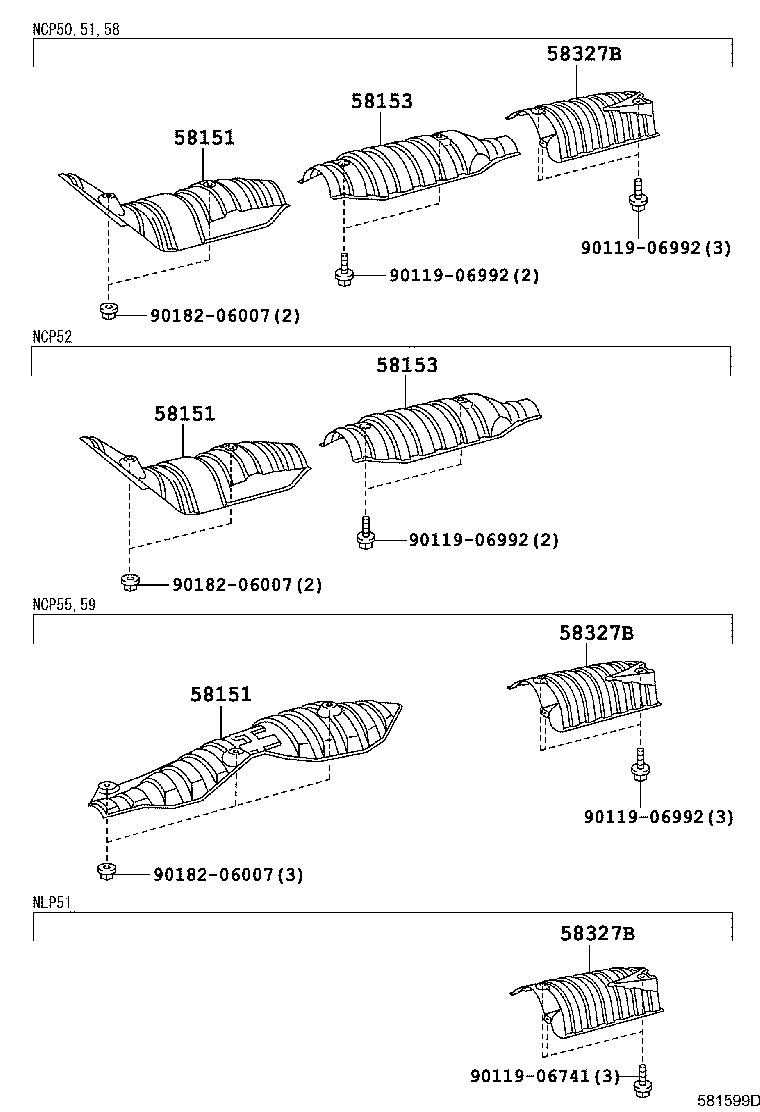

Click highlighted areas on diagram

diagram 58151 58151 58151 58153 58153 58327B 58327B 58327B 9011906741 9011906992 9011906992 9011906992 9011906992 9018206007 9018206007 9018206007
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52030

NCP50,51,52,58

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52030

NCP50,51,52,58

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52030

NCP50,51,52,58

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52011

NCP50,51,52,58

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52011

NCP50,51,52,58

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52080

NCP50,51,55,58,59,NLP51

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52080

NCP50,51,55,58,59,NLP51

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52080

NCP50,51,55,58,59,NLP51

 1
Common parts
90119-06741
90119-06992
90182-06007
