NCP50V-EXMDK (2002)
Toyota Probox/Succeed

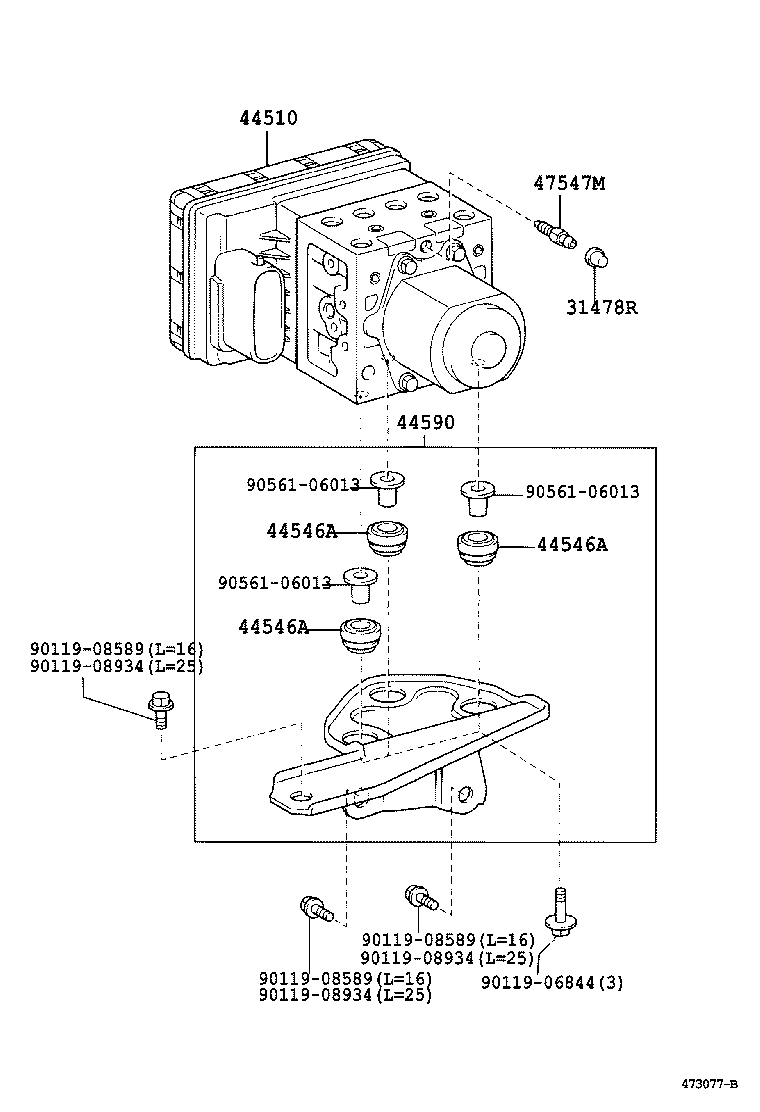

ILLUST NO. 2 OF 2(0206-0808)
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| 31478-30010 |
NCP5#..DX,F,GL,TX,U,UL |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52B10 |
NCP50,51 無し(ABS) |
1 | ||
| 44050-52230 |
NCP50,51,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| 44050-52230 |
NCP50,51,52,58..DX,F,GL,TX,U,UL |
1 | ||
| 44050-52B10 |
NCP50,51,52,58 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
3 | ||
| 44546-12100 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
3 | ||
| 44546-63010 |
NCP5# |
3 | ||
| 44546-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
3 | ||
| 44546-12100 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
3 | ||
| 44546-63010 |
NCP5# |
3 | ||
| 44546-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
3 | ||
| 44546-12100 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
3 | ||
| 44546-63010 |
NCP5# |
3 | ||
| 44546-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52030 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| 44590-52030 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 44590-52110 |
NCP55;NCP50,51..5F 無し(ABS) |
1 | ||
| 44590-52110 |
NCP5# |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
NCP5#..DX,F,GL,TX,U,UL |
1 | ||
| 47547-22020 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08589 | ||||
| 90119-08934 | ||||
| 90561-06013 | ||||

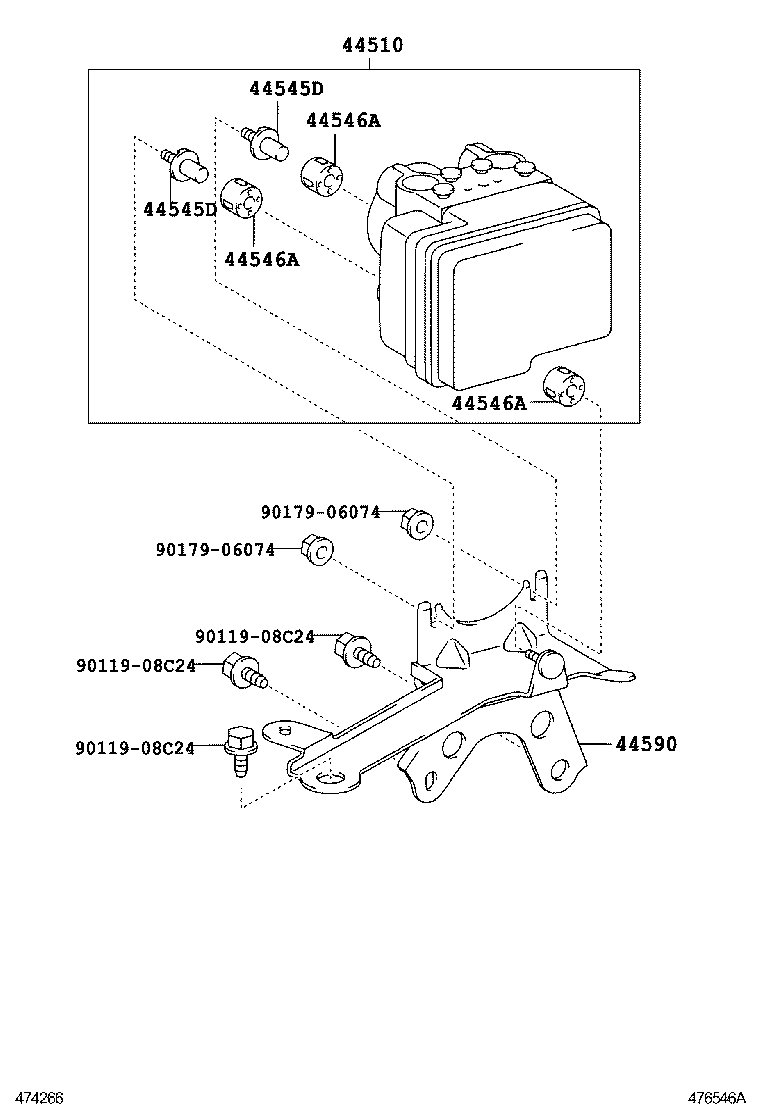

ILLUST NO. 2 OF 2(0808- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52B10 |
NCP50,51 無し(ABS) |
1 | ||
| 44050-52230 |
NCP50,51,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| 44050-52230 |
NCP50,51,52,58..DX,F,GL,TX,U,UL |
1 | ||
| 44050-52B10 |
NCP50,51,52,58 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
2 | ||
| 44545-63010 |
NCP5# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
2 | ||
| 44545-63010 |
NCP5# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
3 | ||
| 44546-12100 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
3 | ||
| 44546-63010 |
NCP5# |
3 | ||
| 44546-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
3 | ||
| 44546-12100 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
3 | ||
| 44546-63010 |
NCP5# |
3 | ||
| 44546-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
3 | ||
| 44546-12100 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
3 | ||
| 44546-63010 |
NCP5# |
3 | ||
| 44546-63010 |
NCP55;NCP50,51..5F 無し(ABS) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52030 |
NCP50,51,55,NLP51..DX,GL,U,UL 無し(ABS) |
1 | ||
| 44590-52030 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 44590-52110 |
NCP55;NCP50,51..5F 無し(ABS) |
1 | ||
| 44590-52110 |
NCP5# |
1 | ||
| Common parts | ||||
| 90119-08C24 | ||||
| 90179-06074 | ||||

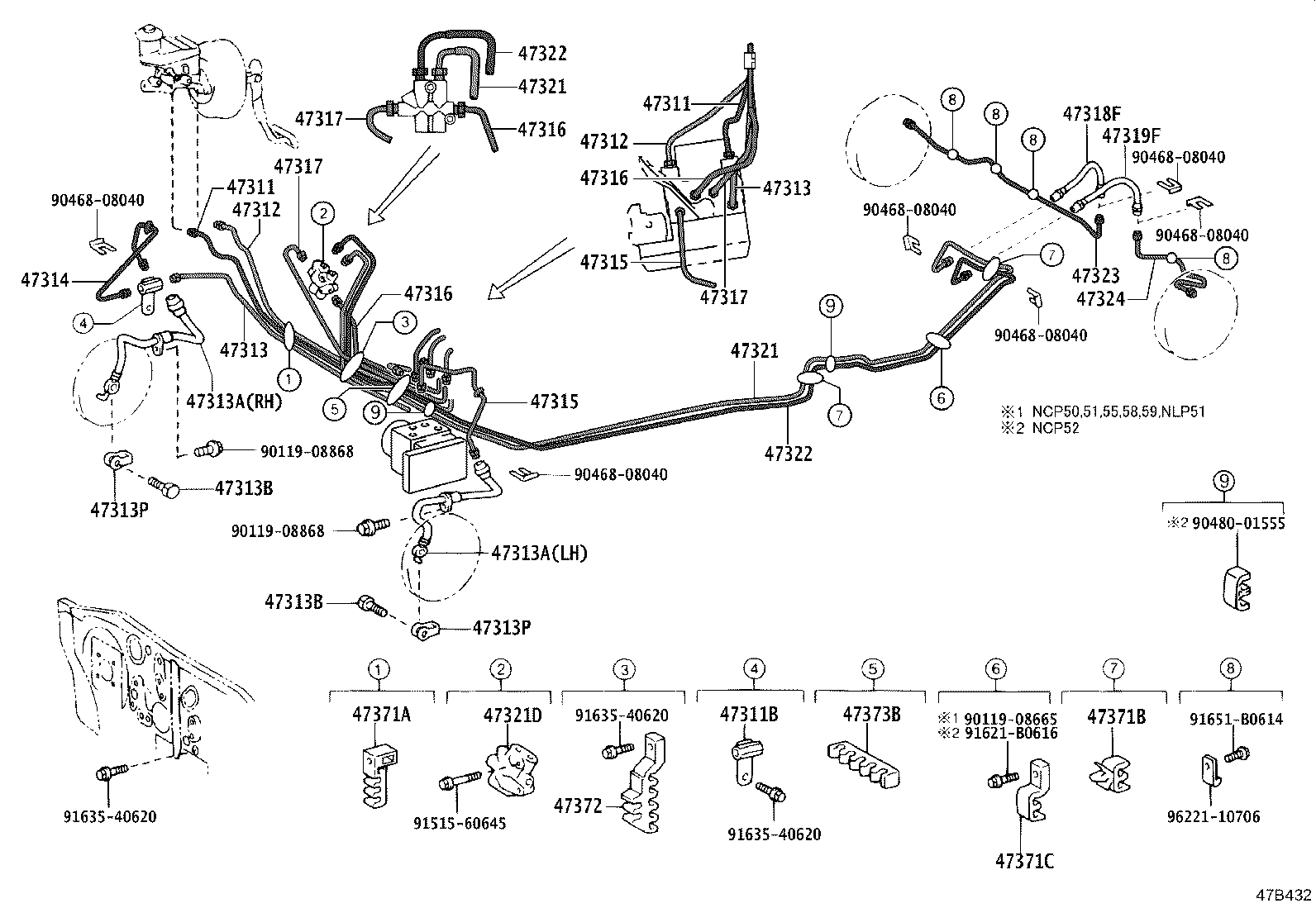

ILLUST NO. 1 OF 2(0206-0808)
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP5# |
1 | ||
| 47311-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311-46040 |
NCP5# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP5# |
1 | ||
| 47311-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311-46040 |
NCP5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10286 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 90412-10235 |
NCP5#,NLP51 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP5#,NLP51 |
1 | ||
| 47312-46040 |
NCP5# |
1 | ||
| 47312-52041 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP5#,NLP51 |
1 | ||
| 47312-46040 |
NCP5# |
1 | ||
| 47312-52041 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D77 |
NCP50,51,52,58,NLP51 左側 |
1 | ||
| 90947-02D76 |
NCP50,51,52,58,NLP51 右側 |
1 | ||
| 90947-02C31 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 右側 |
1 | ||
| 90947-02C32 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D77 |
NCP50,51,52,58,NLP51 左側 |
1 | ||
| 90947-02D76 |
NCP50,51,52,58,NLP51 右側 |
1 | ||
| 90947-02C31 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 右側 |
1 | ||
| 90947-02C32 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52100 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47314-52011 |
NCP5#,NLP51 |
1 | ||
| 47314-52011 |
NCP5# |
1 | ||
| 47314-52110 |
NCP5#,NLP51 |
1 | ||
| 47314-52070 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47315-52110 |
NCP5# |
1 | ||
| 47315-52061 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315-52051 |
NCP5#,NLP51 |
1 | ||
| 47315-52130 |
NCP5#,NLP51 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47315-52110 |
NCP5# |
1 | ||
| 47315-52061 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315-52051 |
NCP5#,NLP51 |
1 | ||
| 47315-52130 |
NCP5#,NLP51 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52031 |
NCP5#,NLP51 |
1 | ||
| 47316-52090 |
NCP5# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52031 |
NCP5#,NLP51 |
1 | ||
| 47316-52090 |
NCP5# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52031 |
NCP5#,NLP51 |
1 | ||
| 47316-52090 |
NCP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP5#,NLP51 |
1 | ||
| 47317-52090 |
NCP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP5#,NLP51 |
1 | ||
| 47317-52090 |
NCP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP5#,NLP51 |
1 | ||
| 47317-52090 |
NCP5# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D18 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D18 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47321-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47321-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 90413-10293 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47322-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47322-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52060 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52060 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP5#,NLP51 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07012 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
3 | ||
| 90469-07012 |
NCP50,51,55,58,59,NLP51 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-52020 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP5#,NLP51 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01B45 |
NCP55;NCP50,51..5F 無し(ABS) |
1 | ||
| 90949-01A18 |
NCP5#,NLP51 |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01555 | ||||
| 91515-60645 | ||||
| 91621-B0616 | ||||
| 91635-40620 | ||||
| 91651-B0614 | ||||
| 96221-10706 | ||||

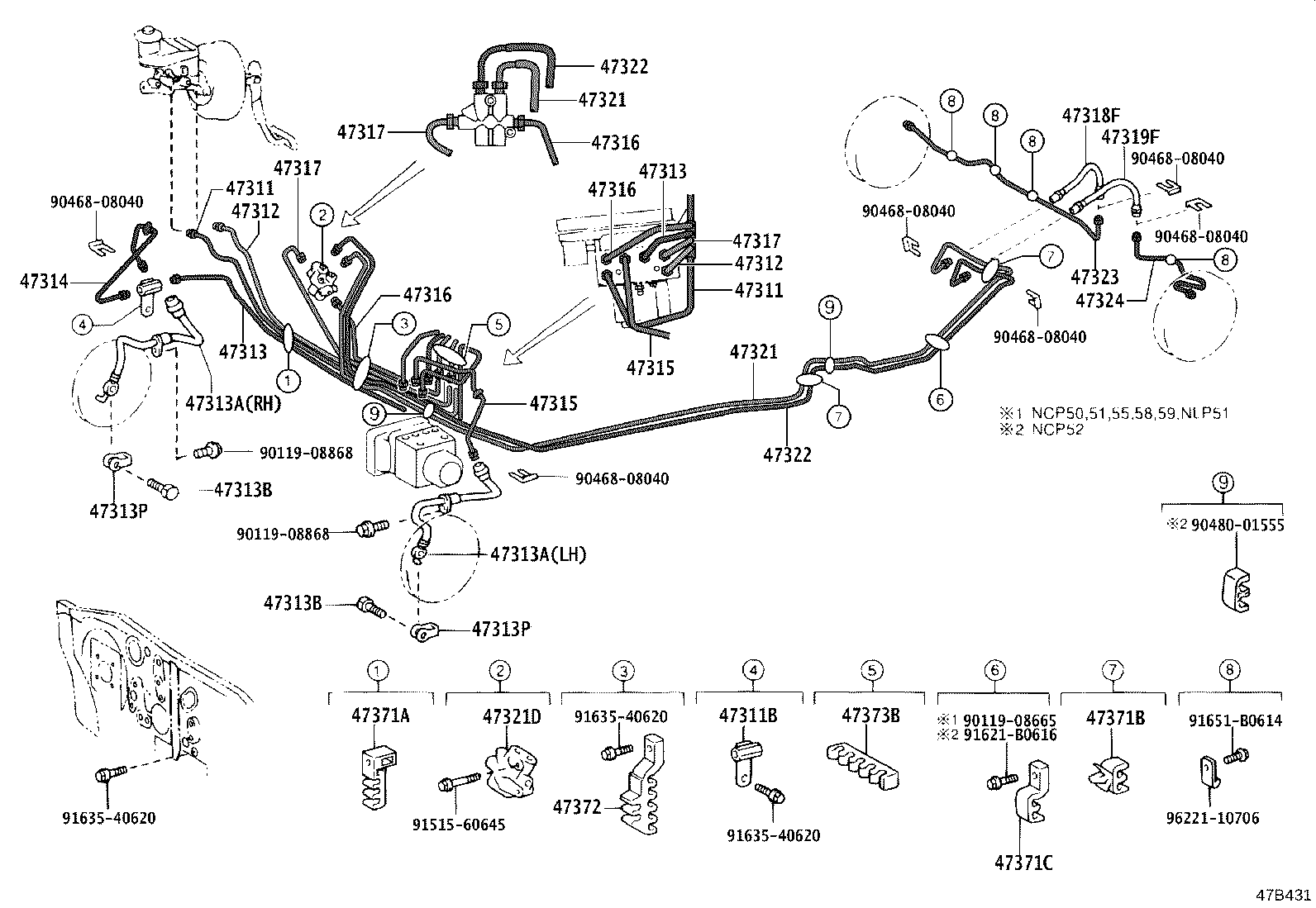

ILLUST NO. 1 OF 2(0808- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP5# |
1 | ||
| 47311-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311-46040 |
NCP5# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP5# |
1 | ||
| 47311-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311-46040 |
NCP5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10286 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 90412-10235 |
NCP5#,NLP51 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP5#,NLP51 |
1 | ||
| 47312-46040 |
NCP5# |
1 | ||
| 47312-52041 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP5#,NLP51 |
1 | ||
| 47312-46040 |
NCP5# |
1 | ||
| 47312-52041 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D77 |
NCP50,51,52,58,NLP51 左側 |
1 | ||
| 90947-02D76 |
NCP50,51,52,58,NLP51 右側 |
1 | ||
| 90947-02C31 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 右側 |
1 | ||
| 90947-02C32 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D77 |
NCP50,51,52,58,NLP51 左側 |
1 | ||
| 90947-02D76 |
NCP50,51,52,58,NLP51 右側 |
1 | ||
| 90947-02C31 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 右側 |
1 | ||
| 90947-02C32 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52100 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47314-52011 |
NCP5#,NLP51 |
1 | ||
| 47314-52011 |
NCP5# |
1 | ||
| 47314-52110 |
NCP5#,NLP51 |
1 | ||
| 47314-52070 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47315-52110 |
NCP5# |
1 | ||
| 47315-52061 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315-52051 |
NCP5#,NLP51 |
1 | ||
| 47315-52130 |
NCP5#,NLP51 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47315-52110 |
NCP5# |
1 | ||
| 47315-52061 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315-52051 |
NCP5#,NLP51 |
1 | ||
| 47315-52130 |
NCP5#,NLP51 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52031 |
NCP5#,NLP51 |
1 | ||
| 47316-52090 |
NCP5# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52031 |
NCP5#,NLP51 |
1 | ||
| 47316-52090 |
NCP5# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52031 |
NCP5#,NLP51 |
1 | ||
| 47316-52090 |
NCP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP5#,NLP51 |
1 | ||
| 47317-52090 |
NCP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP5#,NLP51 |
1 | ||
| 47317-52090 |
NCP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52031 |
NCP5#,NLP51 |
1 | ||
| 47317-52090 |
NCP5# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D18 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D18 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47321-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47321-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 90413-10293 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47322-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47322-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52060 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52060 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP5#,NLP51 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07012 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
3 | ||
| 90469-07012 |
NCP50,51,55,58,59,NLP51 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-52020 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP5#,NLP51 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01B45 |
NCP55;NCP50,51..5F 無し(ABS) |
1 | ||
| 90949-01A18 |
NCP5#,NLP51 |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01555 | ||||
| 91515-60645 | ||||
| 91621-B0616 | ||||
| 91635-40620 | ||||
| 91651-B0614 | ||||
| 96221-10706 | ||||

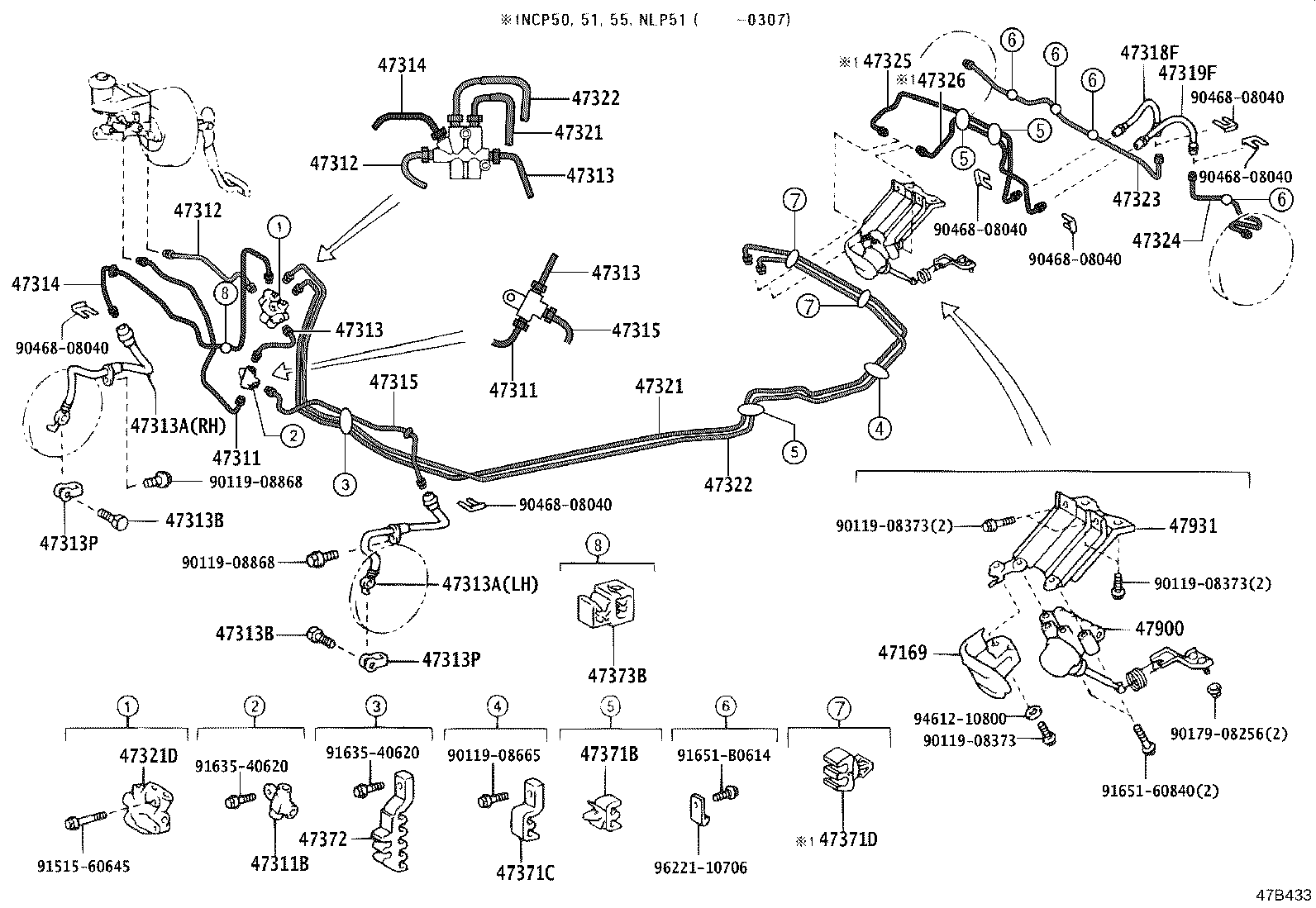

ILLUST NO. 1 OF 2(0206- )NCP50,51,55,58,59,NLP51
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47169 - PROTECTOR, PROPORTIONING VALVE | ||||
| 47169-52010 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP5# |
1 | ||
| 47311-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311-46040 |
NCP5# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52091 |
NCP5# |
1 | ||
| 47311-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47311-46040 |
NCP5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10286 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 90412-10235 |
NCP5#,NLP51 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP5#,NLP51 |
1 | ||
| 47312-46040 |
NCP5# |
1 | ||
| 47312-52041 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52091 |
NCP5#,NLP51 |
1 | ||
| 47312-46040 |
NCP5# |
1 | ||
| 47312-52041 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52021 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47313-52041 |
NCP5# |
1 | ||
| 47313-52100 |
NCP5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D77 |
NCP50,51,52,58,NLP51 左側 |
1 | ||
| 90947-02D76 |
NCP50,51,52,58,NLP51 右側 |
1 | ||
| 90947-02C31 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 右側 |
1 | ||
| 90947-02C32 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D77 |
NCP50,51,52,58,NLP51 左側 |
1 | ||
| 90947-02D76 |
NCP50,51,52,58,NLP51 右側 |
1 | ||
| 90947-02C31 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 右側 |
1 | ||
| 90947-02C32 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52100 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47314-52011 |
NCP5#,NLP51 |
1 | ||
| 47314-52011 |
NCP5# |
1 | ||
| 47314-52110 |
NCP5#,NLP51 |
1 | ||
| 47314-52070 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52100 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47314-52011 |
NCP5#,NLP51 |
1 | ||
| 47314-52011 |
NCP5# |
1 | ||
| 47314-52110 |
NCP5#,NLP51 |
1 | ||
| 47314-52070 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47315-52110 |
NCP5# |
1 | ||
| 47315-52061 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315-52051 |
NCP5#,NLP51 |
1 | ||
| 47315-52130 |
NCP5#,NLP51 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52120 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47315-52110 |
NCP5# |
1 | ||
| 47315-52061 |
NCP50,51,55,NLP51 無し(ABS) |
1 | ||
| 47315-52051 |
NCP5#,NLP51 |
1 | ||
| 47315-52130 |
NCP5#,NLP51 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02D18 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D18 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47321-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47321-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 90413-10293 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47322-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52160 |
NCP50,51,55,58,59 |
1 | ||
| 47322-52150 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52060 |
NCP50,51,52,58,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52060 |
NCP5#,NLP51..DX,F,GL,TX,U,UL |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-52020 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-52020 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07012 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
3 | ||
| 90469-07012 |
NCP50,51,55,58,59,NLP51 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-52020 |
NCP50,51,55,58,59,NLP51 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-52030 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP5#,NLP51 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01B45 |
NCP55;NCP50,51..5F 無し(ABS) |
1 | ||
| 90949-01A18 |
NCP5#,NLP51 |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-52070 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-52030 |
NCP55..DX,GL,U,UL;NCP50,51..5F..(DX,GL,U,UL) 無し(ABS) |
1 | ||
| Common parts | ||||
| 90119-08373 | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90179-08256 | ||||
| 90468-08040 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
| 91651-60840 | ||||
| 91651-B0614 | ||||
| 94612-10800 | ||||
| 96221-10706 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
