NCP50V-EXMDK (2002)

Toyota Probox/Succeed

Production Jun 2002 - Sep 2014
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )1NZFE,2NZFE

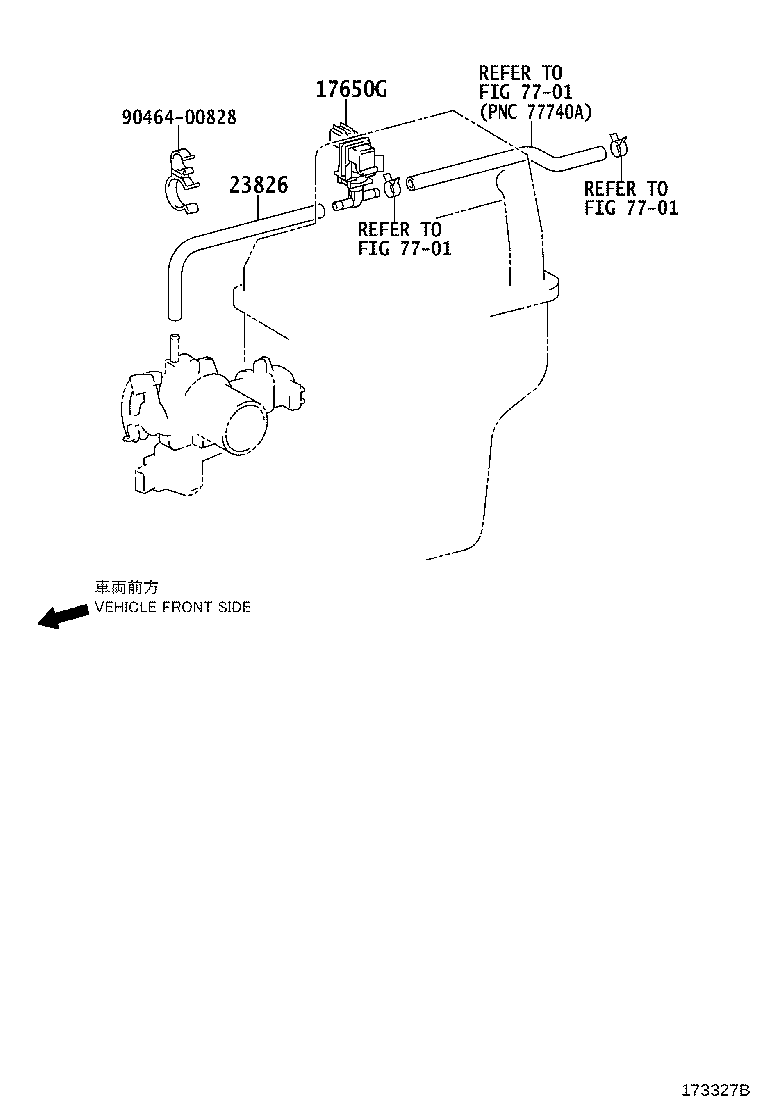

Click highlighted areas on diagram

diagram 17650G 23826 7701 7701 7701 9046400828
Part # Description Qty Price
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12202

1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
95328-07036

1NZFE,2NZFE..NCP50,51,55,58,59..DX,F,GL,TX,U,UL

 1
Common parts
90464-00828
Linked diagrams
7701
