NCP165V-FXXRK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Jul 2020
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

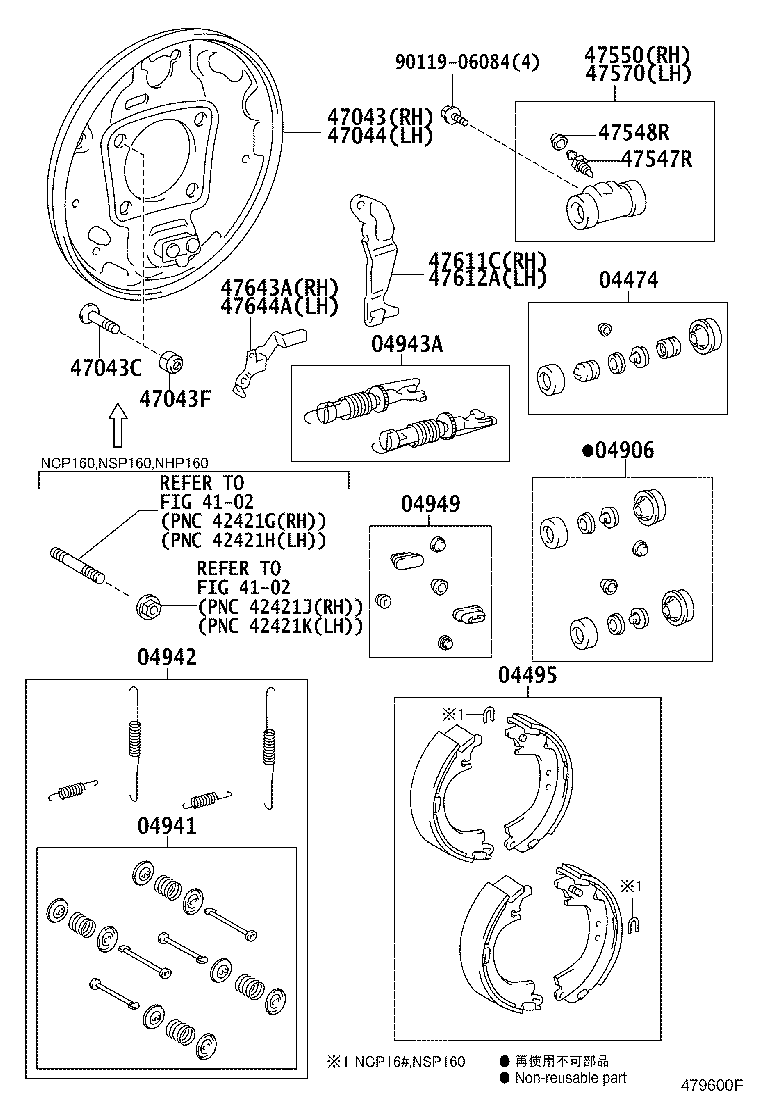

Click highlighted areas on diagram

diagram 04474 04495 04906 04941 04942 04943A 04949 4102 4102 47043 47043C 47043F 47044 47547R 47548R 47550 47570 47611C 47612A 47643A 47644A 9011906084
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-52140

NCP16#,NHP160..SUCD

 2
04495 - SHOE KIT, REAR BRAKE
04495-52030

NCP16#..SUCD

ﾏｰｸ NBK LN521

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-28040

NCP16#,NHP160..SUCD

 1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-28010

NCP16#,NHP160..SUCD

 1
04942 - SPRING KIT, REAR BRAKE
04942-13030

NCP16#,NHP160..SUCD

 1
04943A - STRUT KIT, REAR BRAKE
04943-13010

NCP16#..SUCD

 1
04949 - PLUG KIT, REAR BRAKE
04949-13010

NCP16#,NHP160..SUCD

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-52040

NCP16#..SUCD

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-12020

NCP165..SUCD

*10−1.25PX37−15

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94184-01001

NCP165..SUCD

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-52040

NCP16#..SUCD

 1
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-27030

NCP16#,NHP160..SUCD

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

NCP16#,NHP160..SUCD

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-28060

NCP16#,NHP160..SUCD

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-28060

NCP16#,NHP160..SUCD

 1
47611C - LEVER, PARKING BRAKE SHOE, RH
47611-68030

NCP16#..SUCD

 1
47612A - LEVER, PARKING BRAKE SHOE, LH
47612-68030

NCP16#..SUCD

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-42010

NCP16#..SUCD

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-42010

NCP16#..SUCD

 1
Common parts
90119-06084
Linked diagrams
4102
