NCP165V-FXXGK (2014)
Toyota Probox/Succeed

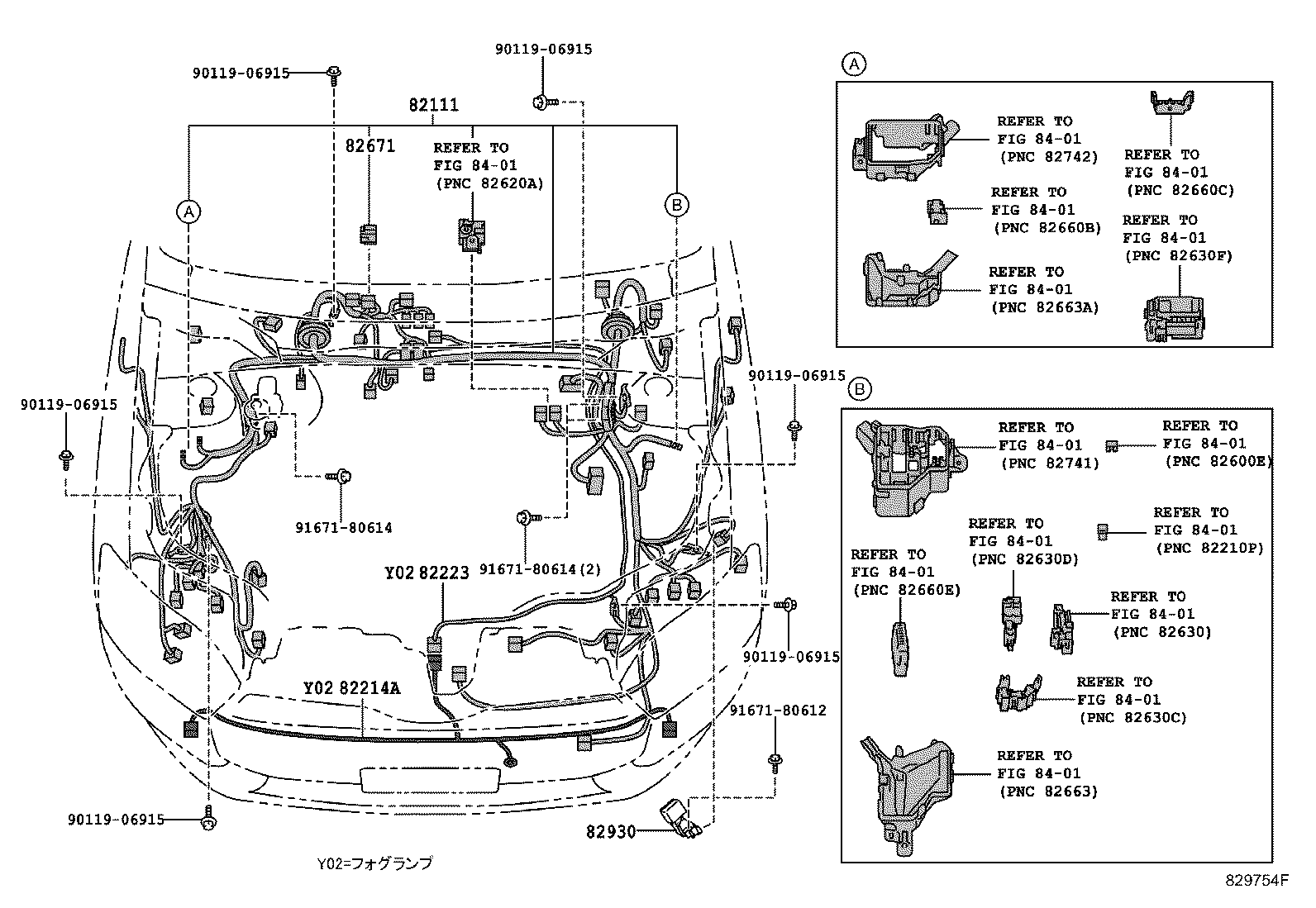

ILLUST NO. 1 OF10(1409- )NCP16#,NSP160
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-5DE40 |
NCP165 寒冷地仕様 |
1 | ||
| 82111-5DP90 |
NCP165,NSP160 寒冷地仕様 |
1 | ||
| 82111-5DP80 |
NCP165,NSP160 |
1 | ||
| 82111-5DE20 |
NCP165 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-52100 |
NCP16#,NHP160..SUCD ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-52070 |
NCP16#,NSP160 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
NCP16#,NSP160 |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-30060 |
NCP165..SUCD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

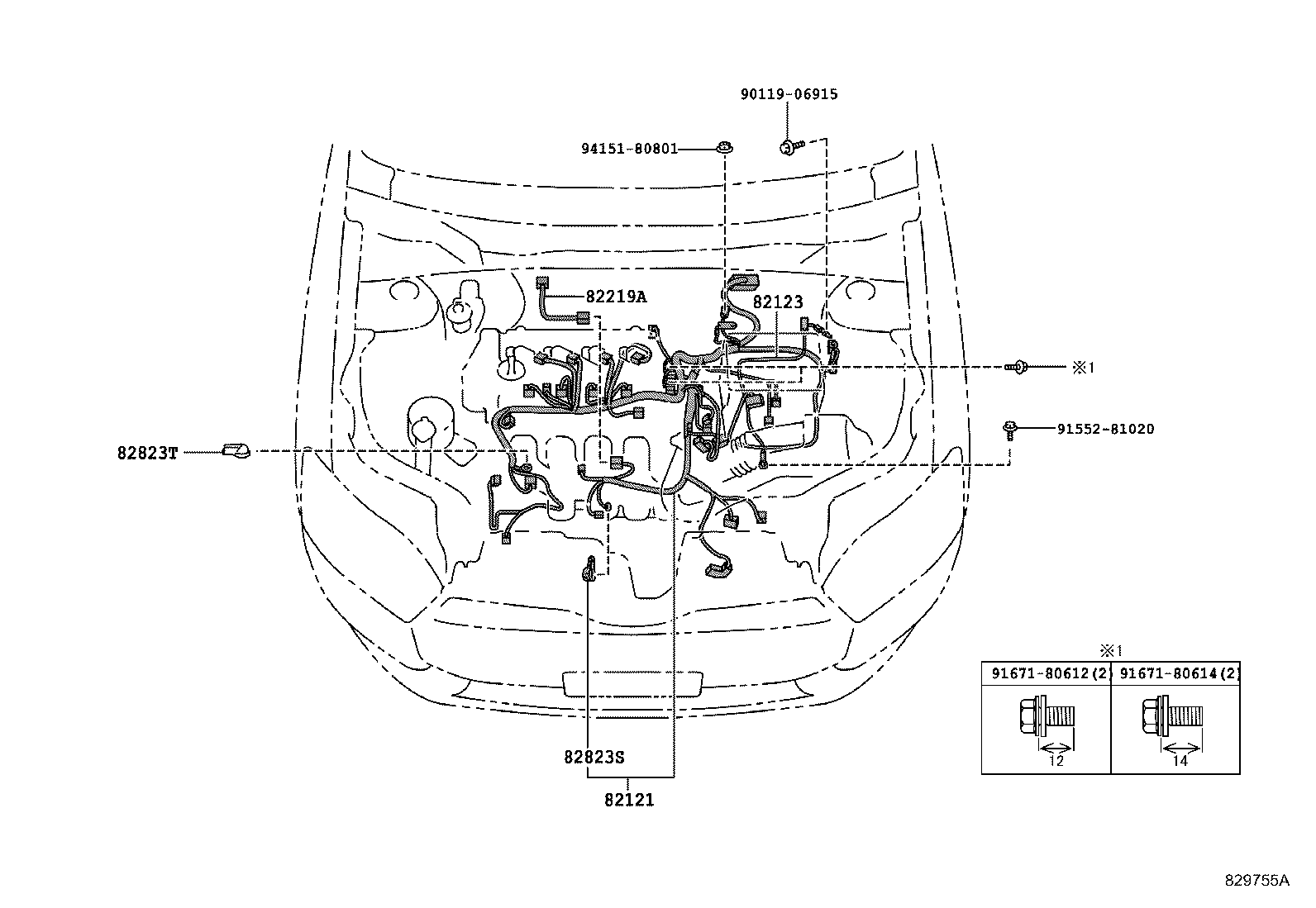

ILLUST NO. 2 OF10(1409- )NCP16#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52P40 |
NCP165..SUCD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52350 |
NCP16#..SUCD |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP16#..SUCD |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP16#..SUCD |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP16#..SUCD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||

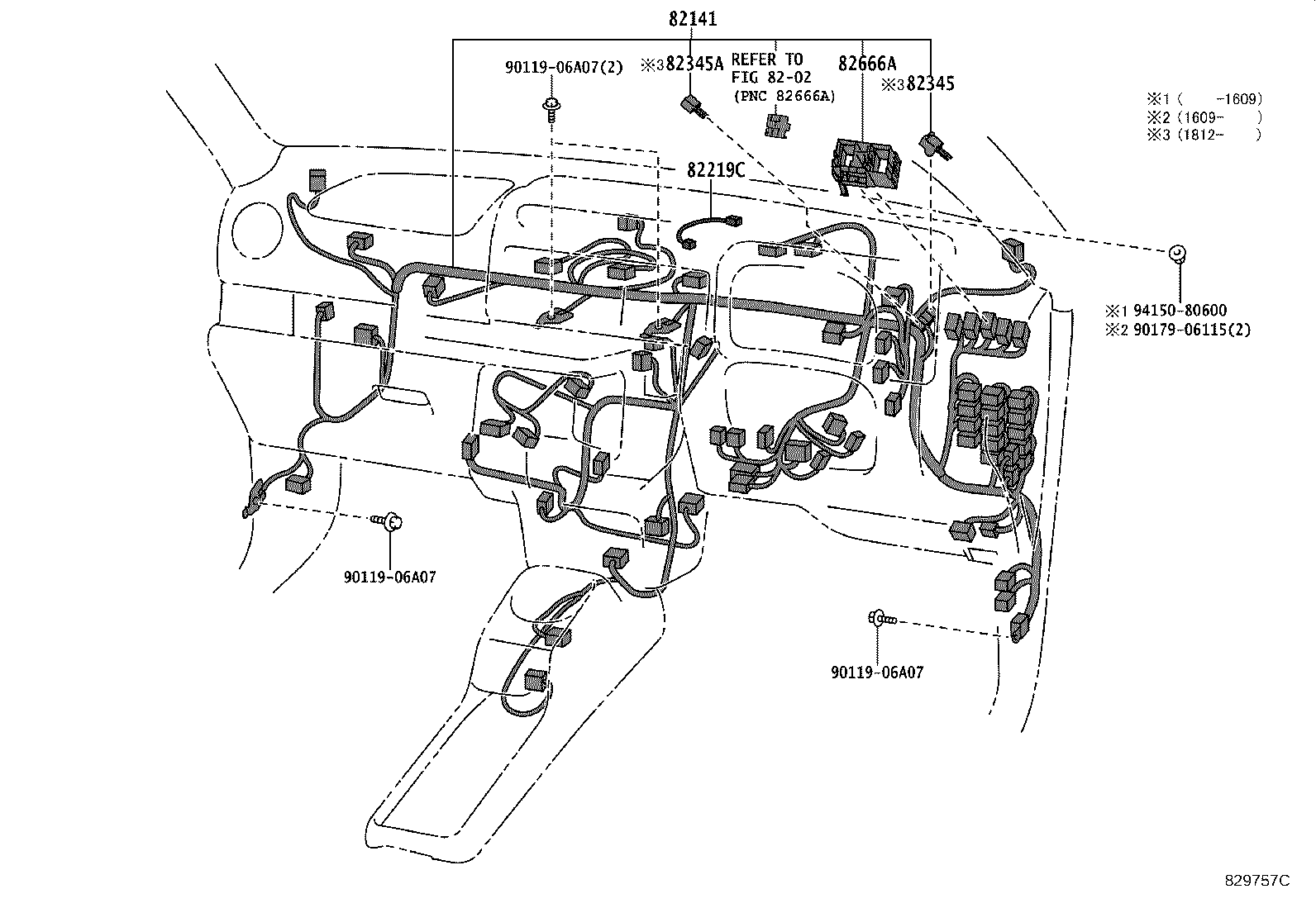

ILLUST NO. 3 OF10(1409- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-52R60 |
NCP16#,NSP160..DX,U |
1 | ||
| 82145-52R70 |
NCP16#,NSP160..DX,U ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R70 |
NCP16#,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 82145-52R70 |
NCP16#,NSP160..DX,U 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様 |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R71 |
NCP16#,NSP160..DX,U 寒冷地仕様 |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R80 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ)&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R61 |
NCP16#,NSP160..DX,U |
1 | ||
| 82145-52R71 |
NCP16#,NSP160..DX,U 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ)&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ)&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 82145-52R71 |
NCP16#,NSP160..DX,U ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様 |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ)&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様&ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V) |
1 | ||
| 82145-52R90 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..DXCOM,UL 寒冷地仕様&ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 82145-5CQ10 |
NCP165,NSP160..DXCOM,F,GL,TX,UL,ULX ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82145-52R91 |
NCP16#,NSP160..F,GL,TX,ULX 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82145-5CQ20 |
NCP165,NSP160..DXCOM,F,GL,TX,UL,ULX |
1 | ||
| 82145-5CP80 |
NCP165,NSP160..DX,U |
1 | ||
| 82145-5CP70 |
NCP165,NSP160..DX,U ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82145-52R81 |
NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-52080 |
NCP16#,NSP160 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
NCP16#,NHP160,NSP160 |
1 | ||
| 82345-12030 |
NCP16#,NHP160..SUCD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
NCP16#,NHP160..SUCD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82345-12050 |
NCP16#,NHP160,NSP160 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52050 |
NCP16#,NSP160 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90179-06115 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

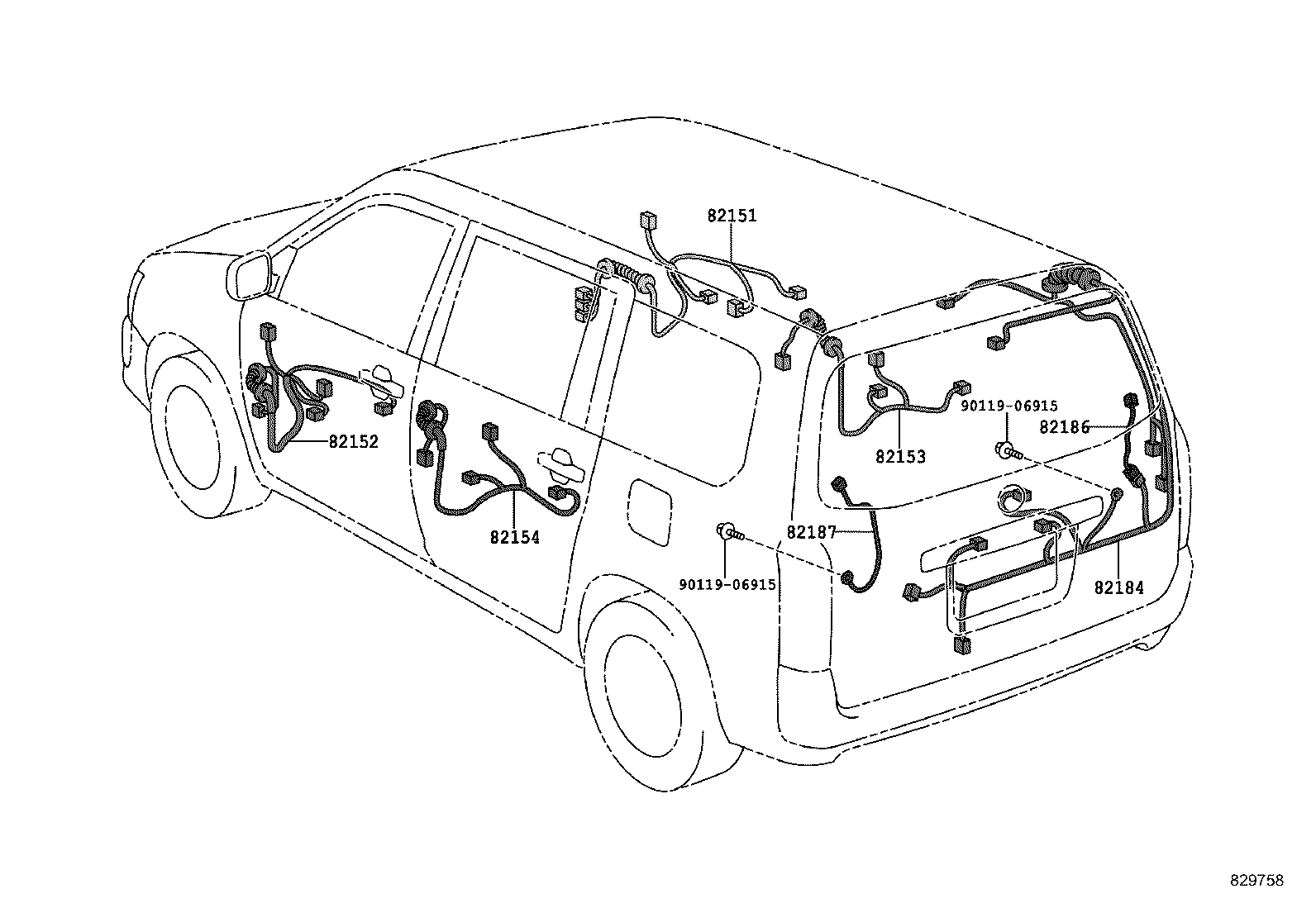

ILLUST NO. 4 OF10(1409- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52W10 |
NCP16#,NSP160..GL,ULX 寒冷地仕様 |
1 | ||
| 82151-52W10 |
NCP16#,NSP160..DXCOM,UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 82151-52W11 |
NCP16#,NHP160..ULX 寒冷地仕様 |
1 | ||
| 82151-52X00 |
NCP16#,NSP160..DXCOM,UL |
1 | ||
| 82151-52X10 |
NCP16#,NSP160..GL,ULX |
1 | ||
| 82151-52X01 |
NCP16#,NHP160..UL |
1 | ||
| 82151-52W90 |
NCP16#,NHP160..U |
1 | ||
| 82151-52W80 |
NCP16#..F,TX 寒冷地仕様 |
1 | ||
| 82151-52X30 |
NCP16#..F,TX |
1 | ||
| 82151-52W11 |
NCP16#,NHP160..UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 82151-52X31 |
NCP16#,NHP160..F |
1 | ||
| 82151-52W81 |
NCP16#,NHP160..F 寒冷地仕様 |
1 | ||
| 82151-52X11 |
NCP16#,NHP160..ULX |
1 | ||
| 82151-52W30 |
NCP16#,NHP160..U 寒冷地仕様 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52T70 |
NCP16#,NHP160..U 寒冷地仕様 |
1 | ||
| 82152-52T60 |
NCP16#,NHP160..TX,ULX 寒冷地仕様 |
1 | ||
| 82152-52T50 |
NCP16#,NHP160..TX,ULX |
1 | ||
| 82152-52U30 |
NCP16#,NHP160..UL |
1 | ||
| 82152-52U20 |
NCP16#,NHP160..UL ｱｳﾀﾐﾗｰ−*57(材料着色) & 有り(ﾋｰﾀﾐﾗｰ) |
1 | ||
| 82152-52U40 |
NCP16#,NHP160..U |
1 | ||
| 82152-52T60 |
NCP16#,NHP160,NSP160..F,GL 寒冷地仕様 |
1 | ||
| 82152-52T50 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52081 |
NCP16#,NHP160..F |
1 | ||
| 82153-52070 |
NCP16#,NHP160..UL,ULX |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-52081 |
NCP16#,NHP160..F |
1 | ||
| 82153-52070 |
NCP16#,NHP160..UL,ULX |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52780 |
NCP16#,NHP160..U,UL |
1 | ||
| 82184-52820 |
NCP16#,NHP160..TX,ULX |
1 | ||
| 82184-52820 |
NCP16#,NHP160..U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 82184-52850 |
NCP16#,NHP160..U,UL ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-52870 |
NCP16#,NHP160..U,UL ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-52850 |
NCP16#,NHP160,NSP160..F,GL ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-52850 |
NCP16#,NHP160..TX,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-52820 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52050 |
NCP16#,NHP160..SUCD |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-52050 |
NCP16#,NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

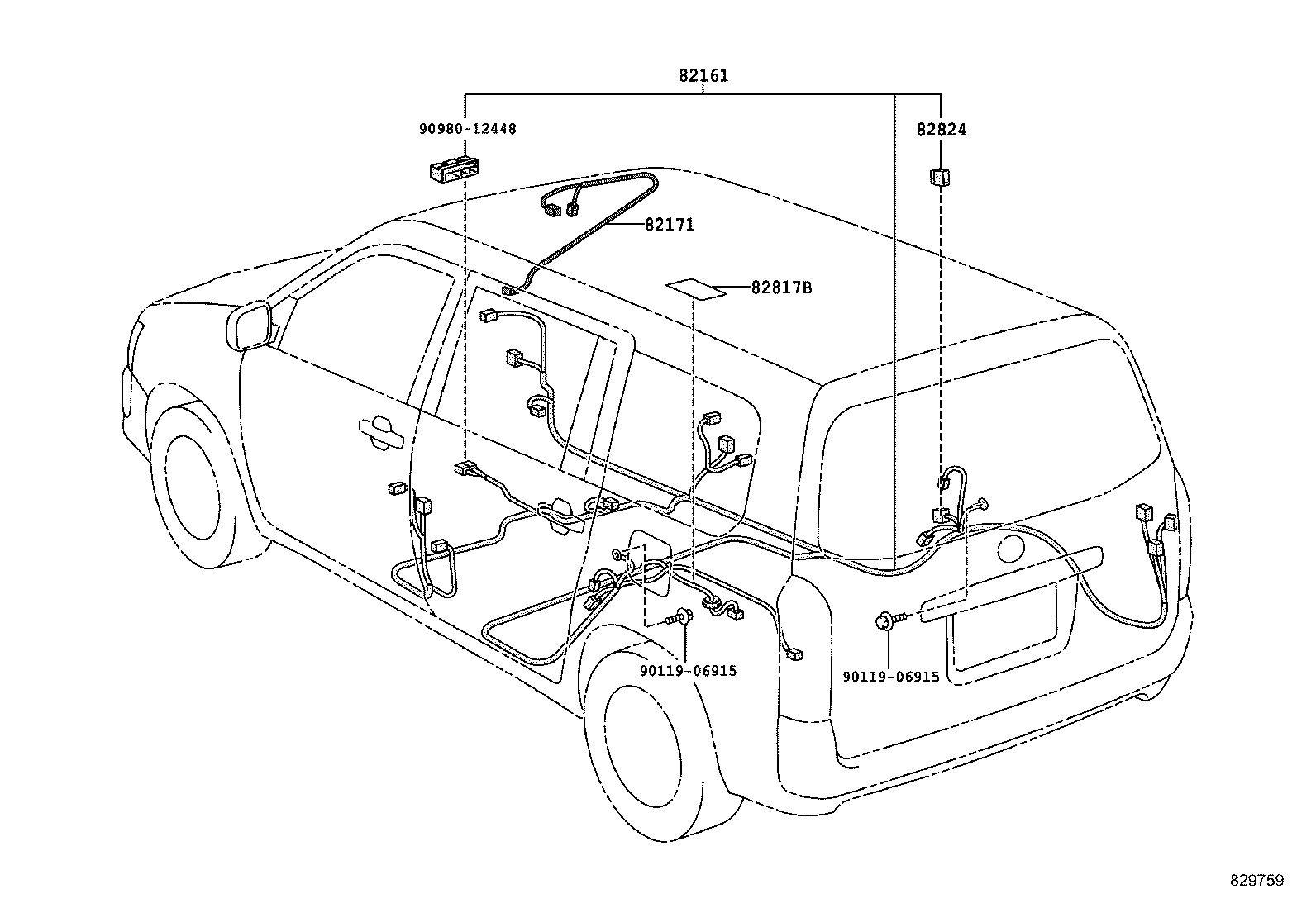

ILLUST NO. 5 OF10(1409- )NCP16#,NSP160
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-5CS70 |
NCP16#,NSP160..DX,U |
1 | ||
| 82161-5CS90 |
NCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82161-5DC80 |
NCP16#,NSP160..DXCOM,GL,UL,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82161-5CS90 |
NCP16#..F,TX |
1 | ||
| 82161-5DC81 |
NCP16#..UL,ULX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82161-5CS80 |
NCP16#,NSP160..DXCOM,GL,UL,ULX |
1 | ||
| 82161-5DC61 |
NCP16#..U |
1 | ||
| 82161-5DC80 |
NCP16#..F,TX |
1 | ||
| 82161-5DC71 |
NCP16#..UL,ULX |
1 | ||
| 82161-5DC70 |
NCP16#,NSP160..DXCOM,GL,UL,ULX |
1 | ||
| 82161-5DC60 |
NCP16#,NSP160..DX,U |
1 | ||
| 82161-5DC81 |
NCP16#..F |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52841 |
NCP16#,NHP160..SUCD ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82171-52680 |
NCP16#,NSP160 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82171-52831 |
NCP16#,NHP160..SUCD |
1 | ||
| 82171-52670 |
NCP16#,NSP160 |
1 | ||
| 82171-52830 |
NCP16#,NSP160 |
1 | ||
| 82171-52810 |
NCP16#,NHP160..SUCD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82171-52820 |
NCP16#,NHP160..SUCD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82171-52840 |
NCP16#,NSP160 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
NCP16#..SUCD |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
NCP16#,NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90980-12448 | ||||

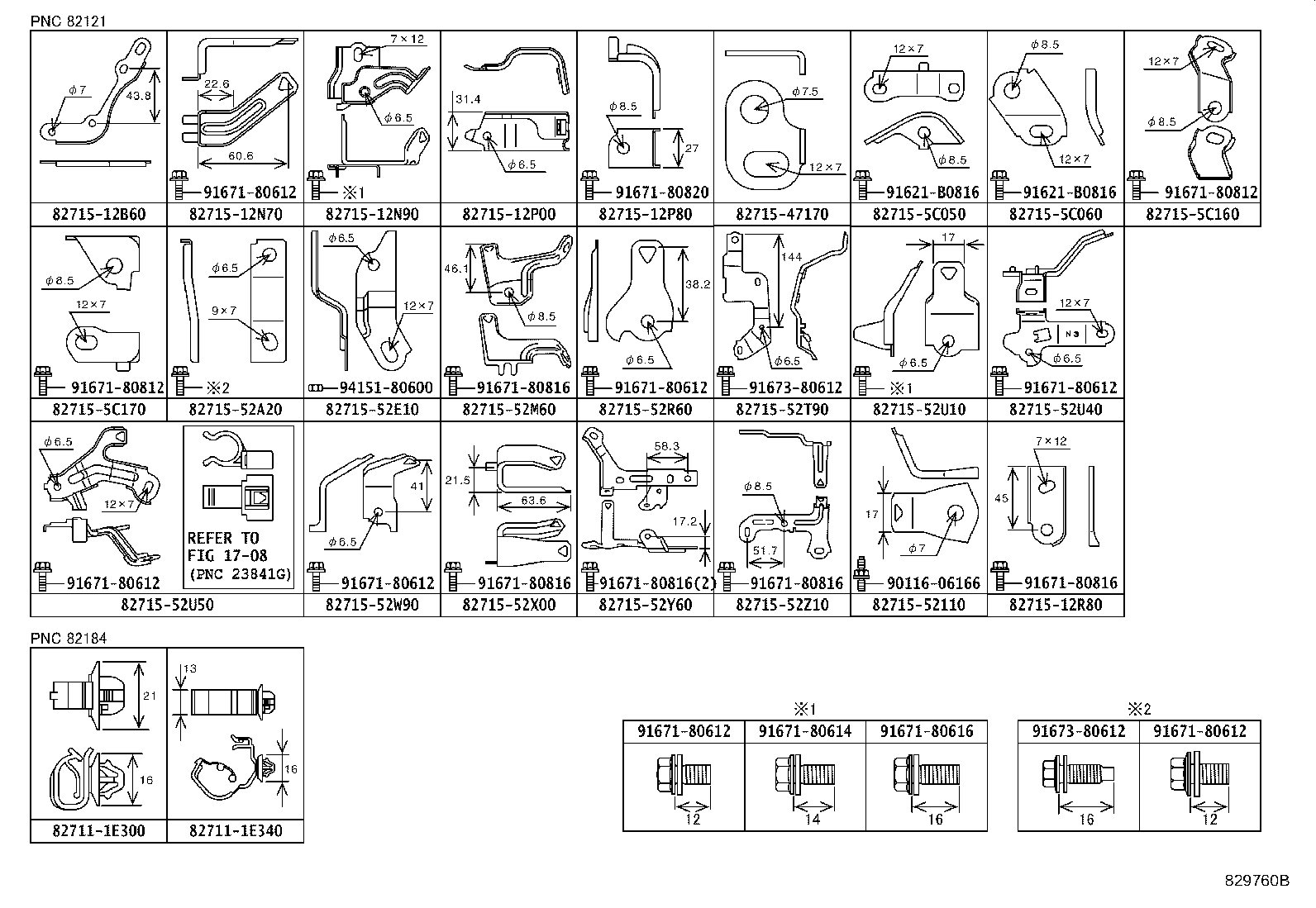

ILLUST NO. 7 OF10(1409- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E300 | ||||
| 82711-1E340 | ||||
| 82715-12B60 | ||||
| 82715-12N70 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P80 | ||||
| 82715-12R80 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52A20 | ||||
| 82715-52E10 | ||||
| 82715-52M60 | ||||
| 82715-52R60 | ||||
| 82715-52T90 | ||||
| 82715-52U10 | ||||
| 82715-52U40 | ||||
| 82715-52U50 | ||||
| 82715-52W90 | ||||
| 82715-52X00 | ||||
| 82715-52Y60 | ||||
| 82715-52Z10 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C160 | ||||
| 82715-5C170 | ||||
| 90116-06166 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||

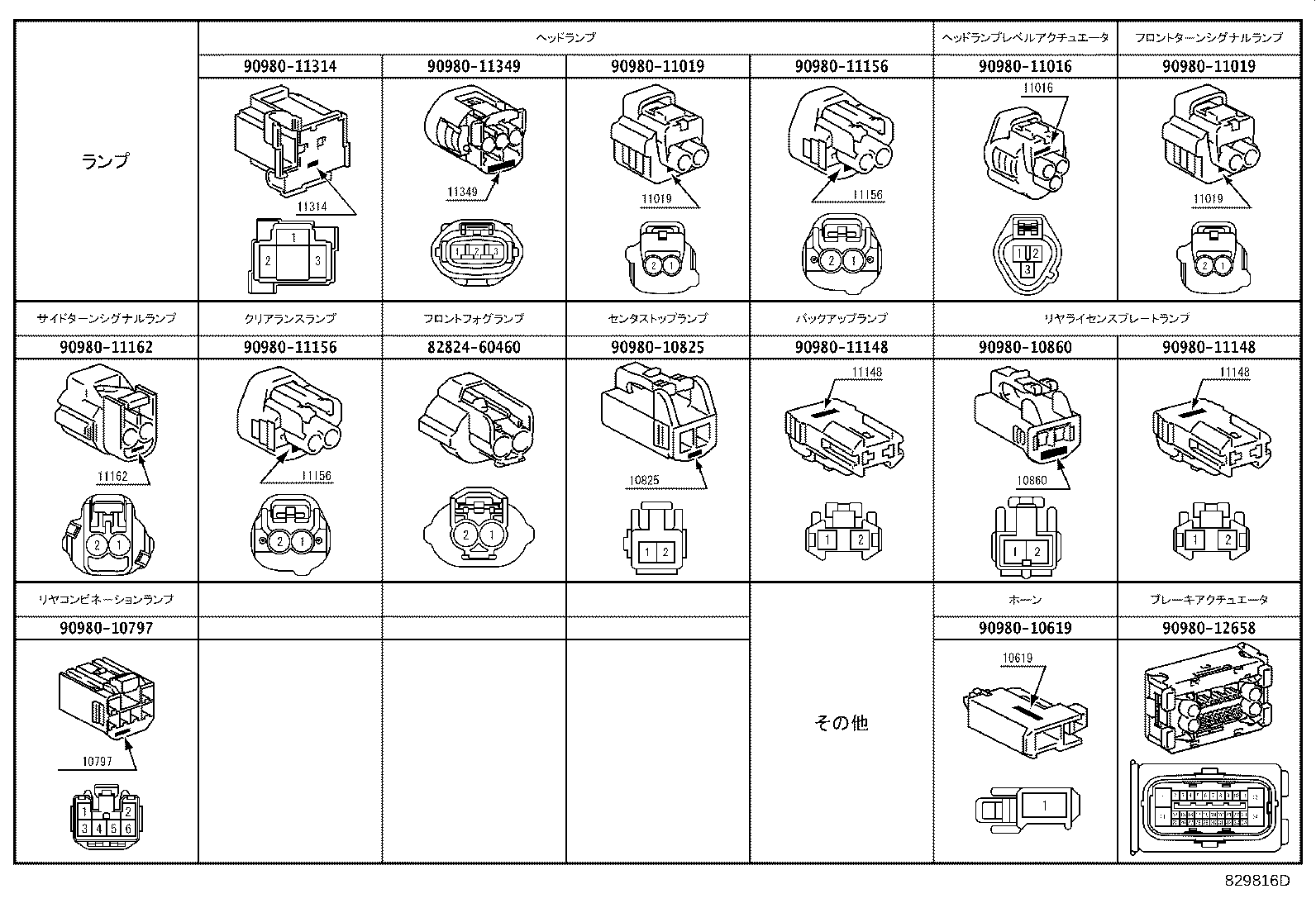

ILLUST NO. 9 OF10(1409- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11349 | ||||
| 90980-12658 | ||||

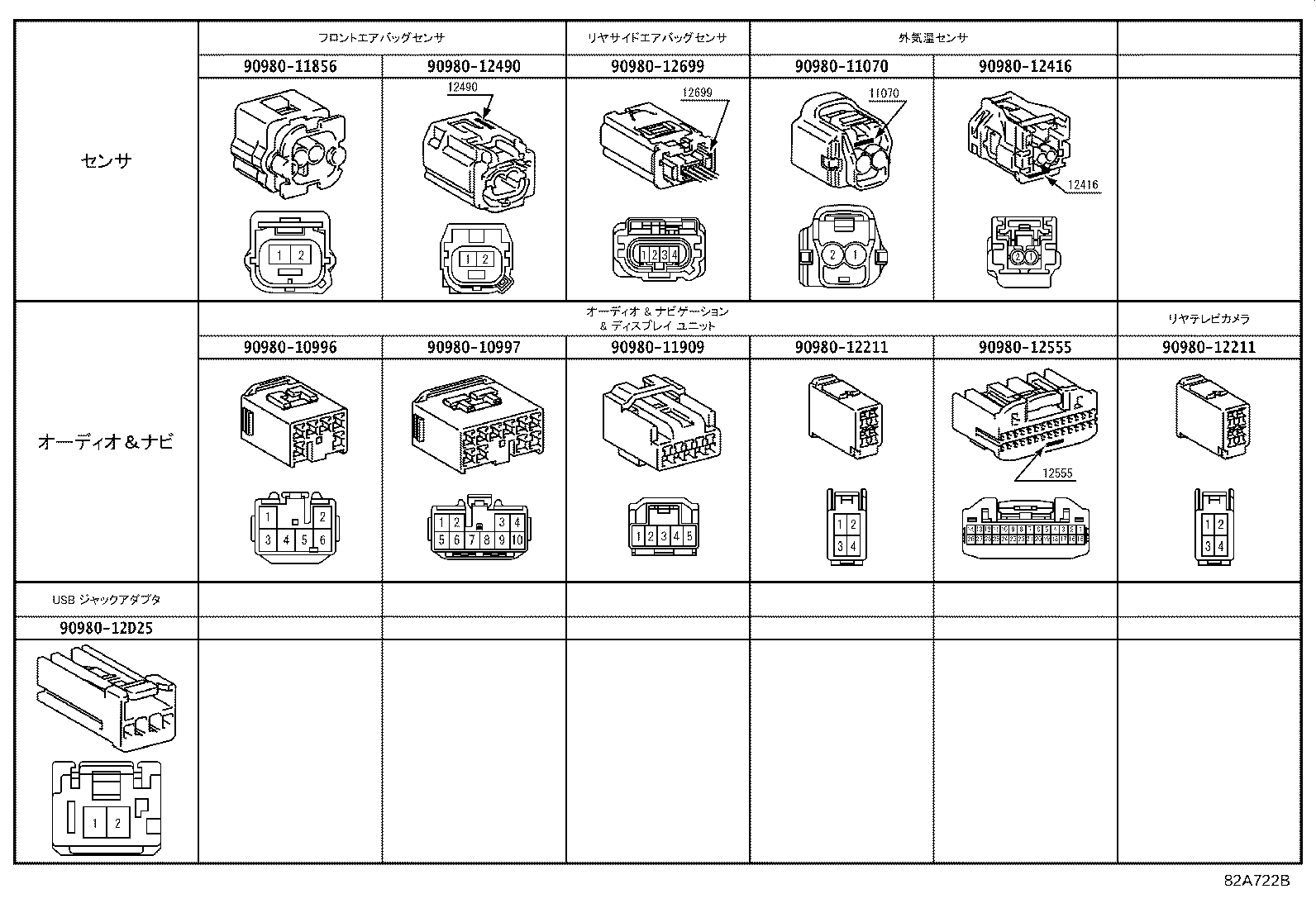

ILLUST NO.10 OF10(1409- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-11909 | ||||
| 90980-12211 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12D25 | ||||

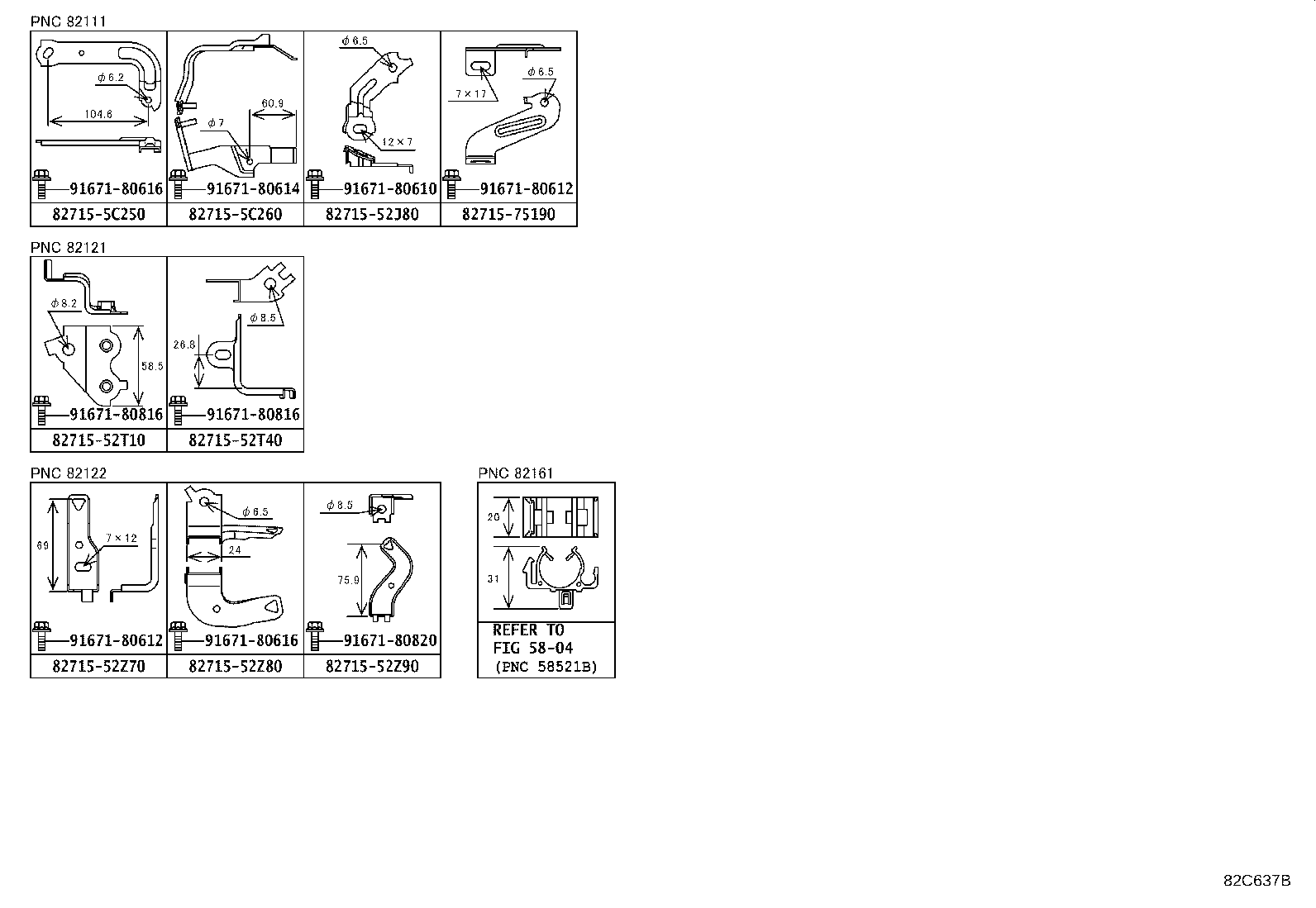

ILLUST NO. 8 OF10(1409- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-52J80 | ||||
| 82715-52T10 | ||||
| 82715-52T40 | ||||
| 82715-52Z70 | ||||
| 82715-52Z80 | ||||
| 82715-52Z90 | ||||
| 82715-5C250 | ||||
| 82715-5C260 | ||||
| 82715-75190 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 5804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
