NCP165V-FXXGK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Jul 2020
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

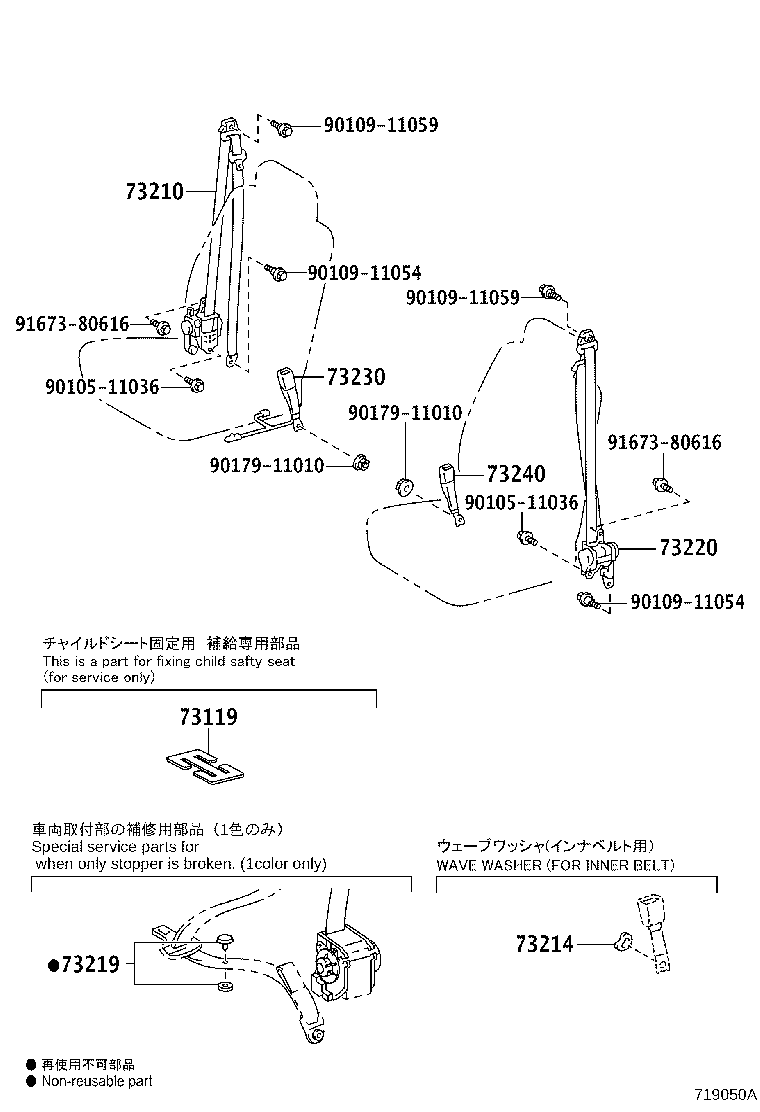

ILLUST NO. 1 OF 2(1409- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 73119 73210 73214 73219 73220 73230 73240 9010511036 9010511036 9010911054 9010911054 9010911059 9010911059 9017911010 9017911010 9167380616 9167380616
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP16#,NHP160..SUCD

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52A00C0

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

NCP16#,NHP160..SUCD

 2
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP16#,NHP160..SUCD

ﾌﾞﾗｯｸ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52A10C0

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52B60C0

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52B71C0

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73230-52B70C0

NCP16#,NSP160

BLACK,TRIM1#

 1
Common parts
90105-11036
90109-11054
90109-11059
90179-11010
91673-80616

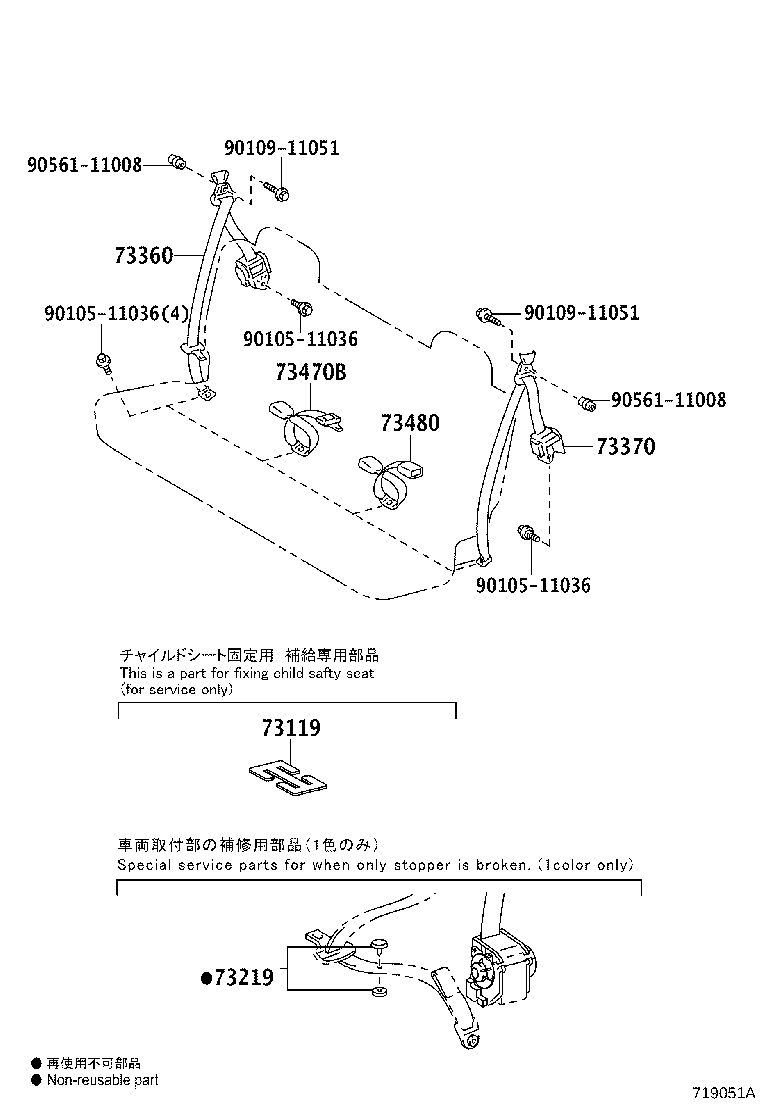

ILLUST NO. 2 OF 2(1409- )

Click highlighted areas on diagram

ﾘﾔ

diagram 73119 73219 73360 73370 73470B 73480 9010511036 9010511036 9010511036 9010911051 9010911051 9056111008 9056111008
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP16#,NHP160..SUCD

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP16#,NHP160..SUCD

ﾌﾞﾗｯｸ

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52440C0

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73360-52440C0

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−保冷ﾊﾞﾝ,BLACK,TRIM1#

 1
73360-52440C0

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ,BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52410C0

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73370-52410C0

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−保冷ﾊﾞﾝ,BLACK,TRIM1#

 1
73370-52410C0

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ,BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52131C2

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73470-52131C2

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ,BLACK,TRIM1#

 1
73470-52131C2

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−保冷ﾊﾞﾝ,BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52150C2

NCP16#,NHP160..SUCD

BLACK,TRIM1#

 1
73480-52150C2

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−ｸｰﾘﾝｸﾞﾊﾞﾝ,BLACK,TRIM1#

 1
73480-52150C2

NCP16#..UL

特殊用途 ﾊﾟｯｹｰｼﾞ−保冷ﾊﾞﾝ,BLACK,TRIM1#

 1
Common parts
90105-11036
90109-11051
90561-11008
