NCP165V-FXXGK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Jul 2020
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )1NZFE..NCP165

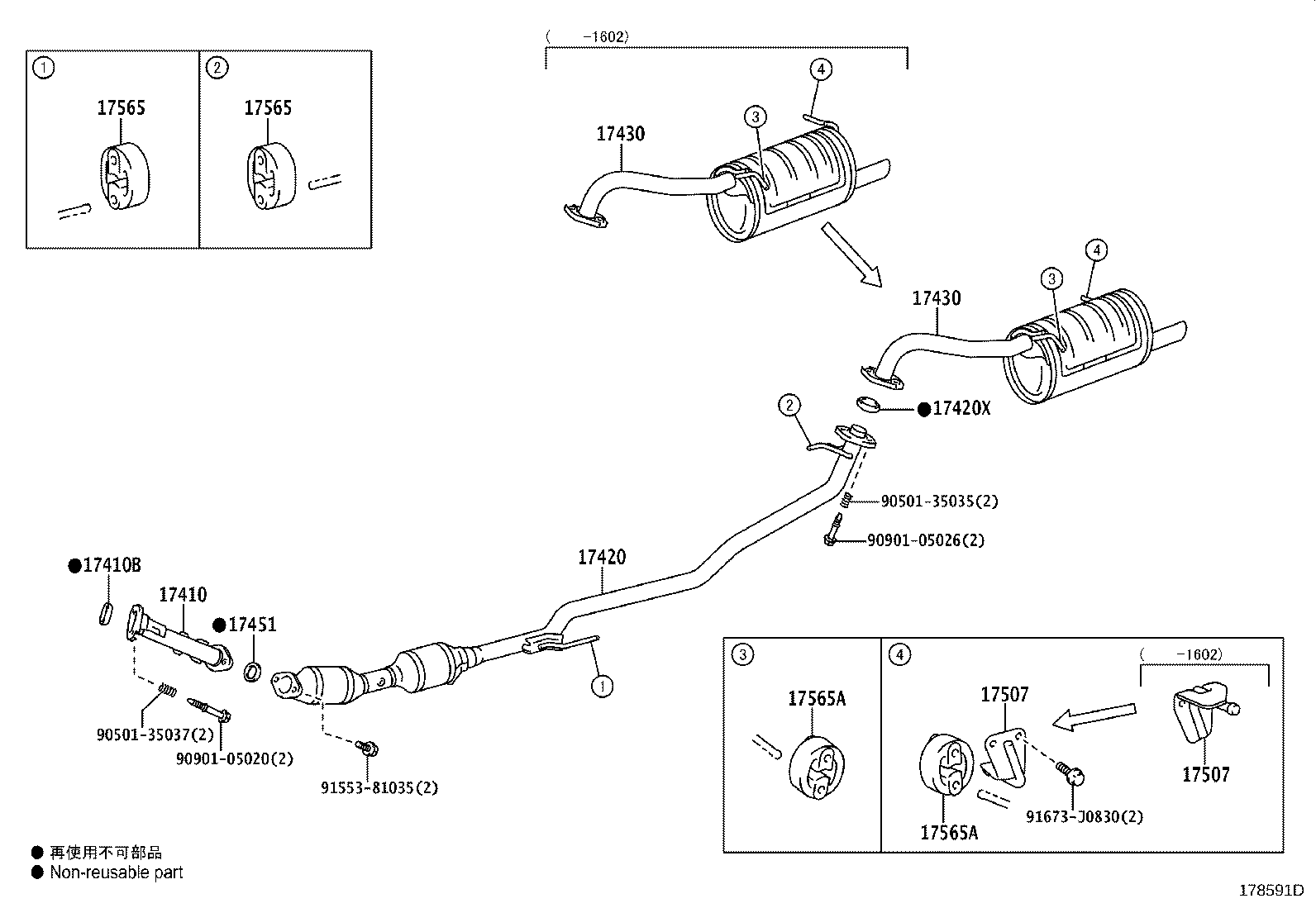

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17430 17451 17507 17507 17565 17565 17565A 17565A 9050135035 9050135037 9090105020 9090105026 9155381035 91673J0830
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21840

1NZFE..NCP165..SUCD

 1
17410B - GASKET, EXHAUST PIPE
17451-21070

1NZ#..NCP16#,NHP160..SUCD

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-21360

1NZFE..NCP165..SUCD

 1
17420-21340

1NZFE..NCP165

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-23042

1NZFE..NCP165..SUCD

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21A82

1NZFE..NCP16#..SUCD

 1
17430-21A80

1N#..NCP165,NSP160

 1
17430-21A81

1N#..NCP16#,NSP160

 1
17430-21A40

1N#..NCP165,NSP160

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21A82

1NZFE..NCP16#..SUCD

 1
17430-21A80

1N#..NCP165,NSP160

 1
17430-21A81

1N#..NCP16#,NSP160

 1
17430-21A40

1N#..NCP165,NSP160

 1
17451 - GASKET, EXHAUST PIPE
90917-06089

1NZFE..NCP165..SUCD

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-21021

1N#..NCP165,NSP160

 1
17507-21030

1NZFE..NCP165..SUCD

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-21021

1N#..NCP165,NSP160

 1
17507-21030

1NZFE..NCP165..SUCD

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFE..NCP165..SUCD

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFE..NCP165..SUCD

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1NZ#..NCP16#,NHP160..SUCD

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1NZ#..NCP16#,NHP160..SUCD

 2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91553-81035
91673-J0830
