NCP165V-FXXDK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Jul 2020
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

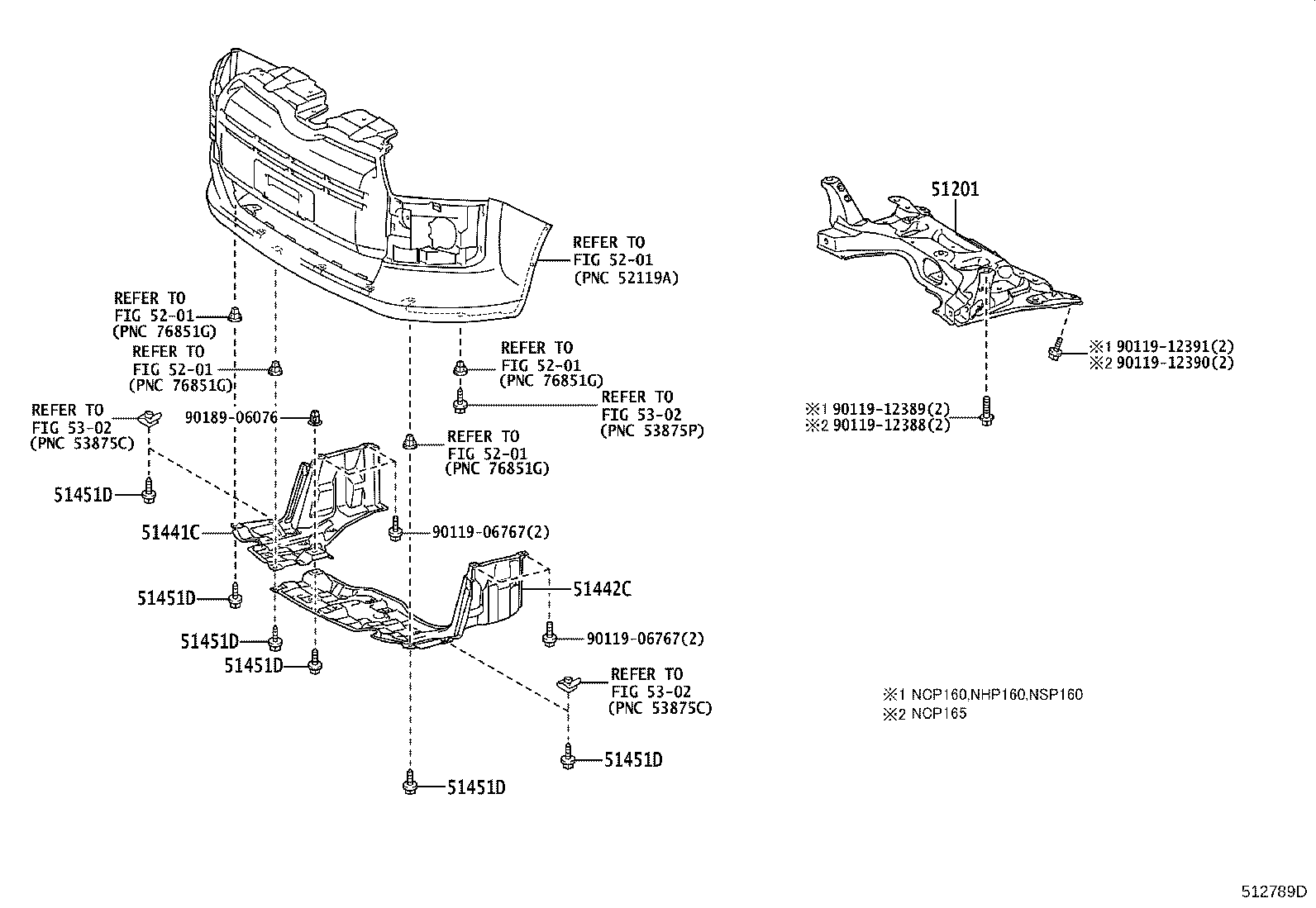

Click highlighted areas on diagram

diagram 51201 51441C 51442C 51451D 51451D 51451D 51451D 51451D 51451D 5201 5201 5201 5201 5201 5302 5302 5302 9011906767 9011906767 9011912388 9011912389 9011912390 9011912391 9018906076
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52107

NCP165

 1
51441C - COVER, ENGINE UNDER, RH
51441-52330

NCP16#,NHP160..SUCD

 1
51442C - COVER, ENGINE UNDER, LH
51442-52160

NCP16#,NHP160..SUCD

 1
51451D - SCREW, NO.1
90159-60383

NCP16#,NHP160..SUCD

 6
51451D - SCREW, NO.1
90159-60383

NCP16#,NHP160..SUCD

 6
51451D - SCREW, NO.1
90159-60383

NCP16#,NHP160..SUCD

 6
51451D - SCREW, NO.1
90159-60383

NCP16#,NHP160..SUCD

 6
51451D - SCREW, NO.1
90159-60383

NCP16#,NHP160..SUCD

 6
51451D - SCREW, NO.1
90159-60383

NCP16#,NHP160..SUCD

 6
Common parts
90119-06767
90119-12388
90119-12389
90119-12390
90119-12391
90189-06076
Linked diagrams
5201
5302
