NCP165V-FXXCK (2014)
Toyota Probox/Succeed

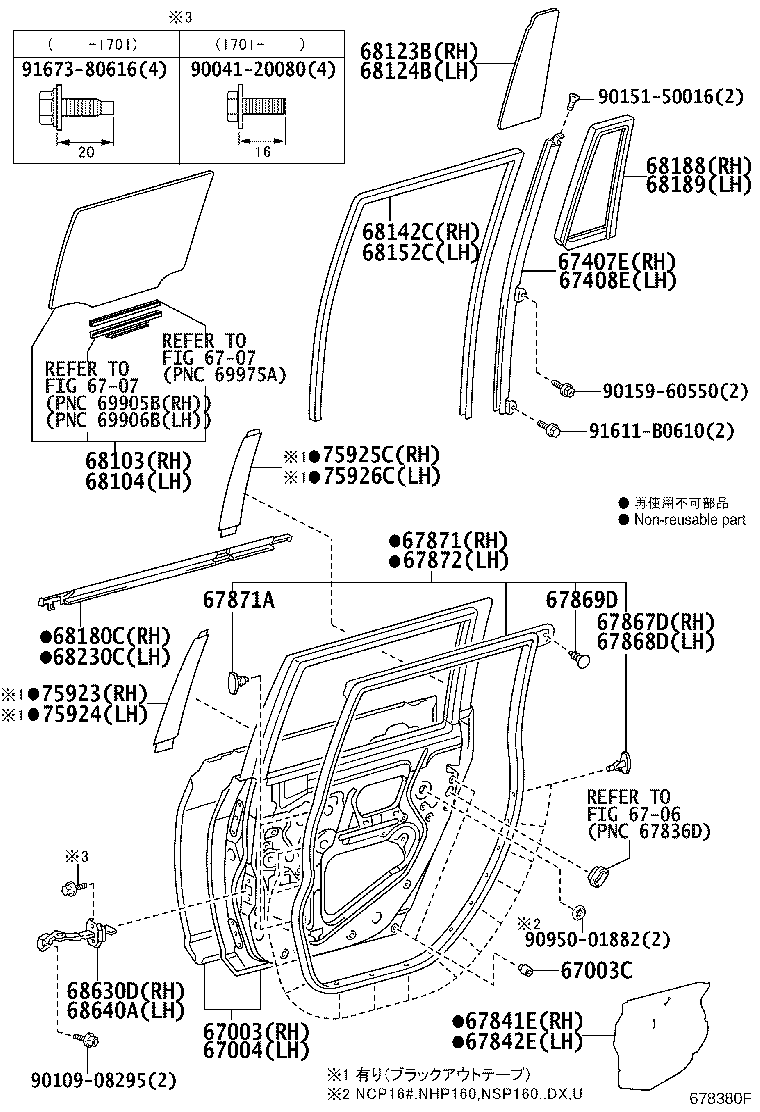

ILLUST NO. 1 OF 2(1409- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52440 |
NCP16#,NHP160..U |
1 | ||
| 67003-52560 |
NCP16#,NHP160..TX,UL,ULX |
1 | ||
| 67003-52560 |
NCP16#,NHP160,NSP160..DXCOM,F,GL |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
NCP16#,NHP160..SUCD |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-52590 |
NCP16#,NHP160,NSP160..DXCOM,F,GL |
1 | ||
| 67004-52580 |
NCP16#,NHP160..U |
1 | ||
| 67004-52590 |
NCP16#,NHP160..TX,UL,ULX |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52060 |
NCP16#,NHP160..SUCD |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-52060 |
NCP16#,NHP160..SUCD |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52090 |
NCP16#,NHP160..SUCD |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-52090 |
NCP16#,NHP160..SUCD |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP16#,NHP160..SUCD |
14 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP16#,NHP160..SUCD |
14 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-05159 |
NCP16#,NHP160..SUCD |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-32060 |
NCP16#,NHP160..SUCD |
4 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-52080 |
NCP16#,NHP160..SUCD |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-52151 |
NCP16#,NHP160..U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68130-52150 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 68130-52151 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 68130-52290 |
NCP16#,NSP160..DX,DXCOM,U,UL |
1 | ||
| 68130-52291 |
NCP16#,NHP160..U,UL |
1 | ||
| 68130-52150 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-52150 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68140-52290 |
NCP16#,NSP160..DX,DXCOM,U,UL |
1 | ||
| 68140-52150 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 68140-52291 |
NCP16#,NHP160..U,UL |
1 | ||
| 68140-52151 |
NCP16#,NHP160..U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68140-52151 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-52160 |
NCP16#,NSP160..DX,DXCOM,U,UL |
1 | ||
| 68123-52090 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68123-52090 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 68123-52091 |
NCP16#,NHP160..U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68123-52161 |
NCP16#,NHP160..U,UL |
1 | ||
| 68123-52091 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-52090 |
NCP16#,NSP160..DX,DXCOM,U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68124-52091 |
NCP16#,NHP160..U,UL ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ﾌﾟﾗｲﾊﾞｼ |
1 | ||
| 68124-52160 |
NCP16#,NSP160..DX,DXCOM,U,UL |
1 | ||
| 68124-52090 |
NCP16#,NSP160..F,GL,TX,ULX |
1 | ||
| 68124-52091 |
NCP16#,NHP160,NSP160..F,GL |
1 | ||
| 68124-52161 |
NCP16#,NHP160..U,UL |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52090 |
NCP16#,NHP160..SUCD |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-52090 |
NCP16#,NHP160..SUCD |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-52061 |
NCP16#,NHP160..SUCD |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-52050 |
NCP16#,NHP160..SUCD |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-52050 |
NCP16#,NHP160..SUCD |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-52061 |
NCP16#,NHP160..SUCD |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52150 |
NCP16#,NHP160..SUCD |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-52110 |
NCP16#,NHP160..SUCD |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-52090C0 |
NCP16#..F,TX;NHP160..F,GL,TX,ULX BLACK,058 ,1E7 ,6U6 ,8P4 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-52090C0 |
NCP16#..F,TX;NHP160..F,GL,TX,ULX BLACK,058 ,1E7 ,6U6 ,8P4 |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-52090C0 |
NCP16#..F,TX;NHP160..F,GL,TX,ULX BLACK,058 ,1E7 ,6U6 ,8P4 |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-52090C0 |
NCP16#..F,TX;NHP160..F,GL,TX,ULX BLACK,058 ,1E7 ,6U6 ,8P4 |
1 | ||
| Common parts | ||||
| 90041-20080 | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90159-60550 | ||||
| 90950-01882 | ||||
| 91611-B0610 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 6707 | ||||

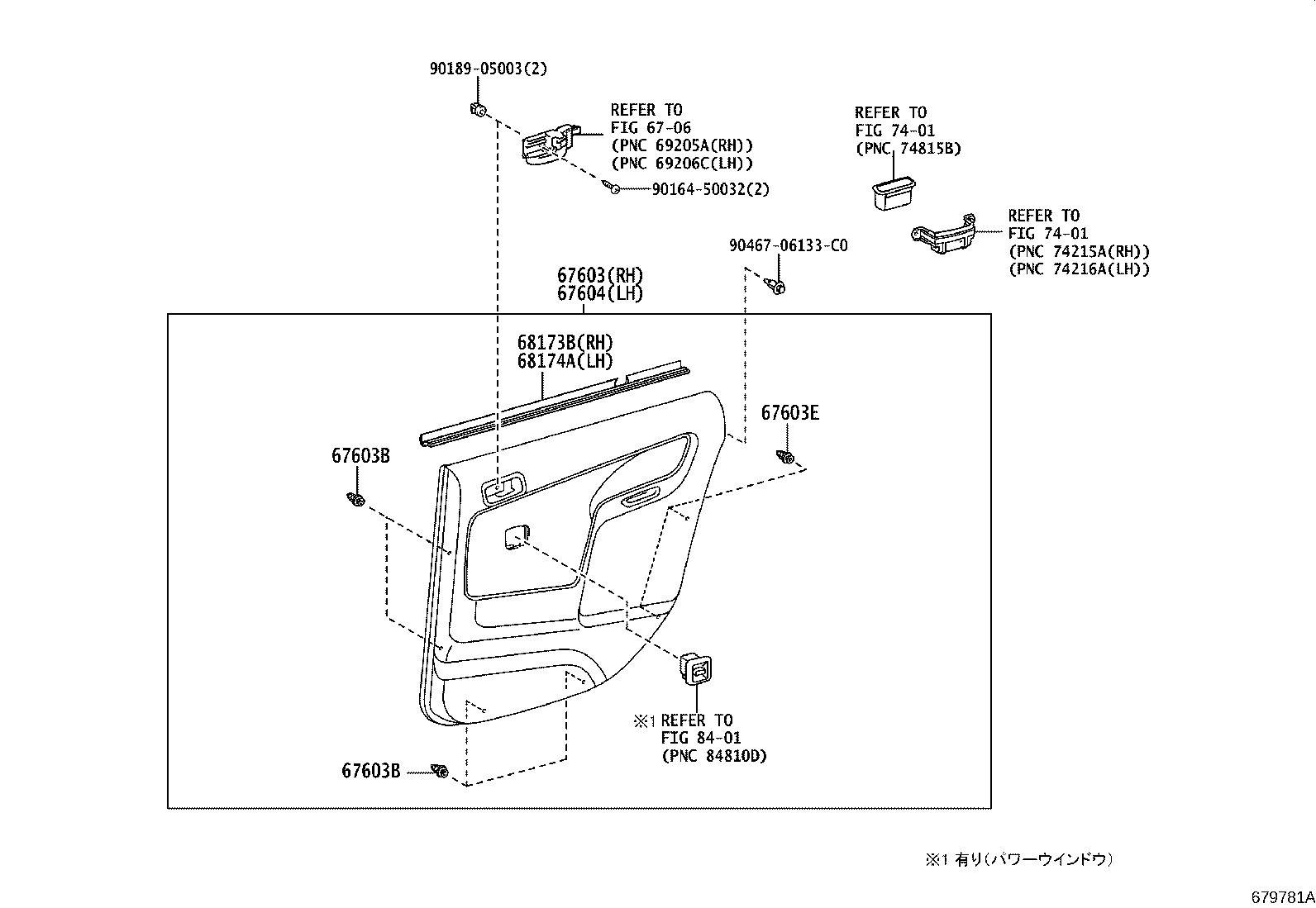

ILLUST NO. 2 OF 2(1409- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52V90C0 |
NCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
1 | ||
| 67630-52W70C0 |
NCP16#,NHP160..F,TX BLACK,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCP16#,NHP160,NSP160 |
8 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCP16#,NHP160,NSP160 |
8 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP16#,NHP160,NSP160 |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-52W10C0 |
NCP16#,NHP160..F,TX BLACK,TRIM1# |
1 | ||
| 67640-52W00C0 |
NCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX BLACK,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-52070 |
NCP16#,NHP160..SUCD |
1 | ||
| Common parts | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90467-06133C0 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
| 8401 | ||||
