NCP165V-FXXCK (2014)
Toyota Probox/Succeed
Production
Sep 2014
-
Jul 2020
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )NCP16#,NSP160

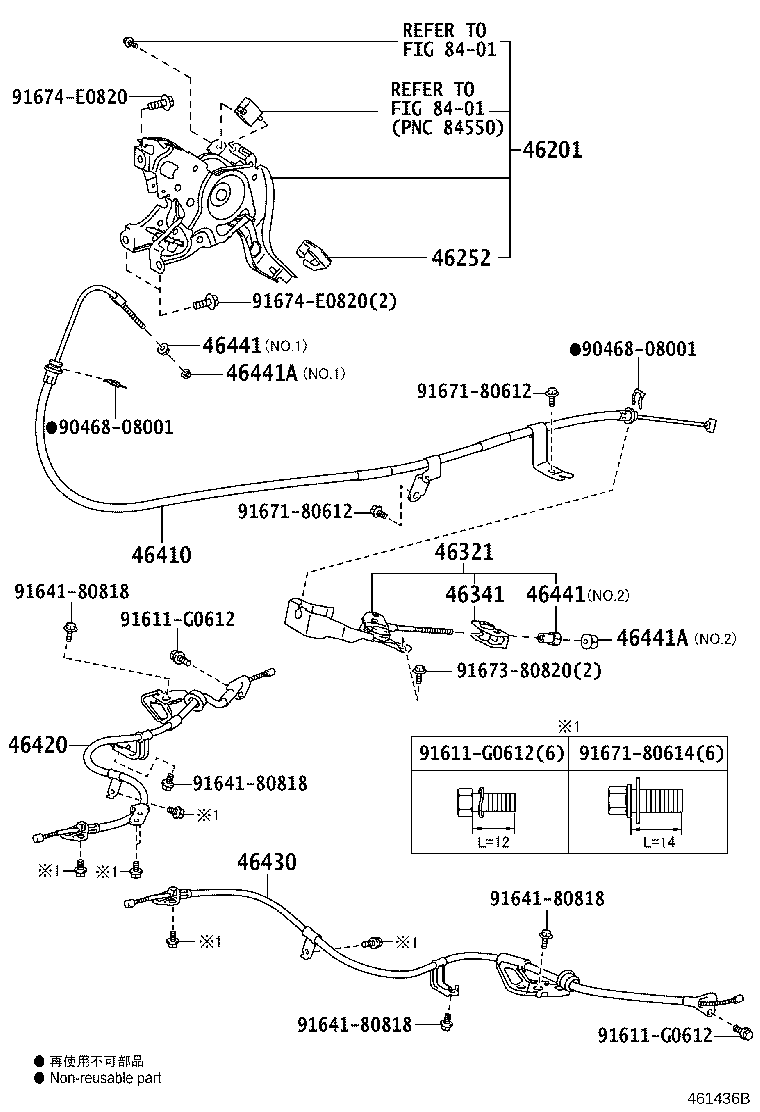

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46250-52010 |
NCP16#,NHP160..SUCD |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-52020 |
NCP16#,NHP160..SUCD |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46320-52050 |
NCP16#..SUCD |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-52030 |
NCP16#..SUCD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-52110 |
NCP16#..SUCD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52441 |
NCP16#..SUCD |
1 | ||
| 46420-52440 |
NCP16#,NSP160 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52441 |
NCP16#..SUCD |
1 | ||
| 46430-52440 |
NCP16#,NSP160 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 46441-52010 |
NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 46441-52010 |
NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 94151-80600 |
NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NCP16#,NHP160..SUCD NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 94151-80600 |
NCP16#,NHP160..SUCD NO.2:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90468-08001 | ||||
| 91611-G0612 | ||||
| 91641-80818 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80820 | ||||
| 91674-E0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
