NCP165V-FXXCK (2014)

Toyota Probox/Succeed

Production Sep 2014 - Jul 2020
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

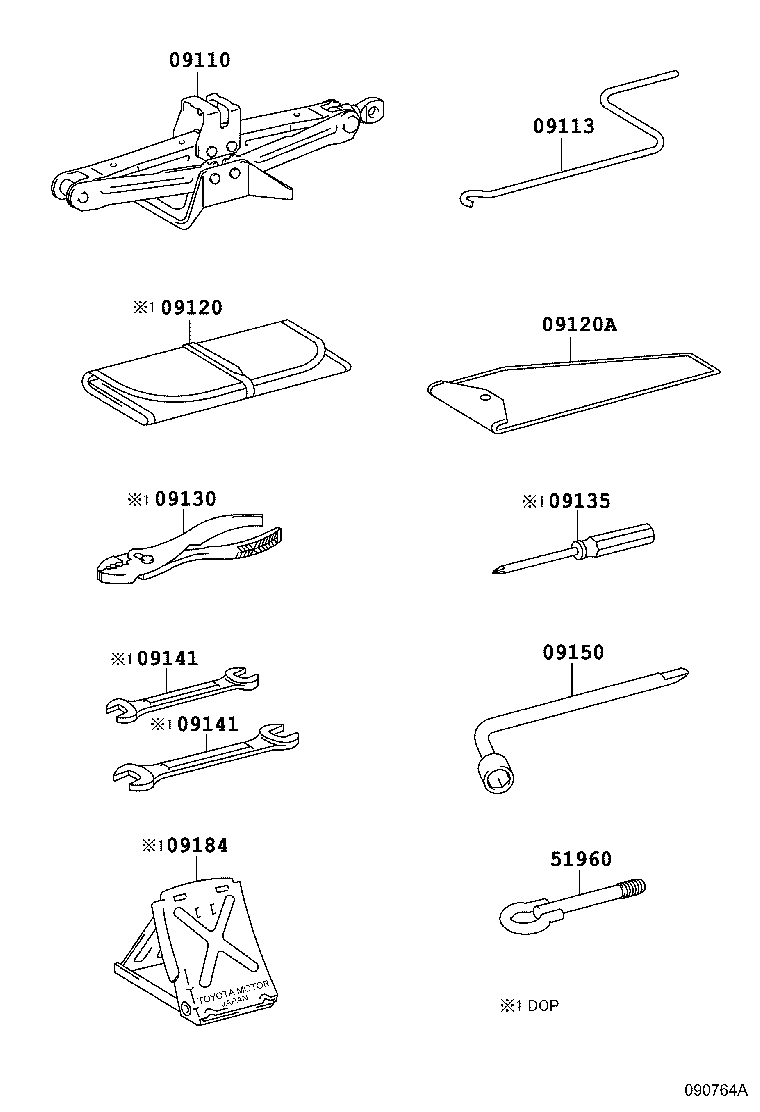

Click highlighted areas on diagram

diagram 09110 09113 09120 09120A 09130 09135 09141 09141 09150 09184 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-52060

NCP16#,NHP160..SUCD

 1
09113 - HANDLE, JACK
09113-52031

NCP16#,NHP160..SUCD

 1
09120 - BAG, TOOL
09120-16030

NCP16#,NHP160..SUCD

ﾂｰﾙ(DOP)−有り

 1
09120A - CASE, TOOL
09120-52070

NCP16#,NHP160..SUCD

 1
09130 - PLIERS
99913-11500

NCP16#,NHP160..SUCD

ﾂｰﾙ(DOP)−有り

 1
09135 - DRIVER, SCREW
99915-10700

NCP16#,NHP160..SUCD

ﾂｰﾙ(DOP)−有り

 1
09141 - SPANNER
99914-11214

NCP16#,NHP160..SUCD

12 X 14,ﾂｰﾙ(DOP)−有り

 1
99914-10810

NCP16#,NHP160..SUCD

8 X 10,ﾂｰﾙ(DOP)−有り

 1
09141 - SPANNER
99914-11214

NCP16#,NHP160..SUCD

12 X 14,ﾂｰﾙ(DOP)−有り

 1
99914-10810

NCP16#,NHP160..SUCD

8 X 10,ﾂｰﾙ(DOP)−有り

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

NCP16#,NHP160..SUCD

 1
09184 - STOPPER, WHEEL
09184-00010

NCP16#,NHP160..SUCD

ﾂｰﾙ(DOP)−有り

 1
51960 - HOOK ASSY, FRONT
51960-52090

NCP16#,NHP160..SUCD

 1
51960-47020

NCP16#,NSP160

 1
